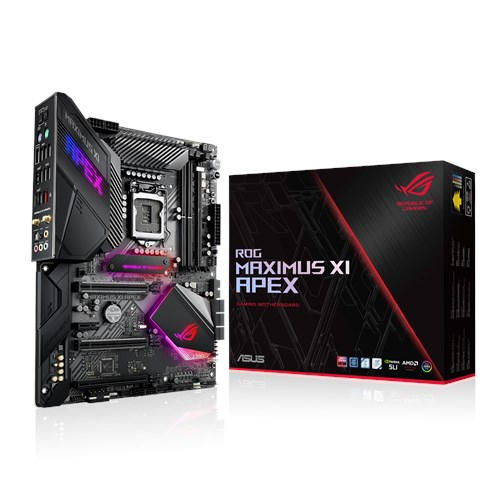

ASUS ROG MAXIMUS XI APEX

ASUS ROG MAXIMUS XI APEX

Model ROG MAXIMUS XI APEXPart no. 90MB0XV0-M0EAY0EAN 192876120682

50 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum resolution4096 x 2304 pixels
  • Audio connectorYes
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum resolution
4096 x 2304 pixels
Audio connector
Yes
USB 2.0 ports quantity
0
Brand
ASUS
Category
Motherboard
Model
ROG MAXIMUS XI APEX
Part number
90MB0XV0-M0EAY0
EAN / UPC
192876120682, 4718017120685
Also known as
ASUS ROG MAXIMUS XI APEX Intel Z390 LGA 1151 (Socket H4) ATX

Specifications

50 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3466,3600,3866,4000,4133,4266,4400,4500,4600,4700 MHz
Maximum internal memory64 GB
Supported memory module capacities2GB, 4GB, 8GB, 16GB, 32GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 3.0, SATA III

Graphics

Maximum resolution4096 x 2304 pixels

Internal I/O

Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
PS/2 ports quantity2
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z390
Audio output channels8.0 channels
Power source typeATX
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots3

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel® Optane™ Memory ReadyYes

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

BIOS switch buttonYes
