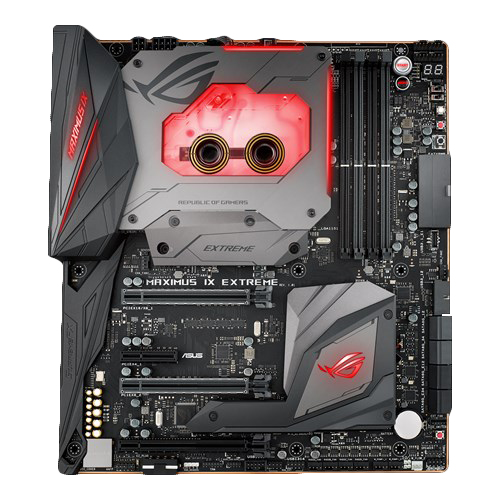

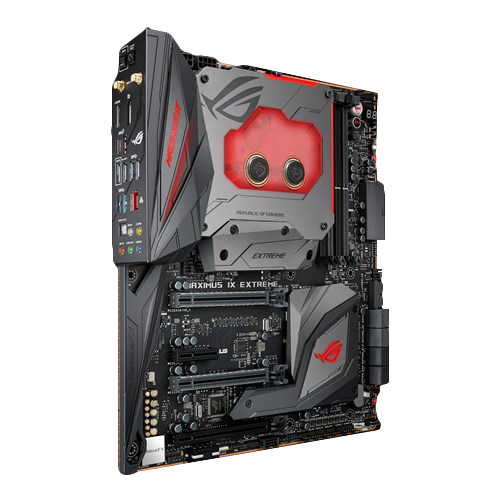

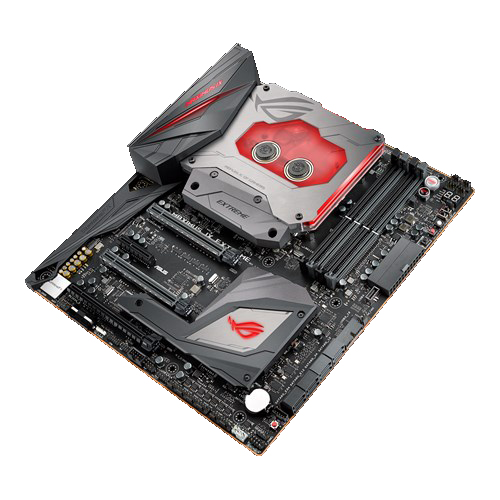

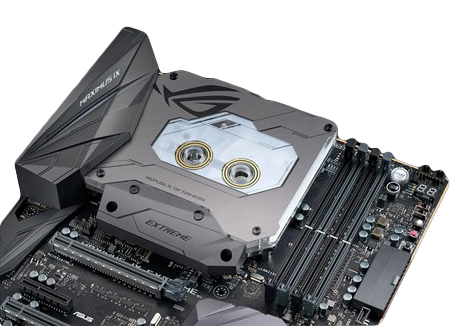

ASUS ROG MAXIMUS IX EXTREME

ASUS ROG MAXIMUS IX EXTREME

Model ROG MAXIMUS IX EXTREMEEAN 889349663714

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support2-Way SLI, 3-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Brand
ASUS
Category
Motherboard
Model
ROG MAXIMUS IX EXTREME
Part numbers
ROG MAXIMUS IX EXTREME, 90MB0SA0-M0UAY0
EAN / UPC
889349663714
Also known as
ASUS ROG MAXIMUS IX EXTREME motherboard Intel® Z270 LGA 1151 (Socket H4) Extended ATX

Specifications

62 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2400,2666,3400,3466,3500,3600,3733,3800,3866,4000,4133 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way CrossFireX
On-board graphics cardYes
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors8
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors2
TPM connectorYes

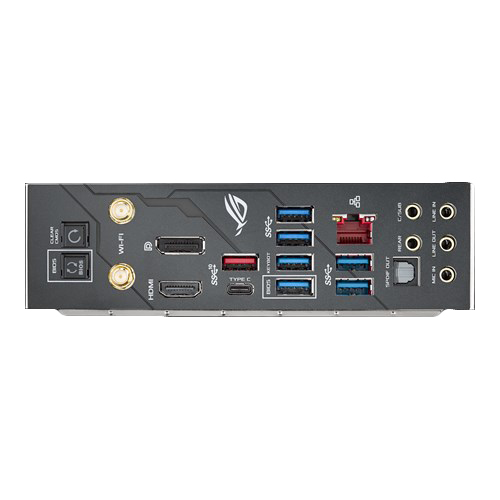

Rear panel I/O ports

USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
LAN controllerIntel® I219-V

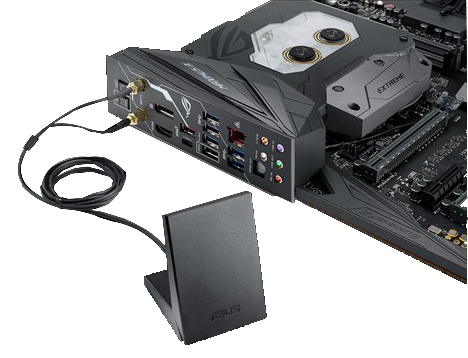

Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.1

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270

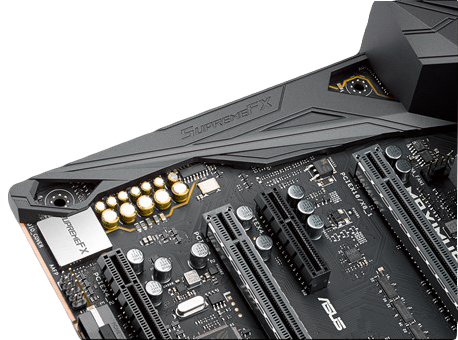

Audio chipRealtek S1220
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Overclocking featuresASUS C.P.R.

Expansion slots

PCI Express x16 (Gen 3.x) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage Technology enterpriseYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width305 mm
Depth272 mm

Packaging content

ManualYes

Other features

PCI Express x4 (Gen 3.x) slots1
