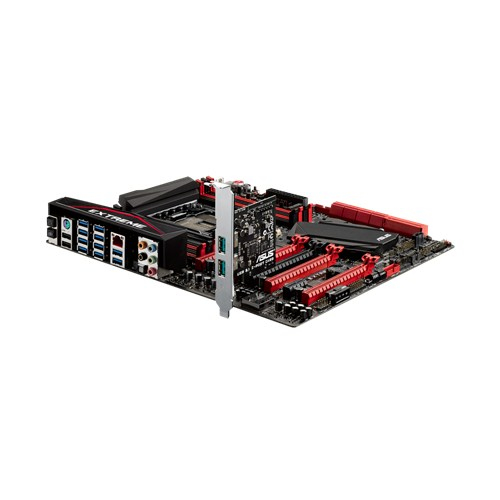

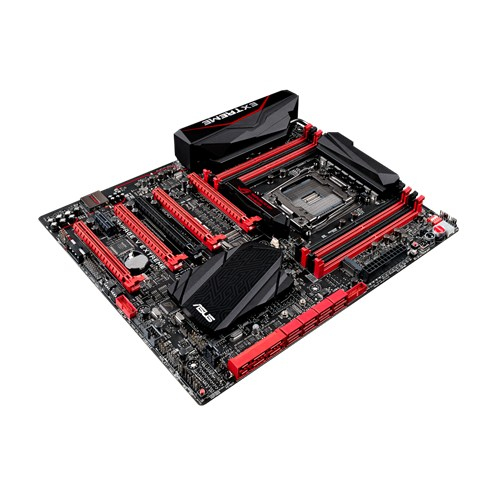

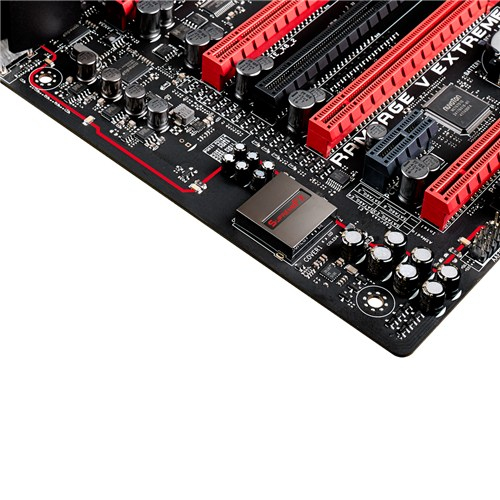

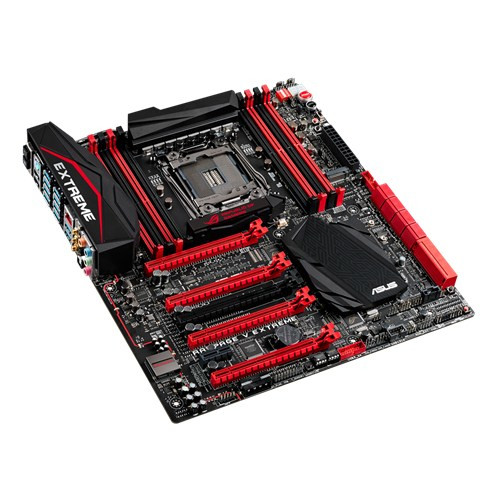

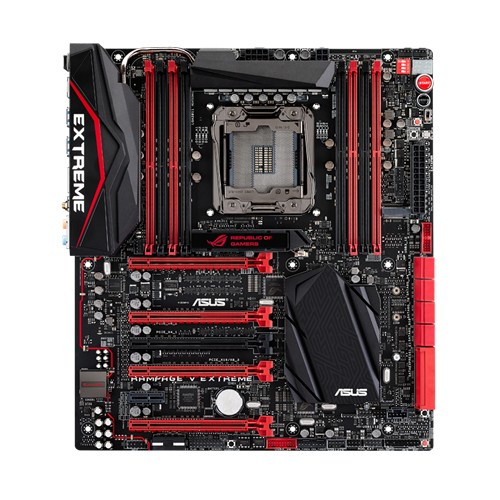

ASUS RAMPAGE V EXTREME/U3.1

ASUS RAMPAGE V EXTREME/U3.1

Model RAMPAGE V EXTREME/U3.1Part no. 90MB0JG1-M0EAY0EAN 8893490026368

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Motherboard form factorExtended ATX
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Motherboard form factor
Extended ATX
Brand
ASUS
Category
Motherboard
Model
RAMPAGE V EXTREME/U3.1
Part number
90MB0JG1-M0EAY0
EAN / UPC
8893490026368, 809395442248, 889349002636, 4053162783898 +2 more
Also known as
ASUS RAMPAGE V EXTREME/U3.1 Intel® X99 LGA 2011-v3 Extended ATX

Specifications

62 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3300 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2

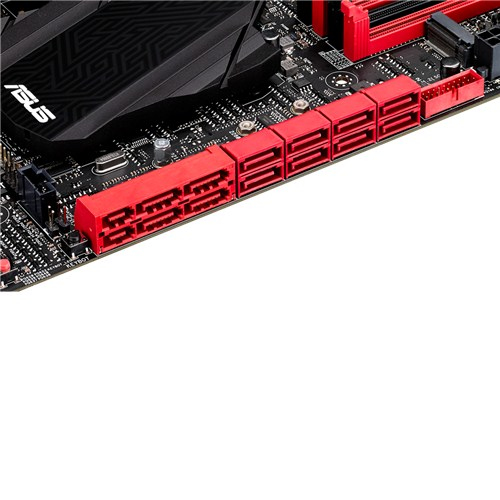

Number of SATA III connectors8
Number of SATA II connectors0
Number of SATA connectors2
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors6
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes

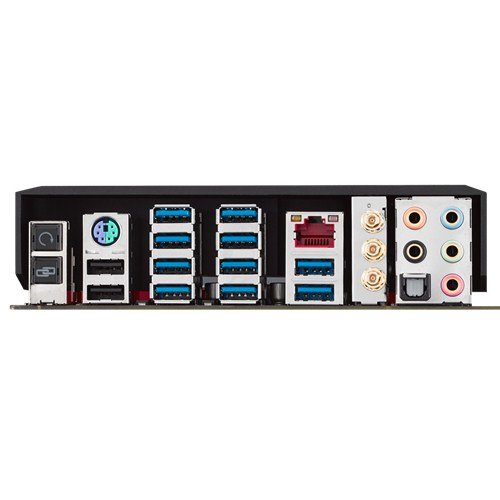

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity10
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I218-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots4

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version5.0
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth272 mm

Packaging content

Drivers includedYes
Bundled softwareROG GameFirst III ROG RAMDisk ROG CPU-Z ROG Mem TweakIt Kaspersky® Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage HomeCloud ASUS Utilities

Other features

BIOS switch buttonYes
