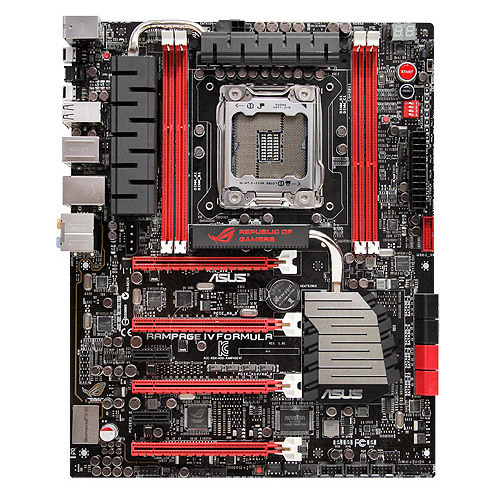

ASUS Rampage IV Formula BATTLEFIELD 3

ASUS Rampage IV Formula BATTLEFIELD 3

Model Rampage IV Formula BATTLEFIELD 3Part no. 90-MIBHI1-G0EAY00Z

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
Rampage IV Formula BATTLEFIELD 3
Part numbers
90-MIBHI1-G0EAY00Z, RAMPAGE IV FORMULA/BF3
Also known as
ASUS Rampage IV Formula BATTLEFIELD 3 LGA 2011 (Socket R) ATX

Specifications

60 specifications in 13 groups

Processor

Processor manufacturerIntel

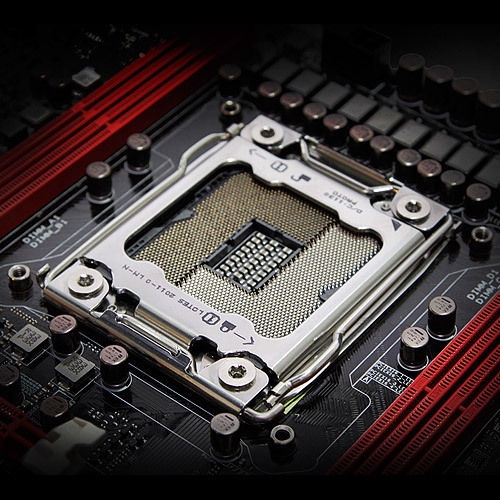

Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7, Intel® Core™ i7 Extreme Edition

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1200,1300,1333,1500,1600,1666,1800,1866,1900,2000,2133,2200,2400 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI, Hybrid CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

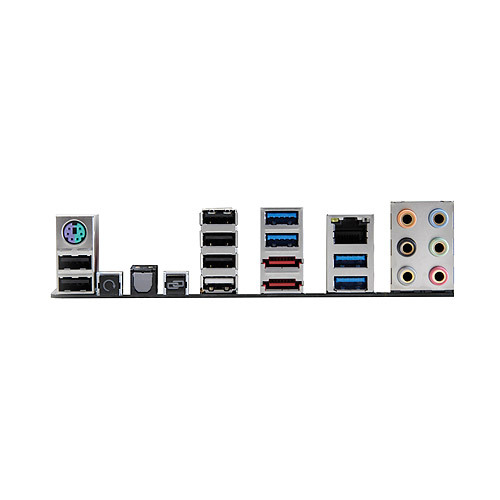

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
Networking features10/100/1000 Mbit/sec

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel

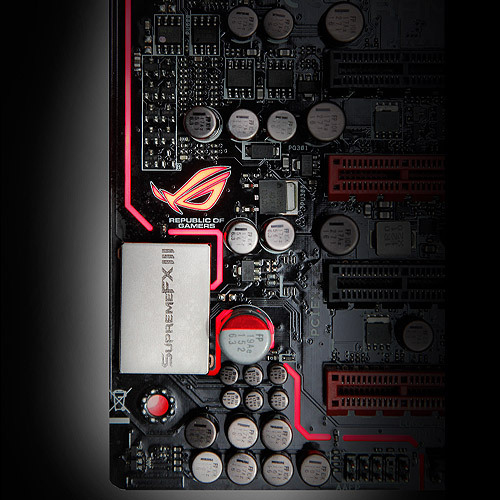

Audio output channels7.1 channels
Power source typeATX

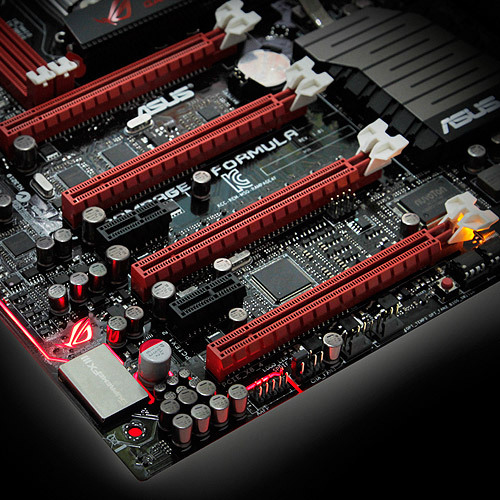

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots4
PCI Express slots version3.0

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

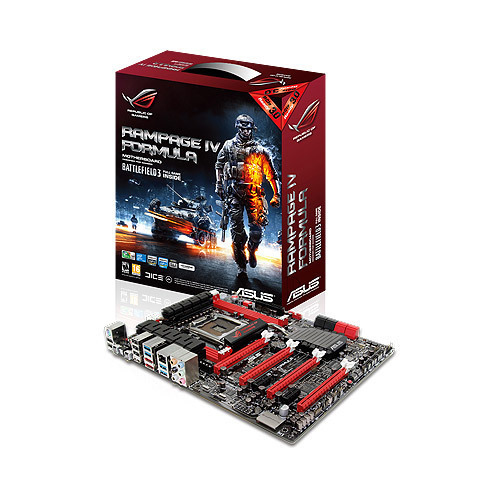

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareBattelfield 3

Other features

EZ plug connectorYes
Quick installation guideYes
Manageability featuresWfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
