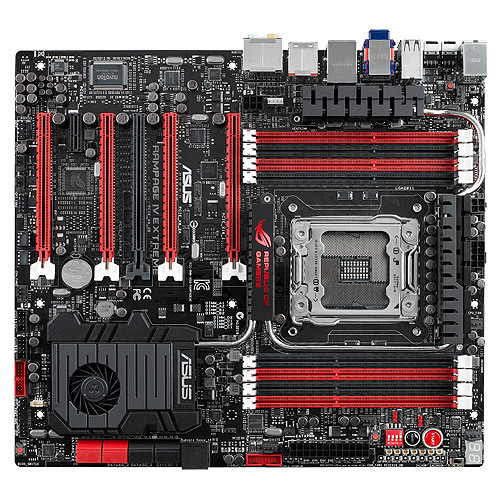

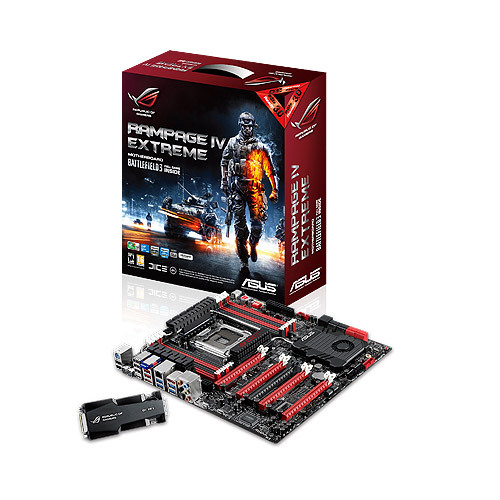

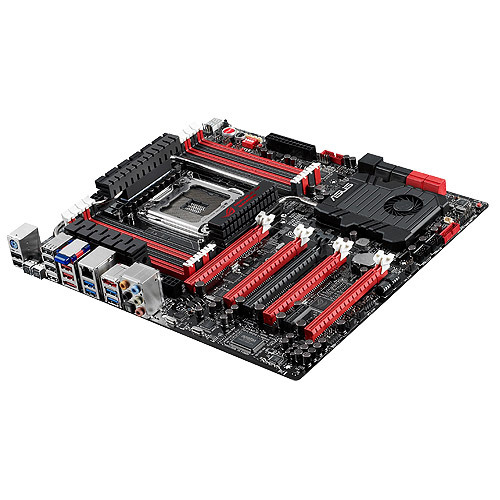

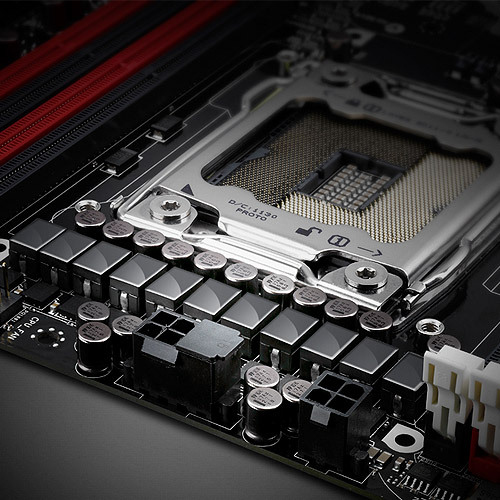

ASUS Rampage IV Extreme/Battlefield 3

ASUS Rampage IV Extreme/Battlefield 3

Model Rampage IV Extreme/Battlefield 3Part no. RMPG-4-EXTR-BF3

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support4-Way SLI, Quad-GPU CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
4-Way SLI, Quad-GPU CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
Rampage IV Extreme/Battlefield 3
Part number
RMPG-4-EXTR-BF3
Also known as
ASUS Rampage IV Extreme/Battlefield 3 LGA 2011 (Socket R) ATX

Specifications

67 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2400 MHz
Maximum internal memory64 GB
Supported memory module capacities8GB

Storage controllers

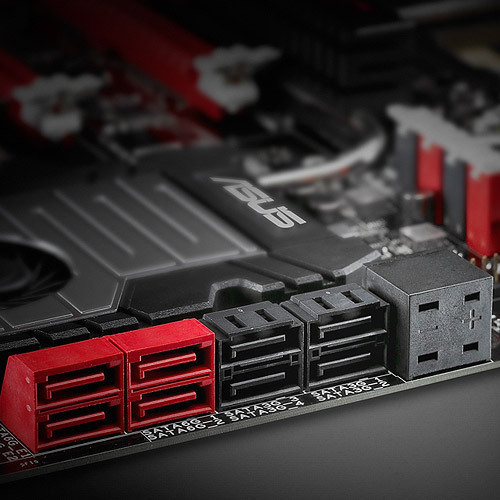

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way SLI, Quad-GPU CrossFireX
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes

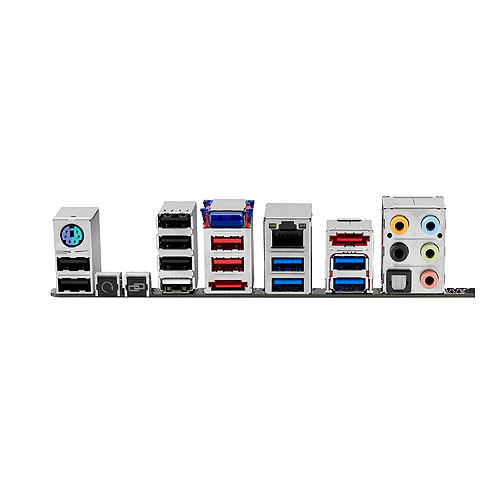

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity4
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
Wi-Fi standardsNot supported
BluetoothYes
Bluetooth version2.1+EDR
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Audio chipRealtek ALC898
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows OS

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots5
PCI Express slots version2.0

BIOS

BIOS typeUEFI
BIOS memory size16 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth272 mm

Other features

PCI Express power connectors (6-pin)1
Controller interface typeSATA
Audio output192KHz, 24-bit
EZ plug connectorYes
Quick installation guideYes
