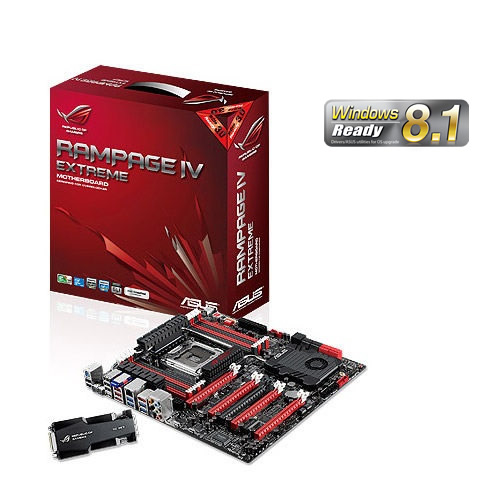

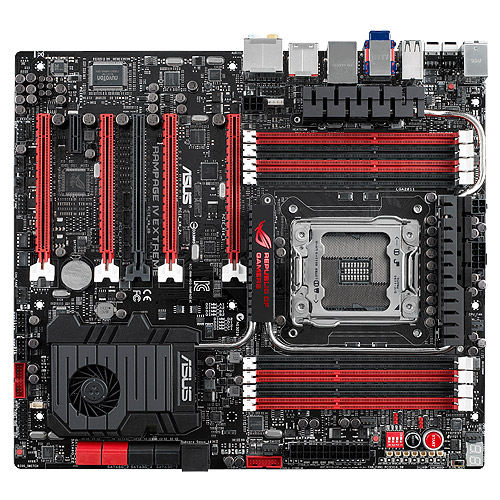

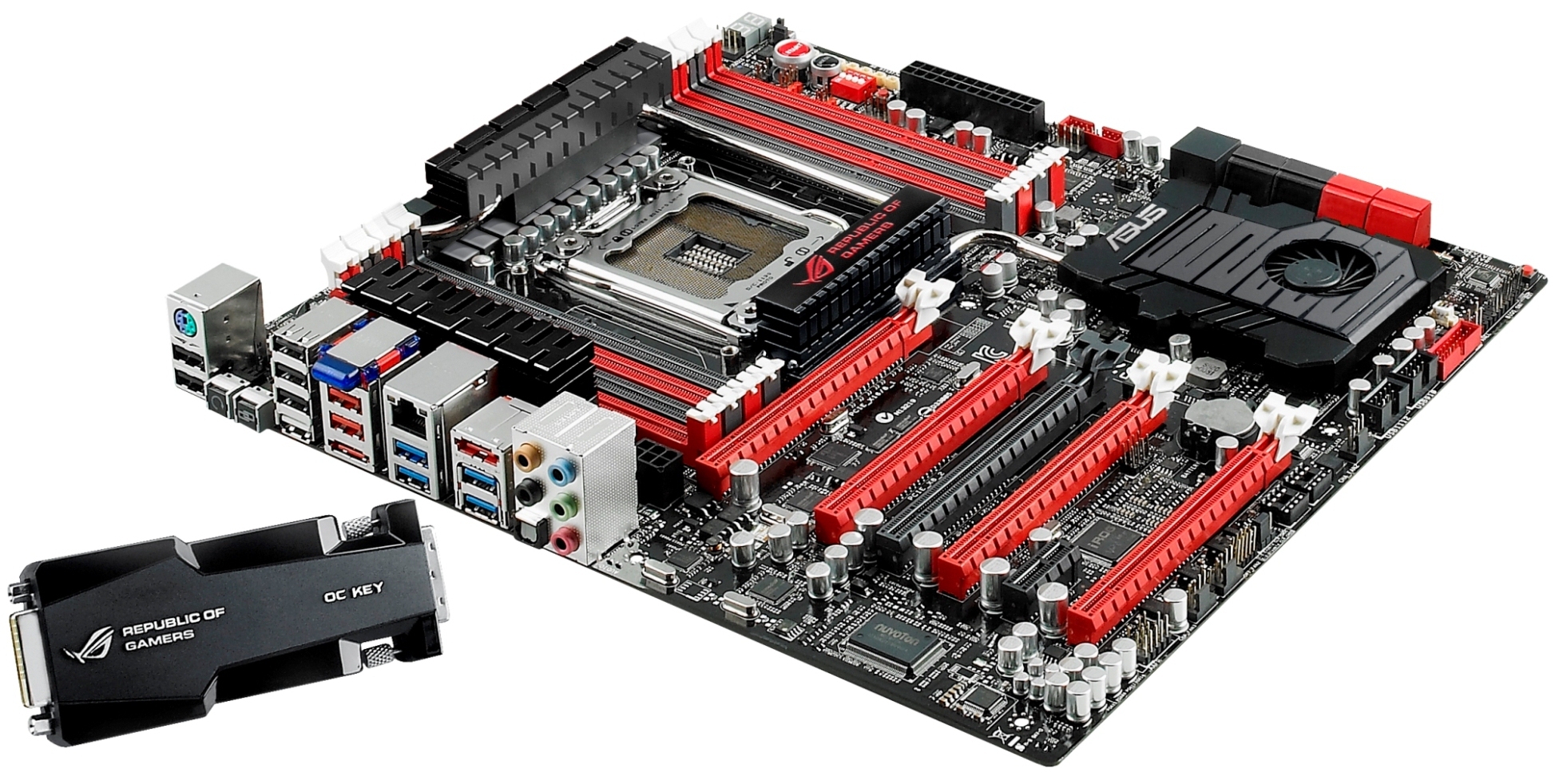

ASUS Rampage IV Extreme

ASUS Rampage IV Extreme

Model Rampage IV ExtremePart no. 90-MIBHF1-G0EAY00ZEAN 6108391845454

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
Rampage IV Extreme
Part numbers
90-MIBHF1-G0EAY00Z, 90-MIBHF0-G0EAY00Z, 90-MIBHF0-G0EAY0KZ
EAN / UPC
6108391845454, 4719543184608, 4719543184547
Also known as
ASUS Rampage IV Extreme LGA 2011 (Socket R) Extended ATX

Specifications

67 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1200,1300,1333,1500,1600,1666,1800,1866,1900,2000,2133,2200,2400 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI, Hybrid CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

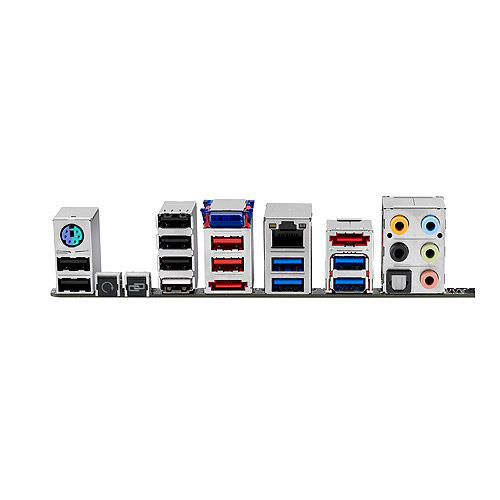

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs5
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
BluetoothYes
Bluetooth version2.1+EDR
Networking features10/100/1000 Mbit/sec

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Audio chipRealtek ALC898
Audio output channels7.1 channels
Cooling typeActive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots5
PCI Express slots version3.0

BIOS

BIOS typeEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth272 mm

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareBattlefield3

Other features

Quick installation guideYes
Manageability featuresWfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
