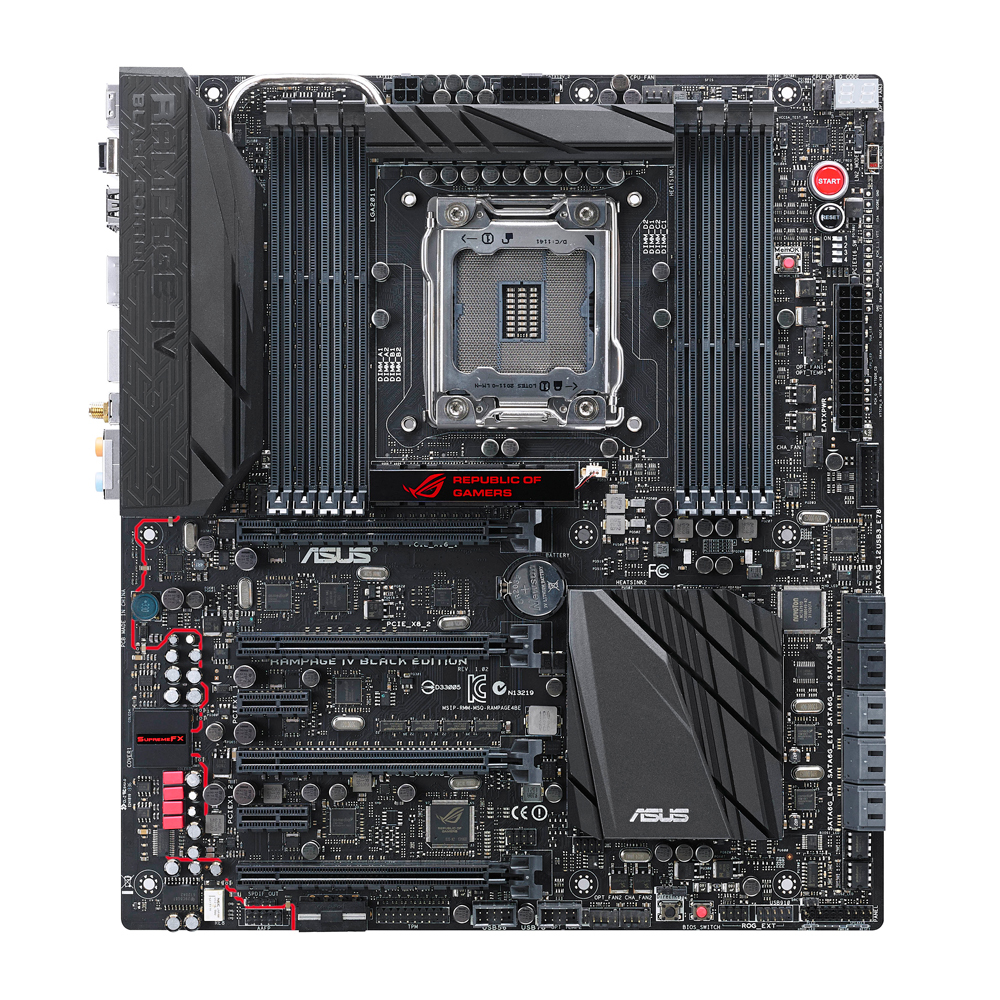

ASUS RAMPAGE IV BLACK EDITION
Model RAMPAGE IV BLACK EDITIONPart no. 90MB0GX1-M0EAY0EAN 886227631674
72 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- RAMPAGE IV BLACK EDITION
- Part number
- 90MB0GX1-M0EAY0
- EAN / UPC
- 886227631674, 4716659631675, 5054230927144, 8862276316740
- Also known as
- ASUS RAMPAGE IV BLACK EDITION Intel X79 LGA 2011 (Socket R) Extended ATX
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |

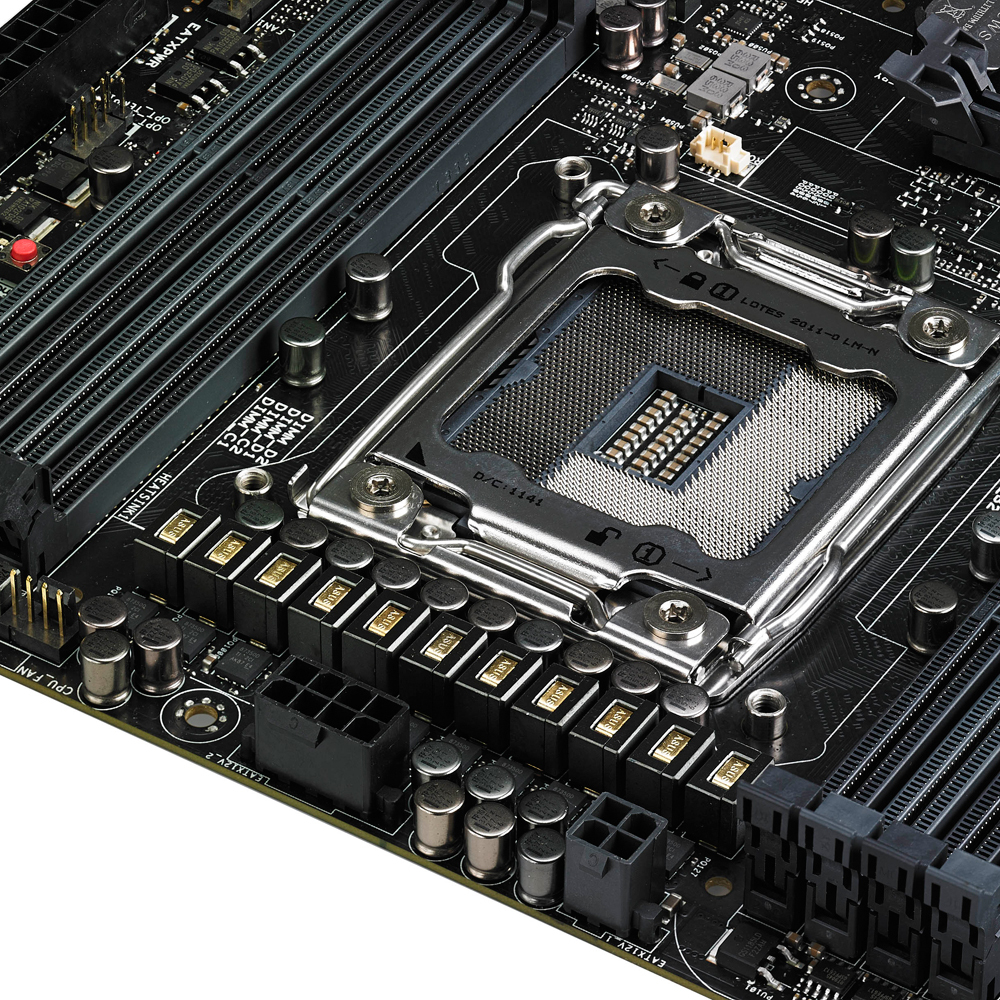

| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2000,2133,2400,2666,2800 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI |
| On-board graphics card | No |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

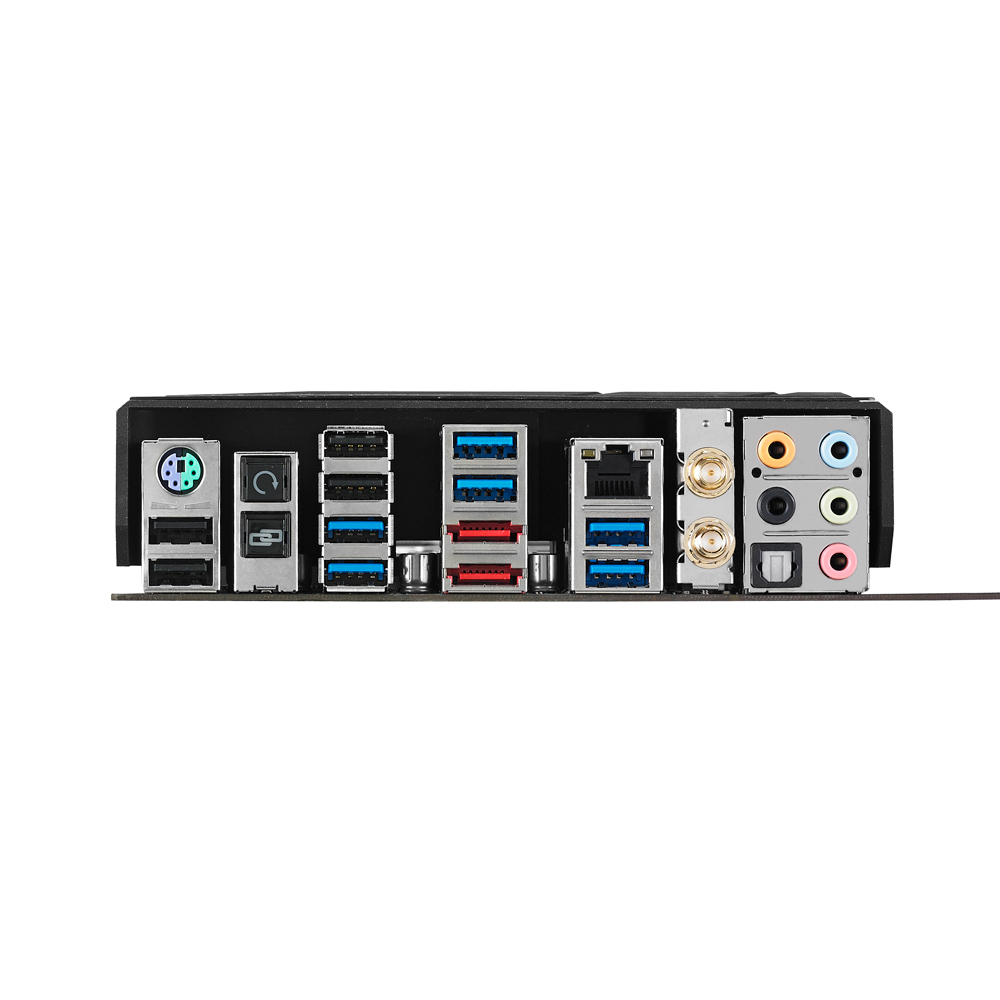

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82579V |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Networking features | 10/100/1000 Mbit/sec |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel X79 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, LED, Power supply, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0a |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 272 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| BIOS switch button | Yes |
| EZ plug connector | Yes |
| Quick installation guide | Yes |
| Manageability features | WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE |
