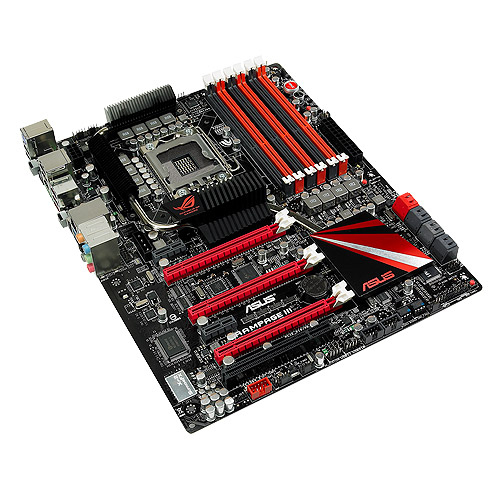

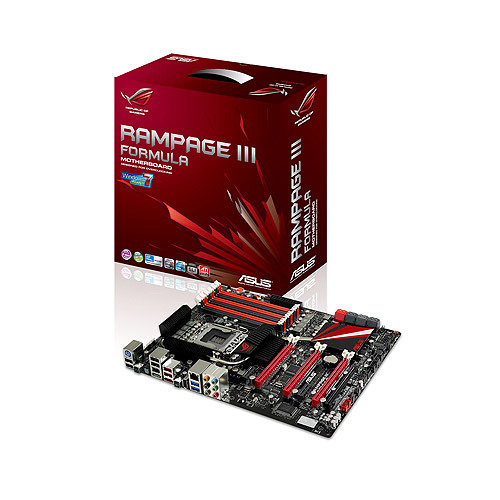

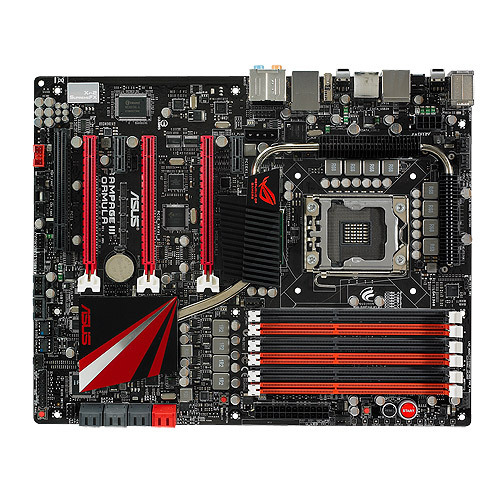

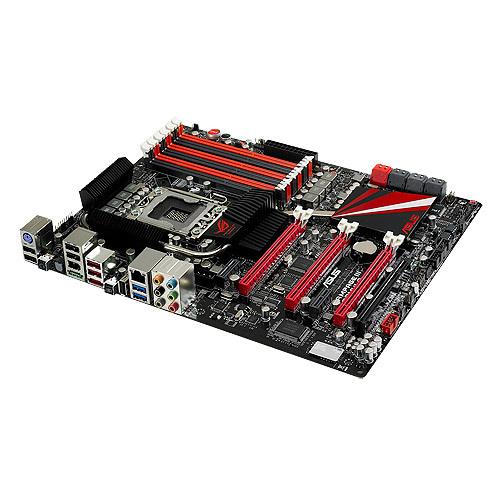

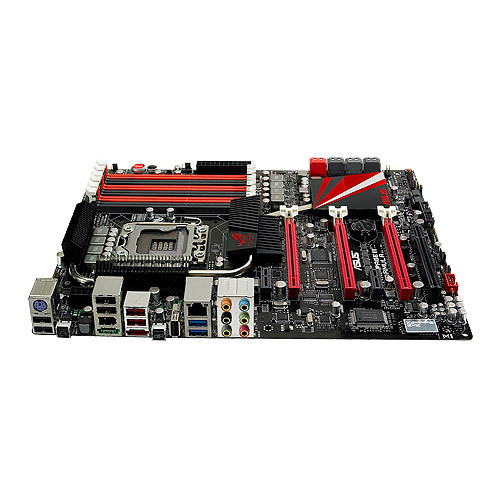

ASUS Rampage III Formula
Model Rampage III FormulaPart no. RAMPAGE III FORMULAEAN 610839177172
44 specifications
- Processor manufacturerIntel
- Number of memory slots6
- On-board graphics cardNo
- USB 2.0 connectors2
- USB 2.0 ports quantity7
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- On-board graphics card
- No
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 7
- Ethernet interface type
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- Rampage III Formula
- Part numbers
- RAMPAGE III FORMULA, 90-MIBDL0-G0EAY00Z
- EAN / UPC
- 610839177172
- Also known as
- ASUS Rampage III Formula Intel® X58 Socket B (LGA 1366) ATX
Specifications
44 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Memory channels | Triple-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1800,2133,2200 MHz |
| Maximum internal memory | 24 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 1 |

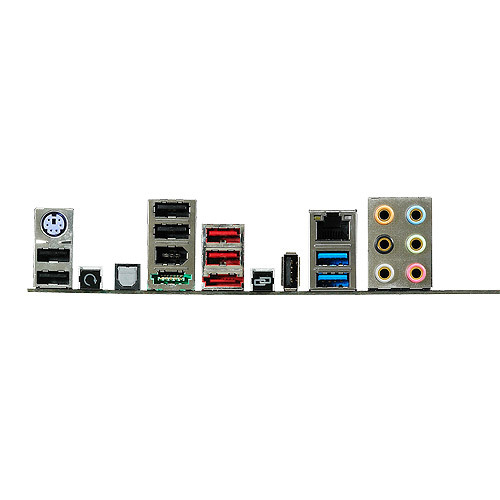

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82567V |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® X58 |
| Motherboard southbridge | Intel ICH10R |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 3 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
ASUS Rampage III Formula
No reviews yet
Be the first to tell others how ASUS Rampage III Formula works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Rampage III Formula

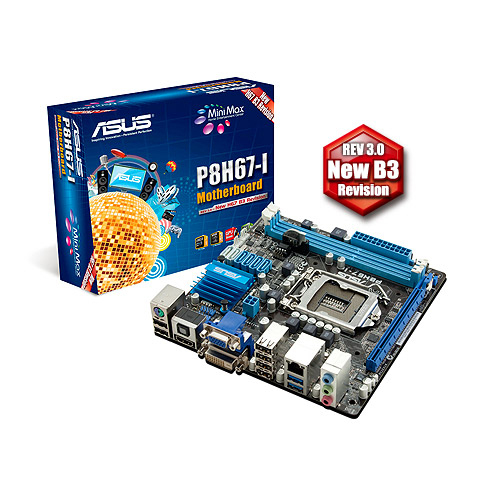

All motherboard comparisons- ASUS Rampage III Formula vsASUS P8H67-I Intel® H67 LGA 1155 (Socket H2) mini ITXCompare specs

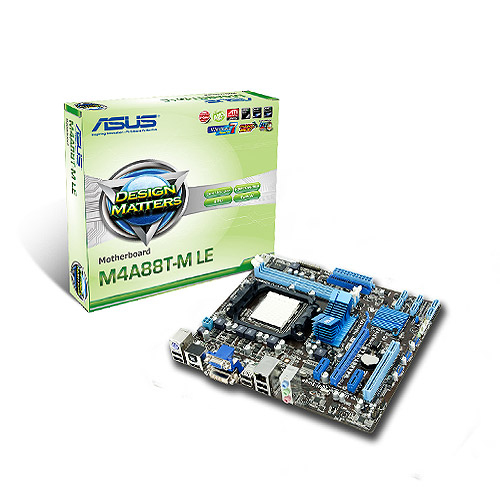

- ASUS Rampage III Formula vsASUS M4A88T-M LECompare specs
- ASUS Rampage III Formula vsASUS P8P67 Rev 3.0Compare specs
- ASUS Rampage III Formula vsASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATXCompare specs
- ASUS Rampage III Formula vsMSI H55M-E21 motherboard Intel® H55 LGA 1156 (Socket H) micro ATXCompare specs

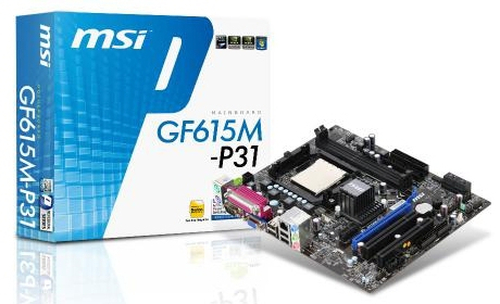

- ASUS Rampage III Formula vsMSI GF615M-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATXCompare specs
