ASUS Rampage III Extreme
Model Rampage III ExtremePart no. 90-MIBC10-G0EAY00ZEAN 610839176021
44 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 10
- On-board graphics cardNo
- USB 2.0 connectors1
- USB 2.0 ports quantity7
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 10
- On-board graphics card
- No
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 7
- Brand
- ASUS
- Category
- Motherboard
- Model
- Rampage III Extreme
- Part number
- 90-MIBC10-G0EAY00Z
- EAN / UPC
- 610839176021, 5742220314974
- Also known as
- ASUS Rampage III Extreme Socket B (LGA 1366) ATX
Specifications
44 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Chassis intrusion connector | Yes |

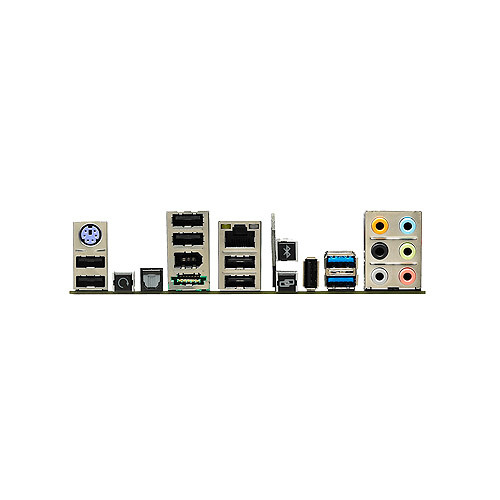

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/2003/XP/Vista/7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 269 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA |
| Controller interface type | SATA |
| EZ plug connector | Yes |
| Special features | 1 x RC Bluetooth card |
| Manageability features | WOL (PME),WOR (PME,PXE) |
