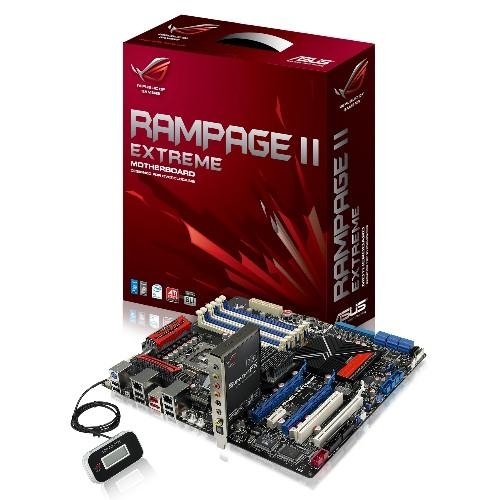

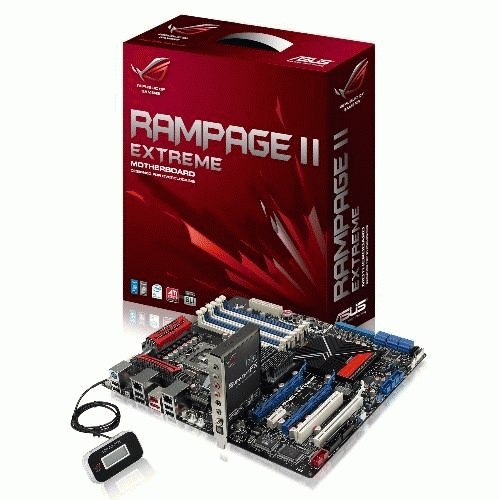

ASUS Rampage II Extreme
Model Rampage II ExtremePart no. 90-MIB6L0-G0EAY00ZEAN 4719543166185
42 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 10
- USB 2.0 connectors3
- Networking featuresGigabit
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- Networking features
- Gigabit
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- Rampage II Extreme
- Part numbers
- 90-MIB6L0-G0EAY00Z, 90-MIB6L0-G0EY00Z, 90-MBBLO-G0EAY00Z, 90-MIB6L0-G0AAY00Z, 90-MIB6LO-G0EAY00Z, RAMPAGE II EXTREME
- EAN / UPC
- 4719543166185, 610839166183
- Also known as
- ASUS Rampage II Extreme Socket B (LGA 1366) ATX
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD2000B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista |
| Overclocking features | AI Gear 4 COP EX C.P.R iROG |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 269 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | JMicron JMB363 |
| Floppy disk drive connector | Yes |
| Special features | External LCD Poster CMOS EL I/O Q-Fan Plus ROG BIOS Wallpaper EPU-6 Engine Q-Connector Fan Xpert EZ Flash 2 CrashFree BIOS 3 MyLogo3 |
