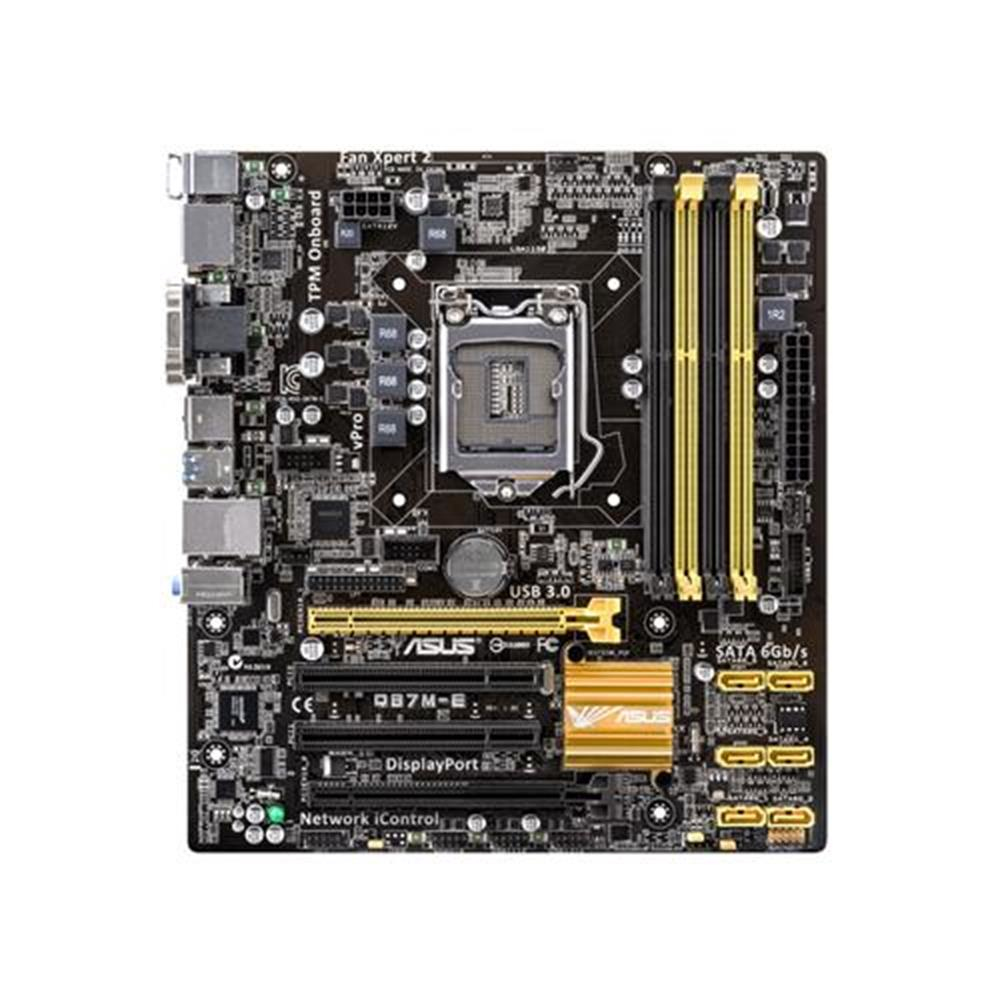

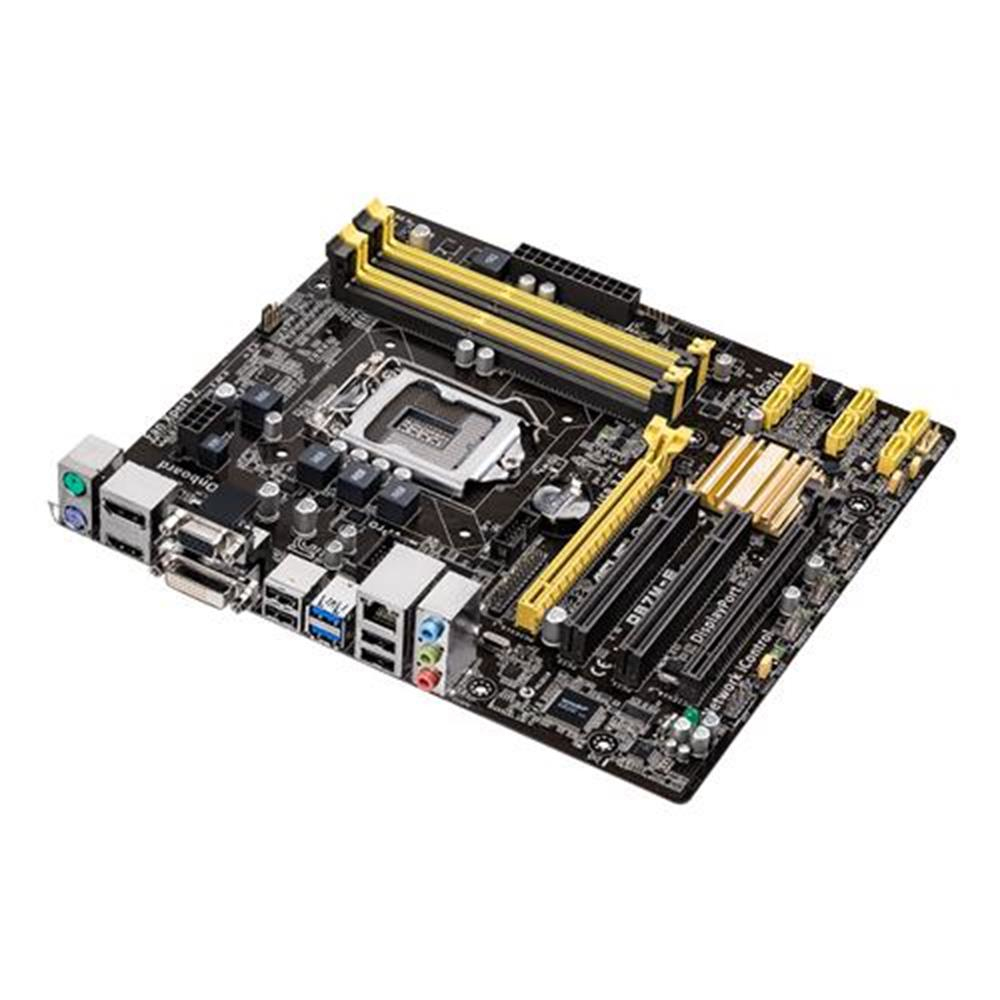

ASUS Q87M-E/CSM Intel® Q87 LGA 1150 (Socket H3) micro ATX

ASUS Q87M-E/CSM Intel® Q87 LGA 1150 (Socket H3) micro ATX

Model Q87M-E/CSMPart no. 90MB0FS0-M0EAYC

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
Q87M-E/CSM
Part number
90MB0FS0-M0EAYC
Also known as
ASUS Q87M-E/CSM Intel® Q87 LGA 1150 (Socket H3) micro ATX

Specifications

58 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Graphics

Maximum graphics card memory1024 MB
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Audio connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors2

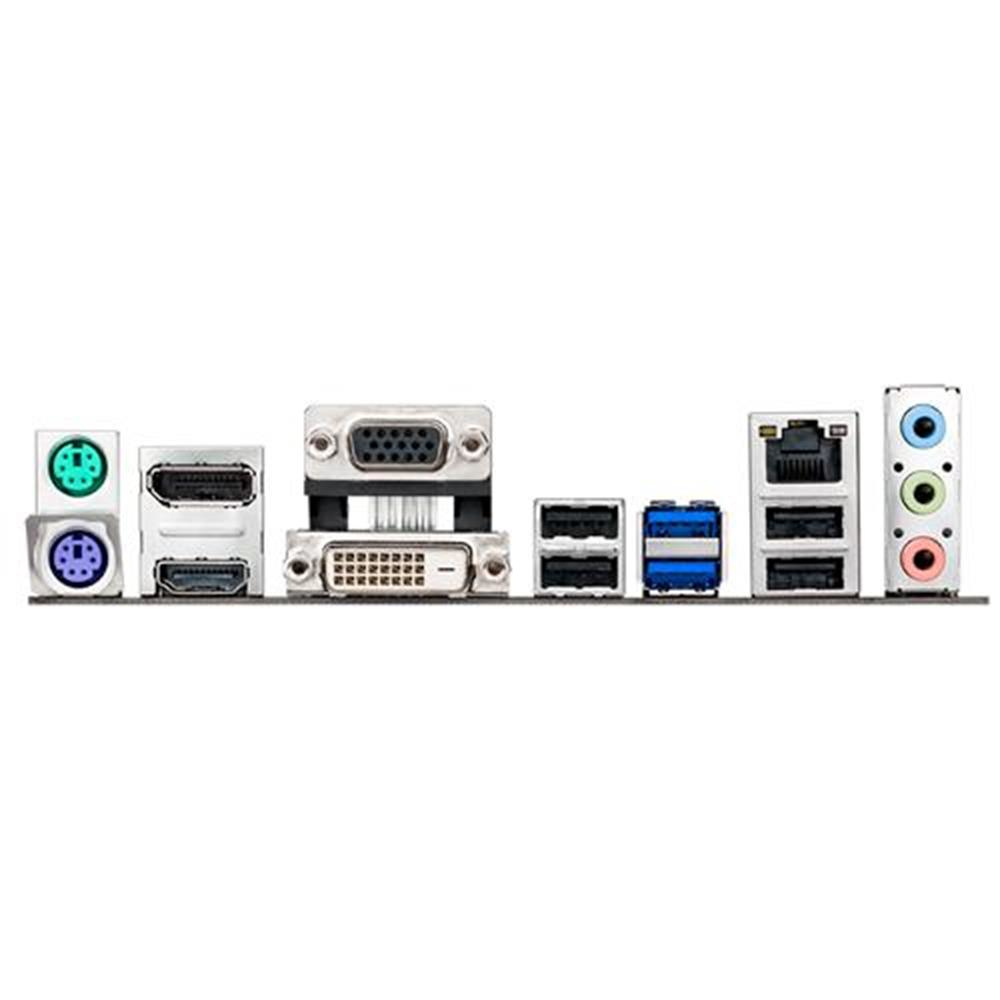

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I217-LM

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Q87
Audio chipRealtek ALC887-VD
Power source typeATX

Expansion slots

PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size128 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth224 mm

Packaging content

Drivers includedYes
