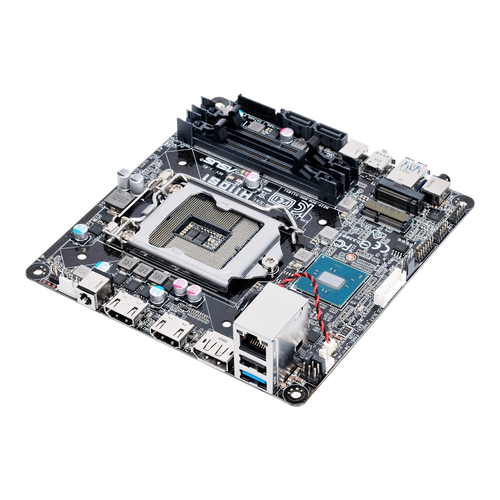

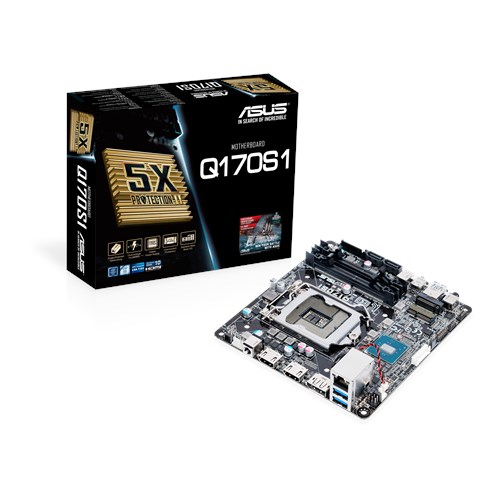

ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX
Model Q170S1/CSMPart no. 90MB0SG0-M0EAYCEAN 4058154210901
61 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Maximum graphics card memory1024 MB
- USB 2.0 connectors0
- Ethernet LANYes
- Component forMini PC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Component for
- Mini PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- Q170S1/CSM
- Part number
- 90MB0SG0-M0EAYC
- EAN / UPC
- 4058154210901, 4712900504422
- Also known as
- ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX
Specifications
61 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I219LM |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | Mini-STX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q170 |
| Audio chip | Realtek ALC3236 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 147 mm |
| Depth | 140 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of M.2 (E) slots | 1 |
What people say
Reviews & ratings
ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX
No reviews yet
Be the first to tell others how ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX
All motherboard comparisons- ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX vsASUS H110S1/CSM Intel® H110 LGA 1151 (Socket H4) Mini-STXCompare specs

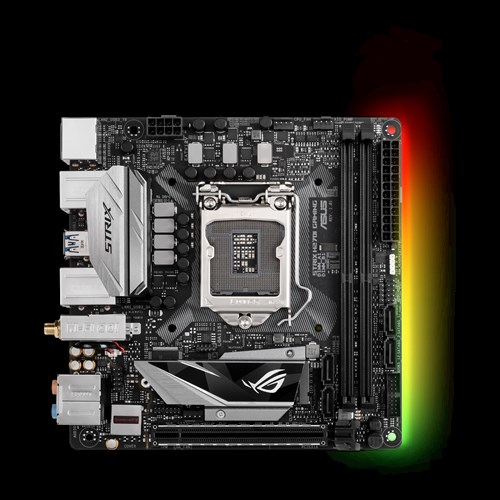

- ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX vsASUS ROG STRIX H270I GAMINGCompare specs

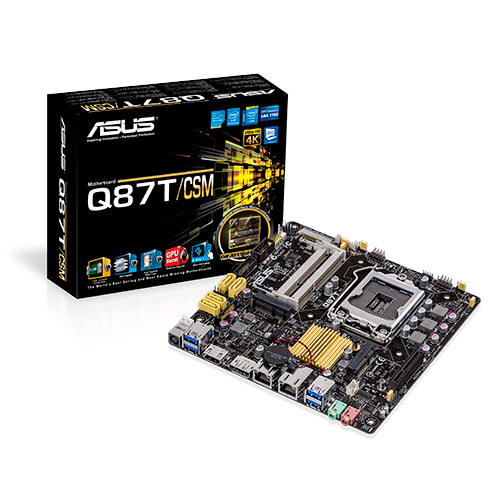

- ASUS Q170S1/CSM Intel® Q170 LGA 1151 (Socket H4) Mini-STX vsASUS Q87T/CSM Intel® Q87 LGA 1150 (Socket H3) mini ITXCompare specs
