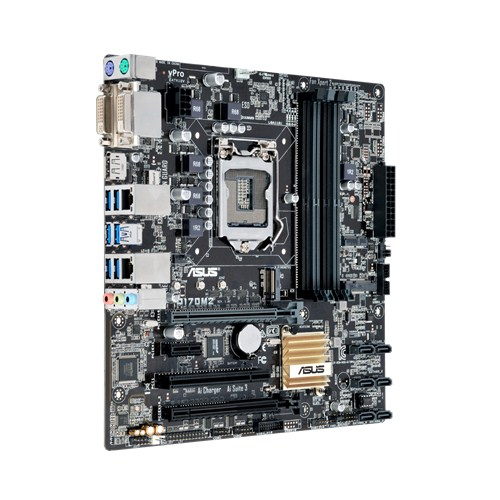

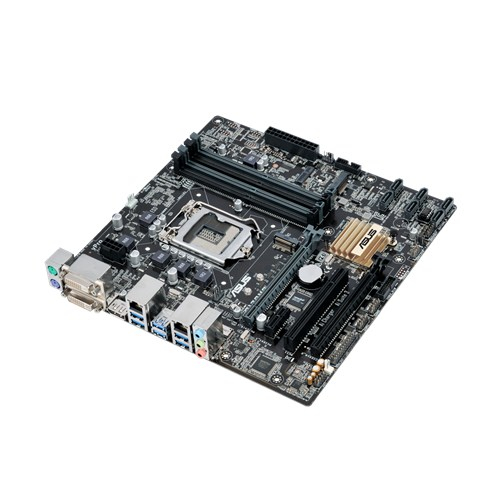

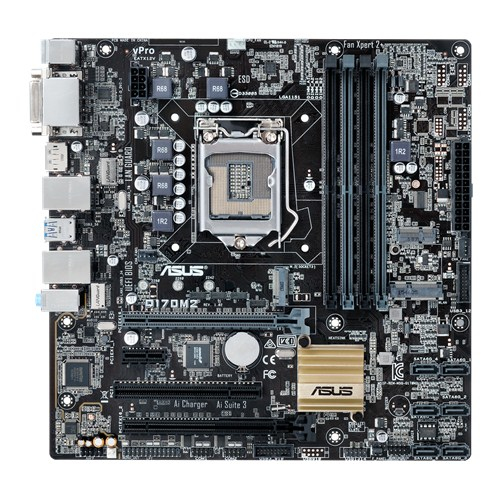

ASUS Q170M2 motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX

Model Q170M2EAN 4712900326543

86 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: Q170M2
Part numbers: Q170M2, 90MB0QC0-M0EAY0
EAN / UPC: 4712900326543
Also known as: ASUS Q170M2 motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX

86 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive interfaces	M.2, SATA III

Specification	Value
Maximum graphics card memory	1024 MB
Parallel processing technology support	Quad-GPU CrossFireX
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Discrete graphics support	Yes
Number of displays supported	3

Specification	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
Number of COM connectors	2

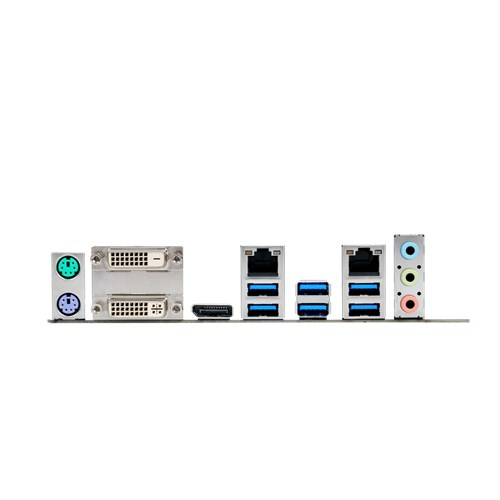

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	1
DVI-I ports quantity	1
DisplayPorts quantity	1

Specification	Value
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® Q170
Audio chip	Realtek ALC887
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window

Specification	Value
PCI Express x1 (Gen 2.x) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
Mini PCI Express slot (half-length)	1
PCI slots	1
Number of M.2 (M) slots	1

Specification	Value
Conflict-Free	Yes
Intel Extreme Memory Profile (XMP)	Yes
Intel ME Firmware Version	11
Intel Rapid Storage Technology	Yes
Intel Rapid Storage Technology enterprise	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d
Processor with Intel Graphics Technology required	Yes

Specification	Value
Width	244 mm
Depth	244 mm

Specification	Value

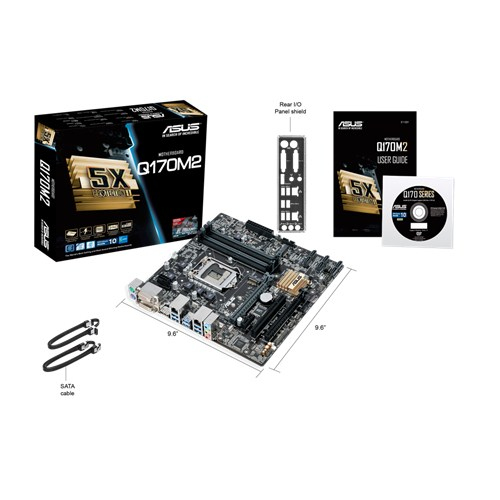

Cables included	SATA

Specification	Value
Intel® vPro™ Platform Eligibility	Yes
