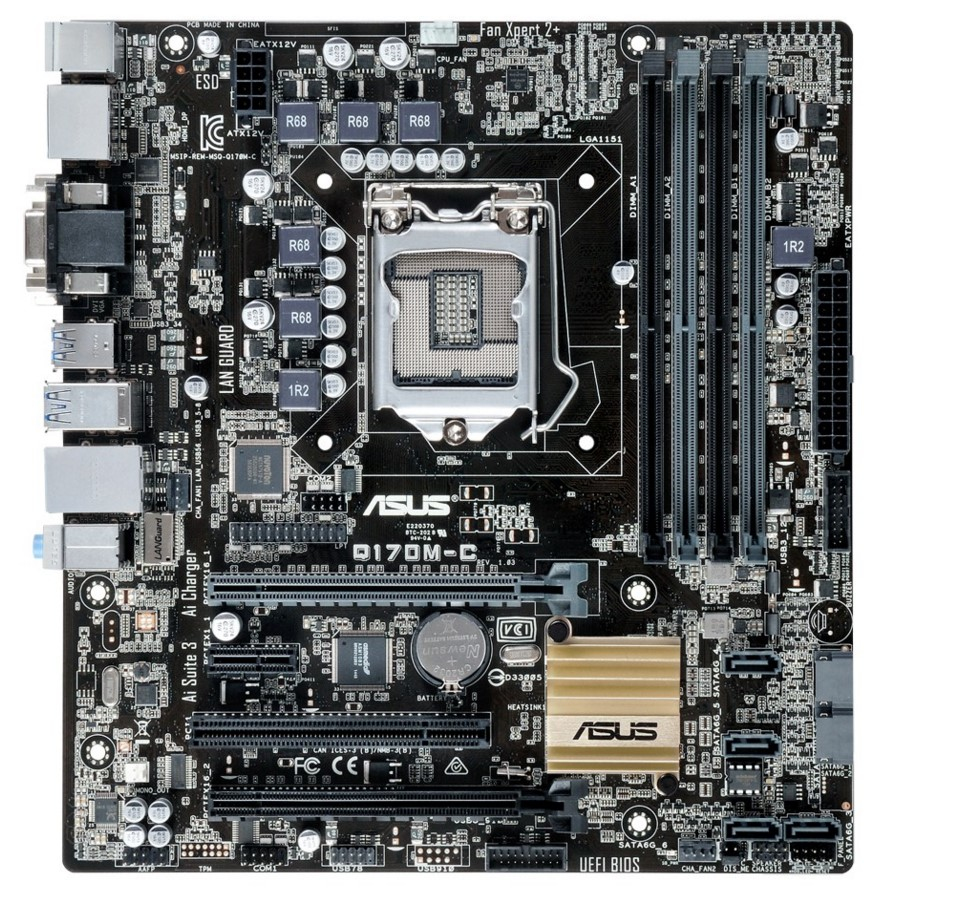

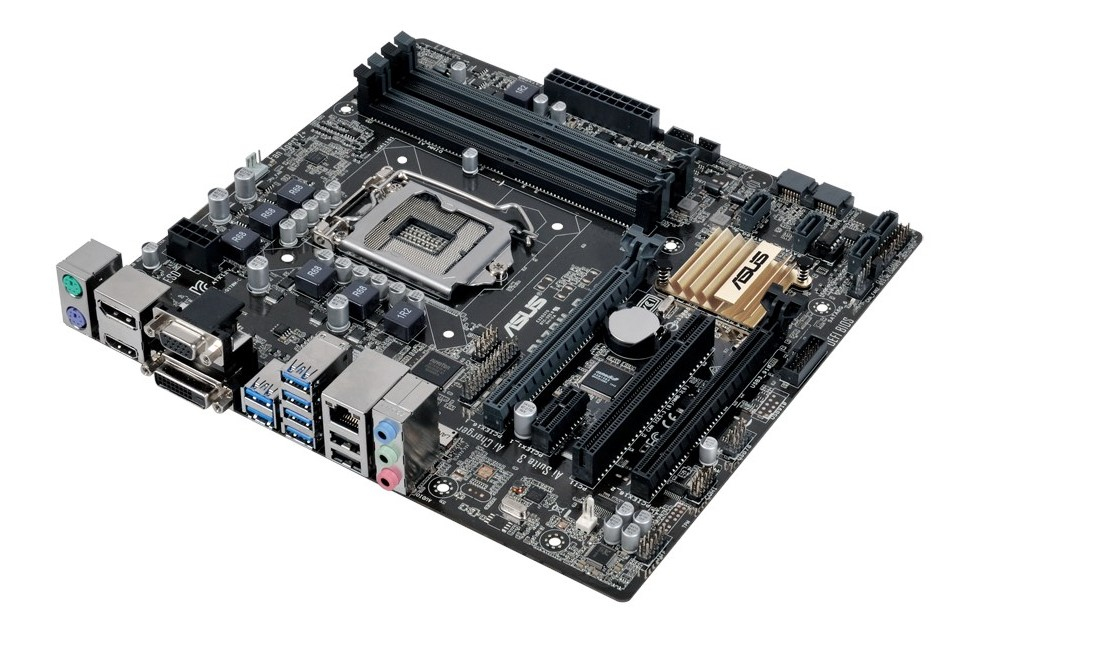

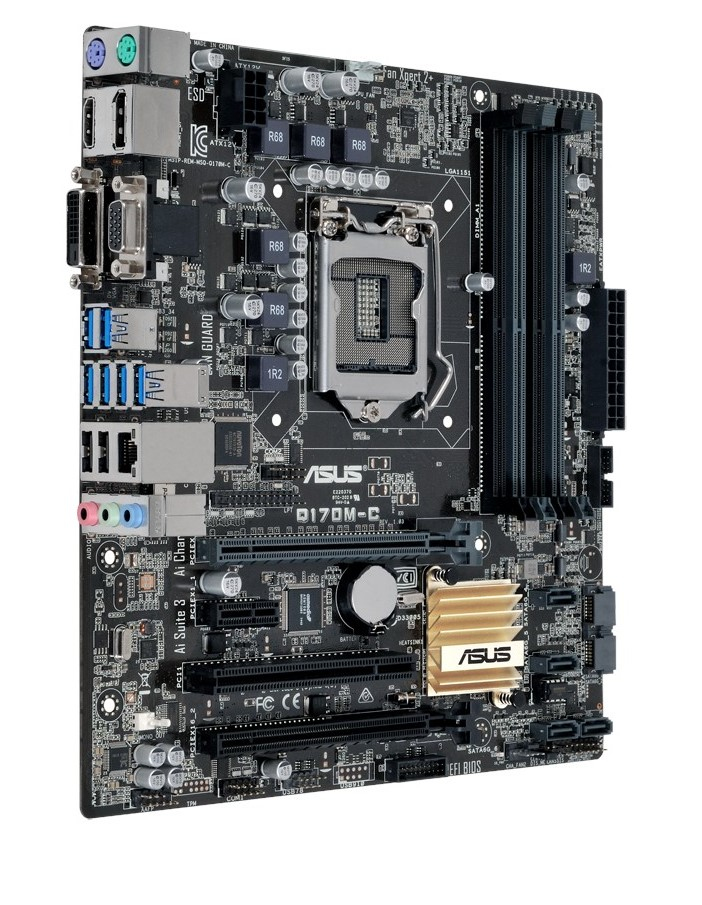

ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX
Model Q170M-CPart no. 90MB0MK0-M0EAY0EAN 4053162996205
68 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Q170M-C
- Part number
- 90MB0MK0-M0EAY0
- EAN / UPC
- 4053162996205
- Also known as
- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX
Specifications
68 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Graphics card family | Intel |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 2 |

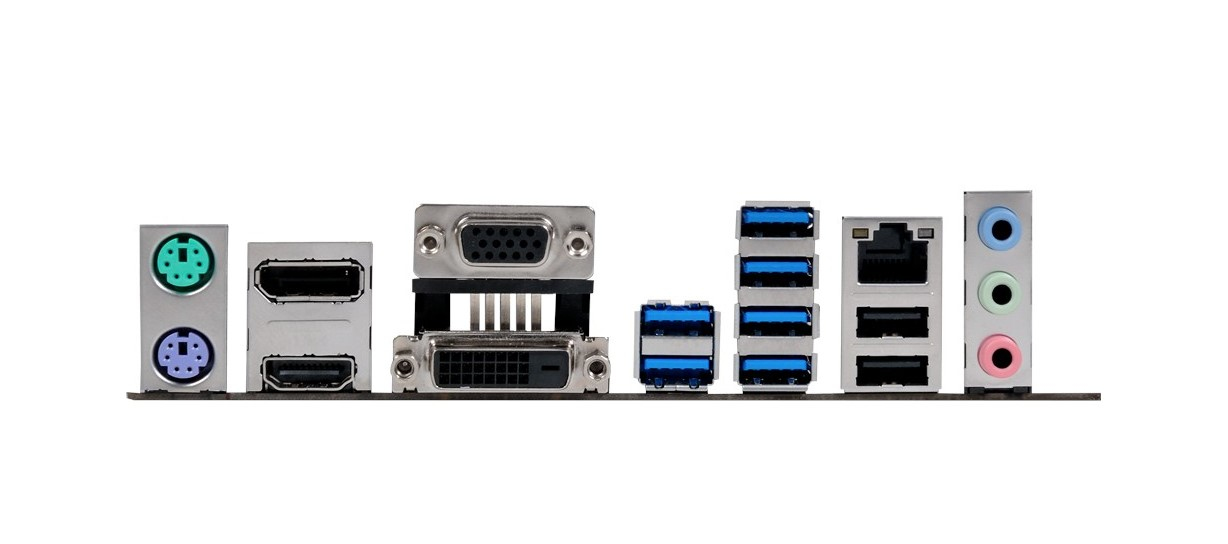

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I219LM |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q170 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 226 mm |

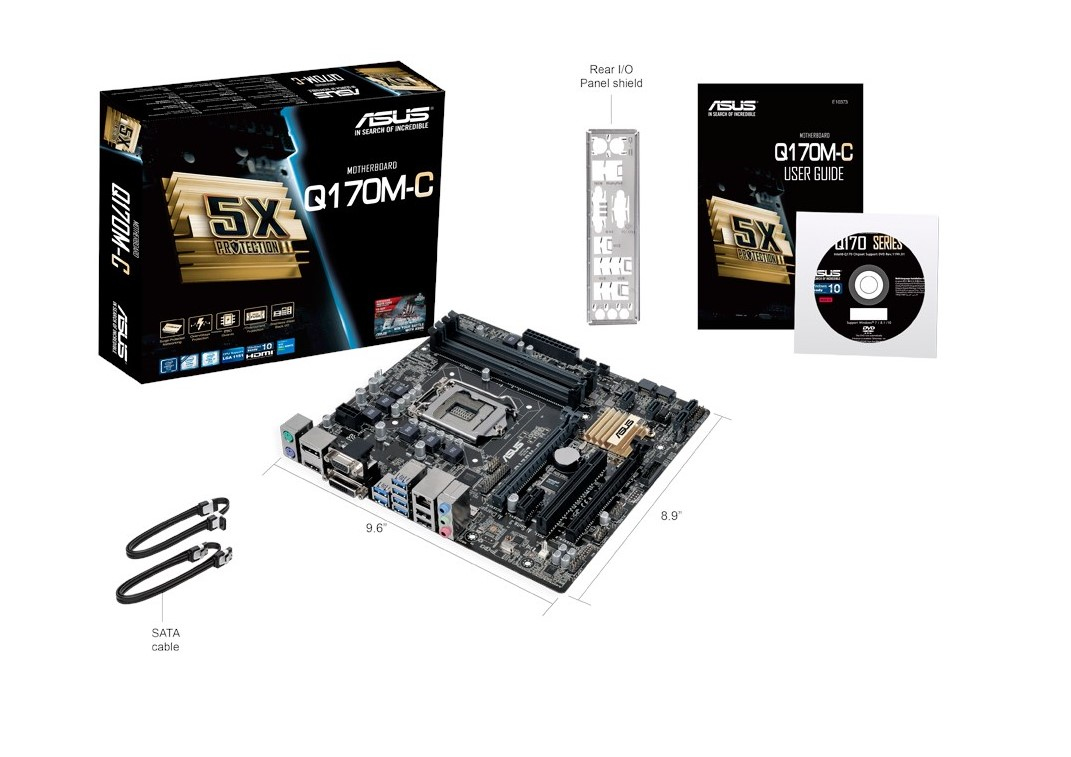

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX
All motherboard comparisons- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS B150 PRO GAMING/AURACompare specs
- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS Q170M-C/CSM Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS H110M-C/CSM motherboard Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs

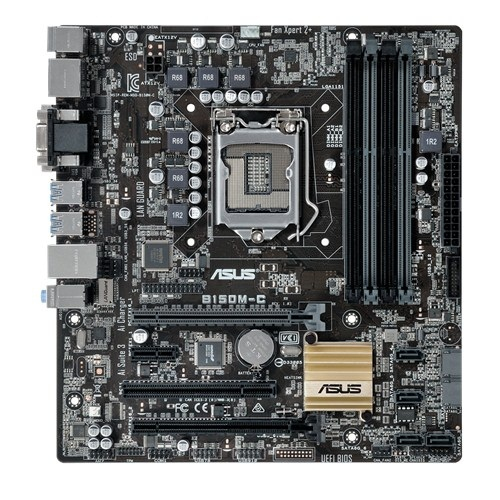

- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS B150M-C/CSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs
- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-B150M-DS3H DDR3Compare specs
- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs

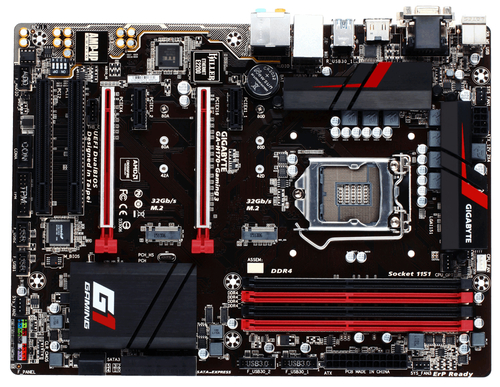

- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-H170-GAMING 3Compare specs

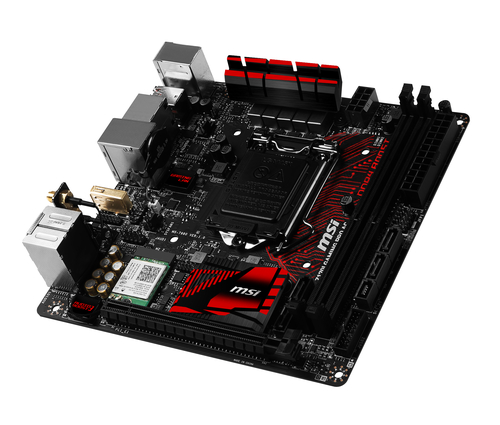

- ASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATX vsMSI Z170I GAMING PRO ACCompare specs
