PRO WS W790E-SAGE SE
Model PRO WS W790E-SAGE SEPart no. 90MB1C20-M0EAY0EAN 197105123519
81 specifications
- SpeedNot available
- ColourBlack
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
Overview
- Speed
- Not available
- Colour
- Black
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRO WS W790E-SAGE SE
- Part number
- 90MB1C20-M0EAY0
- EAN / UPC
- 197105123519, 4711387123515, 4711387123522
- Also known as
- ASUS PRO WS W790E-SAGE SE Intel W790 LGA 4677 (Socket E) EEB
Specifications
81 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported processor sockets | LGA 4677 (Socket E) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Supported memory clock speed (max) | 6800 MHz |
| Maximum internal memory | 2 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SlimSAS, M.2, SATA III |
| Number of HDDs supported | 10 |
| Number of storage drives supported | 13 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Integrated SAS ports | 2 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |

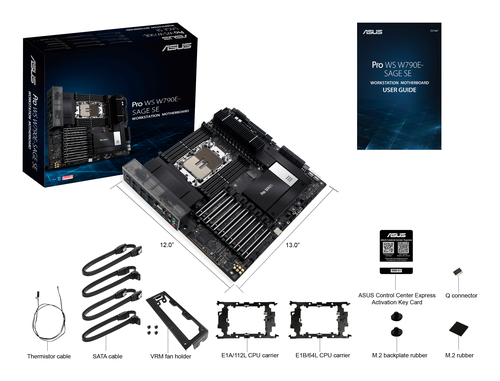

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
