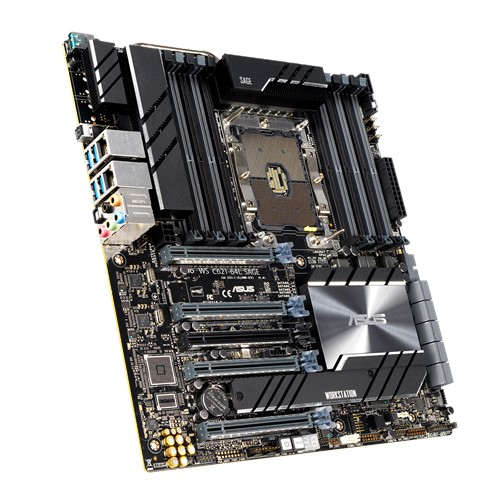

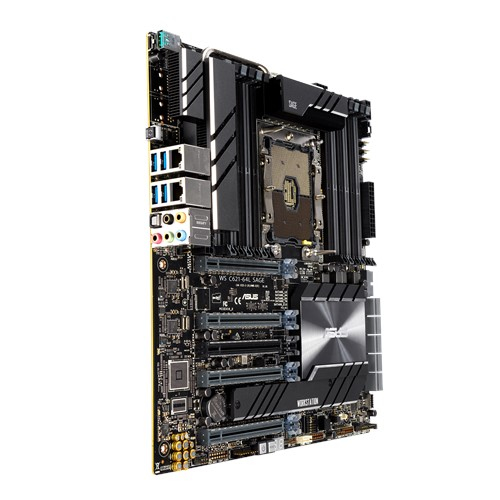

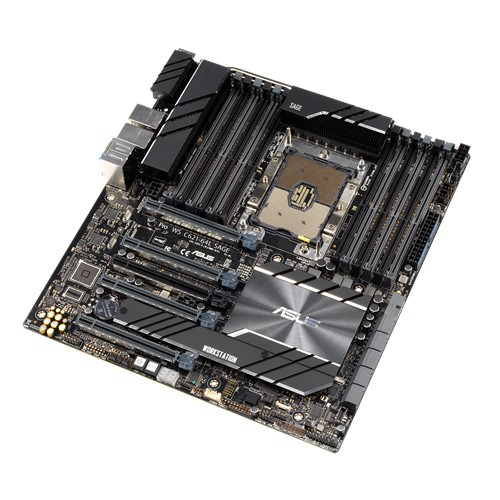

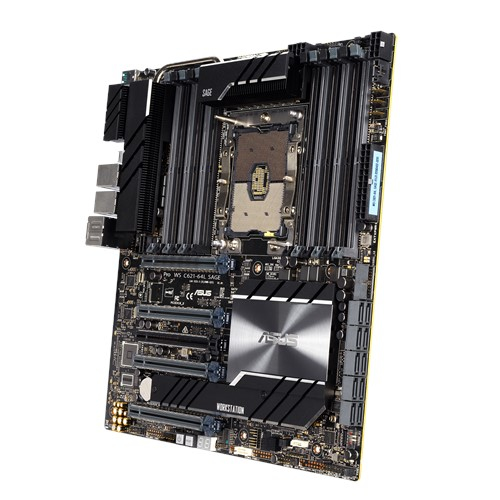

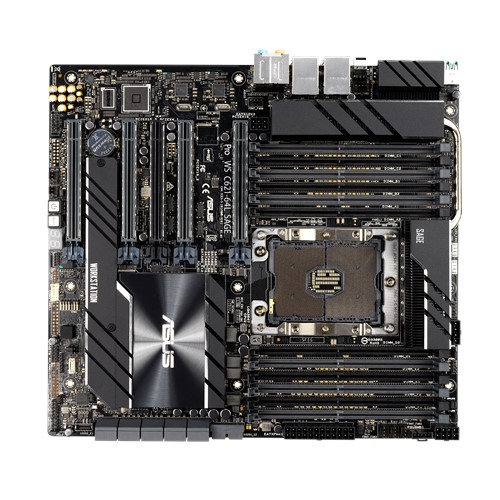

Pro WS C621-64L SAGE
Model Pro WS C621-64L SAGEPart no. 90SW00R0-M0EAY0EAN 4718017390002
71 specifications
- Processori7-7700
- Memory16 GB
- GraphicsNVIDIA GeForce GTX 1080
- TypePC
- OSWindows 10 Home
- Weight6.38 kg
Overview
- Processor
- i7-7700
- Memory
- 16 GB
- Graphics
- NVIDIA GeForce GTX 1080
- Type
- PC
- OS
- Windows 10 Home
- Weight
- 6.38 kg
- Brand
- ASUS
- Category
- Motherboard
- Model
- Pro WS C621-64L SAGE
- Part number
- 90SW00R0-M0EAY0
- EAN / UPC
- 4718017390002
- Also known as
- ASUS Pro WS C621-64L SAGE Intel® C621 LGA 3647 (Socket P) CEB
Specifications
71 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Compatible processor series | Intel Xeon W |
| System bus rate | 8 GT/s |
| Processor number of cores supported | 28 |
| Processor model | i7-7700 |
| Processor codename | Kaby Lake |
| Processor cores | 4 |
| Maximum number of PCI Express lanes | 16 |
| Maximum internal memory supported by processor | 64 GB |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Internal memory | 16 GB |
| Supported memory clock speeds | 2666,2933 MHz |
| Maximum internal memory | 1.53 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

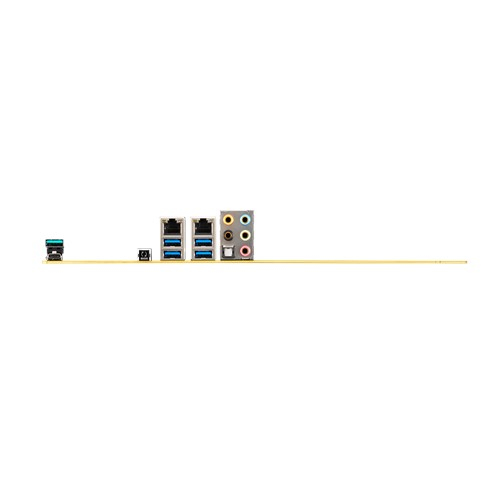

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | CEB |
| Motherboard chipset | Intel® C621 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 5 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Packaging data
| Specification | Value |
|---|---|
| Package width | 400 mm |
| Package depth | 190 mm |
| Package height | 592 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 277 mm |
| Height | 358 mm |
Other features
| Specification | Value |
|---|---|
| HDD size | 2.5" |
| Storage media | HDD+SSD |
| Internal memory type | DDR4-SDRAM |
| Supported DIMM module capacities | 128GB, 16GB, 32GB, 64GB |
| Supported LRDIMM clock speeds | 2666,2933 MHz |
| Supported RDIMM clock speeds | 2666,2933 MHz |
| Weight | 6.38 kg |
| DC-in jack | Yes |
| Discrete graphics card model | NVIDIA GeForce GTX 1080 |
| Number of DIMM slots | 12 |
| Number of processors supported | 1 |
| Processor lithography | 14 nm |
| Processor family | Intel® Core™ i7 |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor frequency | 3.6 GHz |
| Thermal Design Power (TDP) | 65 W |
Technical details
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Product type | PC |
