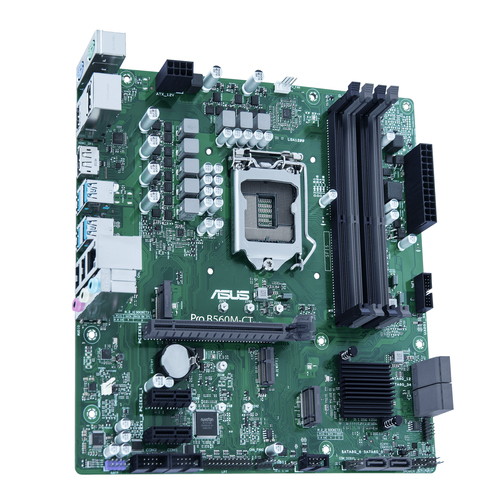

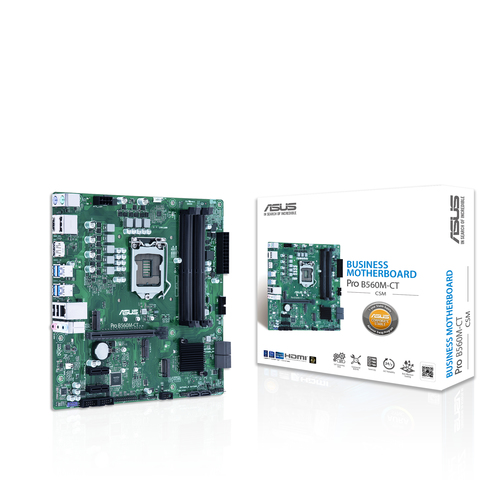

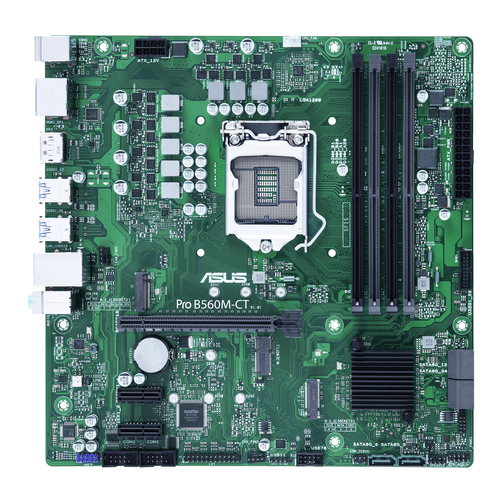

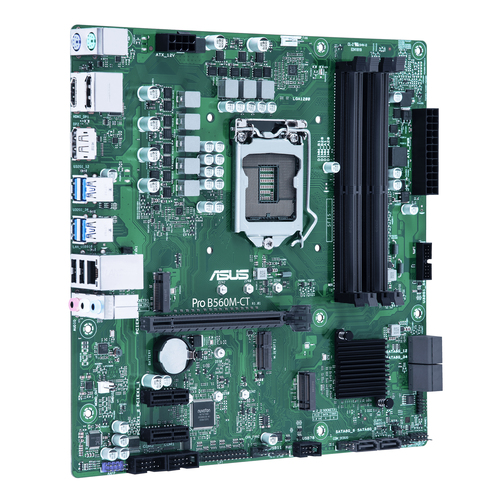

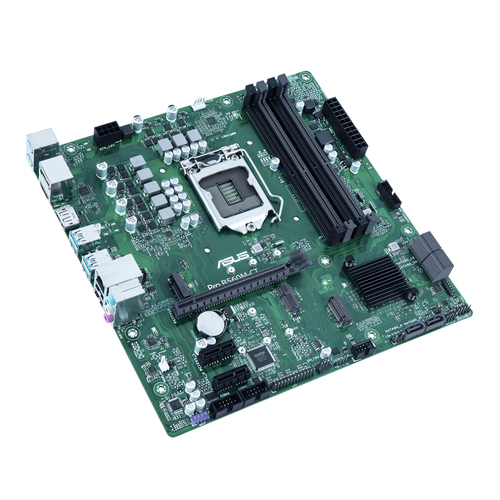

PRO B560M-CT/CSM
Model PRO B560M-CT/CSMEAN 195553173360
47 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRO B560M-CT/CSM
- Part number
- PRO B560M-CT/CSM
- EAN / UPC
- 195553173360
- Also known as
- ASUS PRO B560M-CT/CSM motherboard Intel B560 LGA 1200 (Socket H5) micro ATX
Specifications
47 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i9, Intel Pentium G |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200,3333,3466,3600,3733,4000,4266,4400,4600 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |

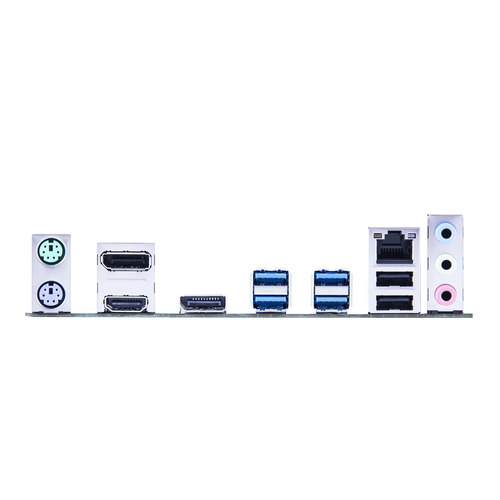

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel WGI219V |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
