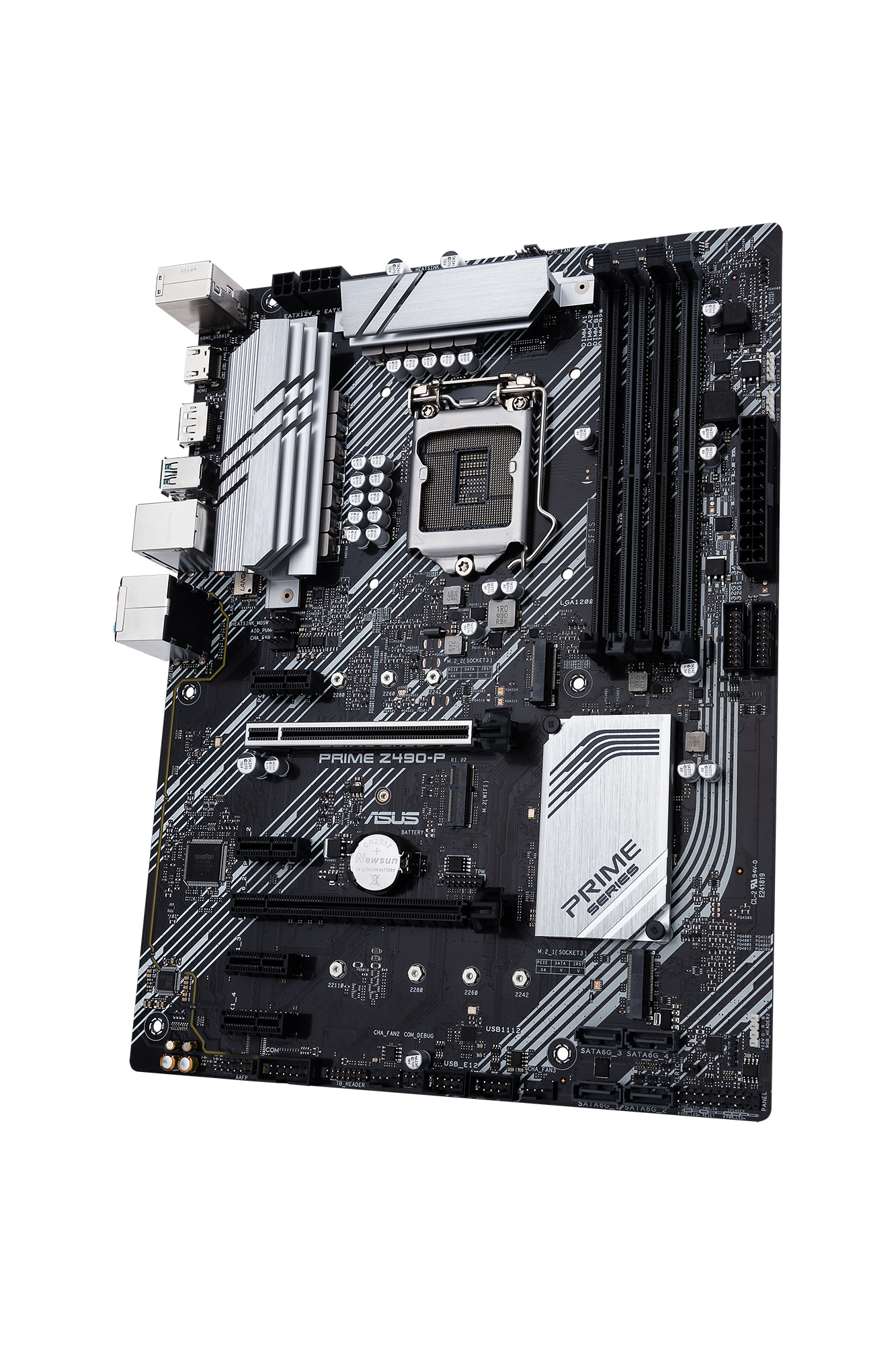

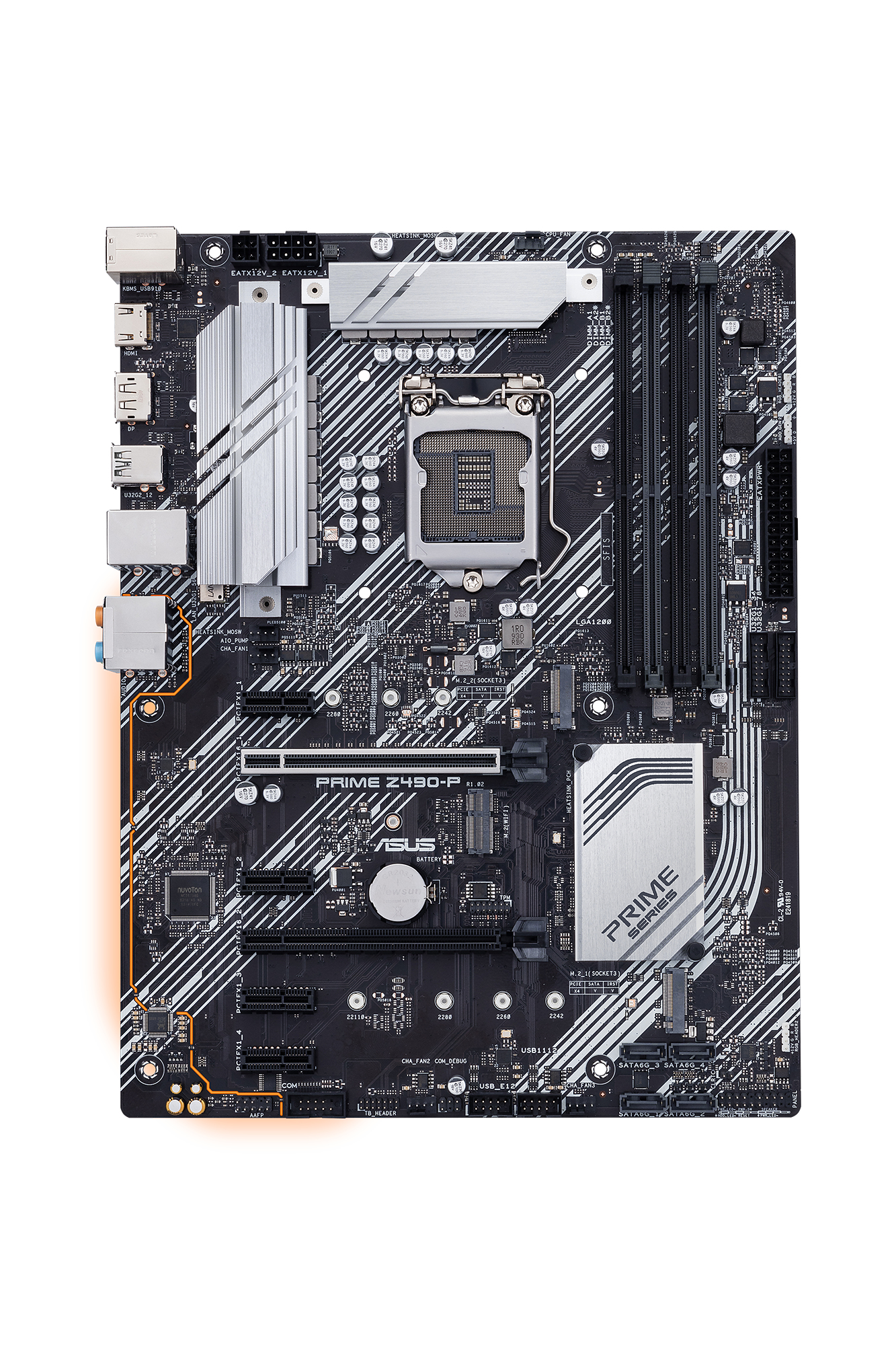

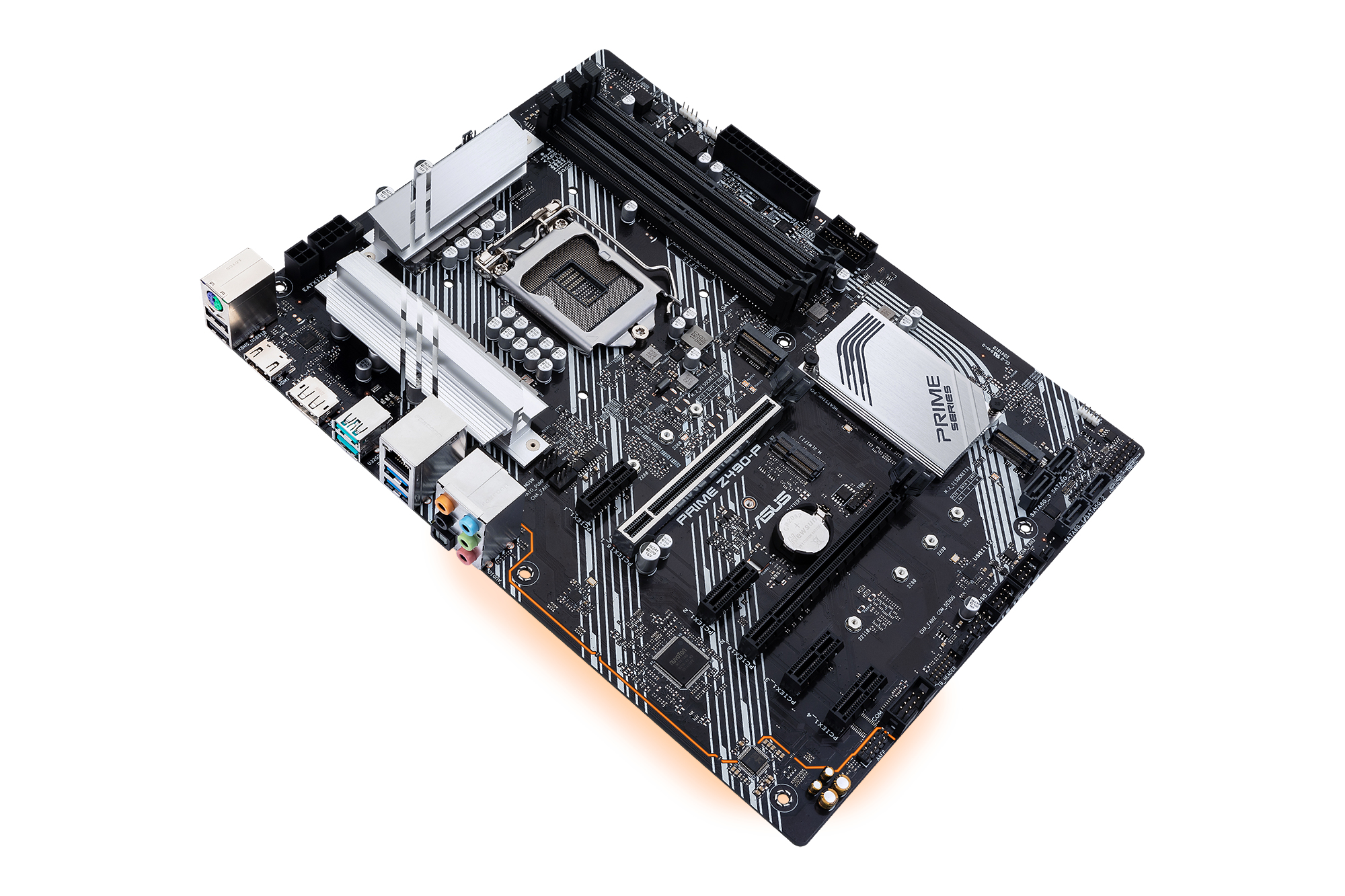

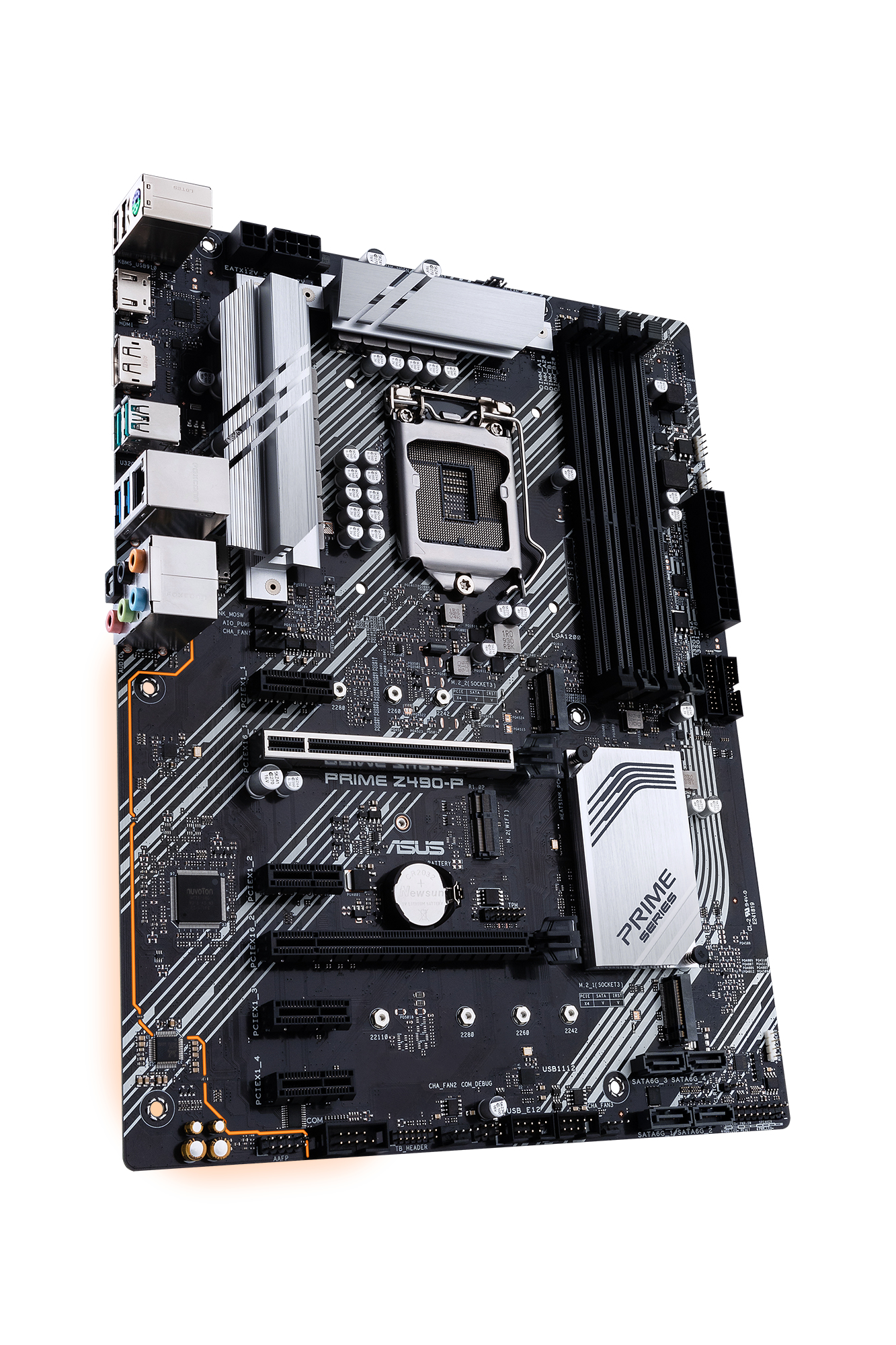

PRIME Z490-P
Model PRIME Z490-PPart no. 90MB12V0-M0EAY0EAN 192876666043
67 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME Z490-P
- Part number
- 90MB12V0-M0EAY0
- EAN / UPC
- 192876666043, 192876666050, 4718017666046, 4718017666053
- Also known as
- ASUS PRIME Z490-P Intel Z490 LGA 1200 (Socket H5) ATX
Specifications
67 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum resolution | 4096 x 2304 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 8 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 234 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
