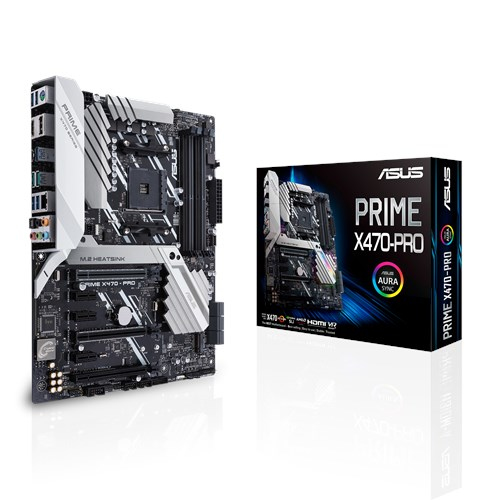

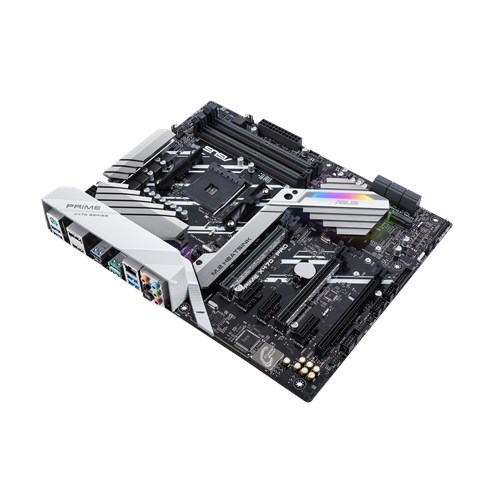

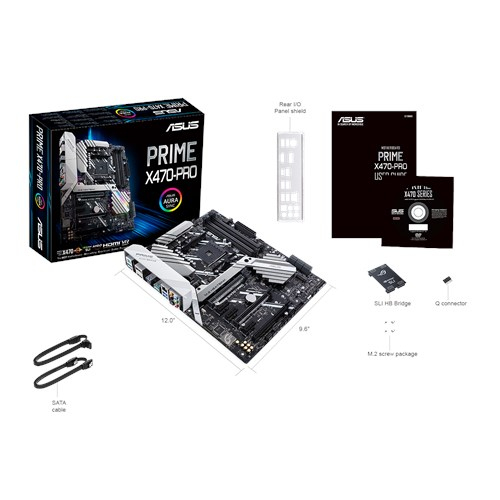

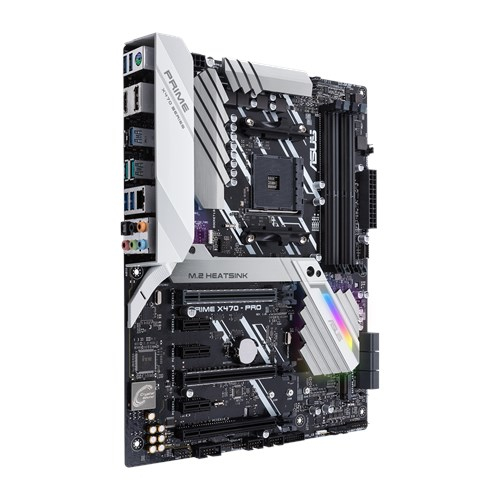

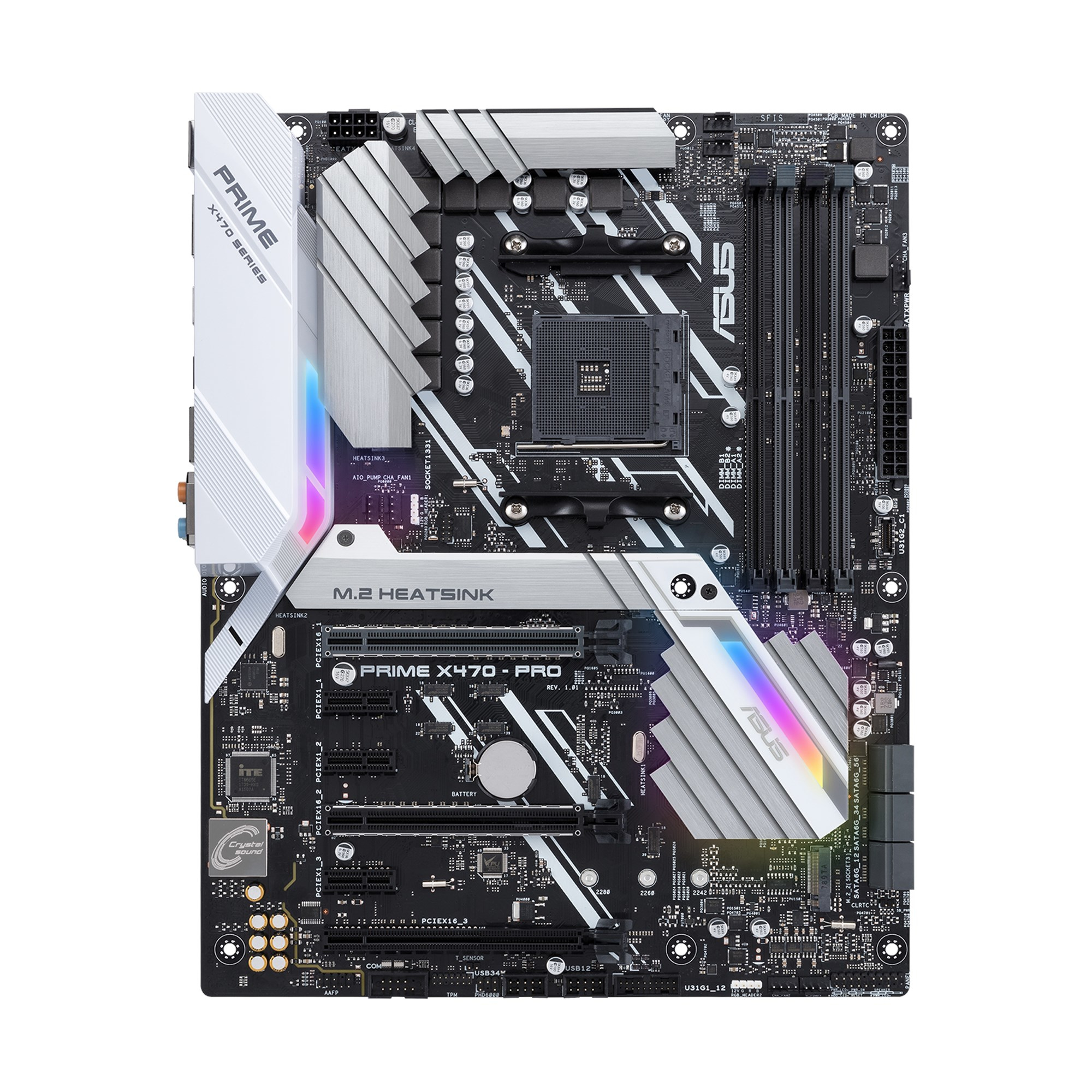

ASUS PRIME X470-PRO

ASUS PRIME X470-PRO

Model PRIME X470-PROPart no. 90MB0XG0-M0EAY0EAN 889349935101

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Maximum graphics card memory
2048 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Brand
ASUS
Category
Motherboard
Model
PRIME X470-PRO
Part numbers
90MB0XG0-M0EAY0, 90MB0XG0-M0AAY0
EAN / UPC
889349935101, 4712900935103
Also known as
ASUS PRIME X470-PRO AMD X470 Socket AM4 ATX

Specifications

59 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Processor cores8

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200,3466 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology support2-Way SLI, CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes

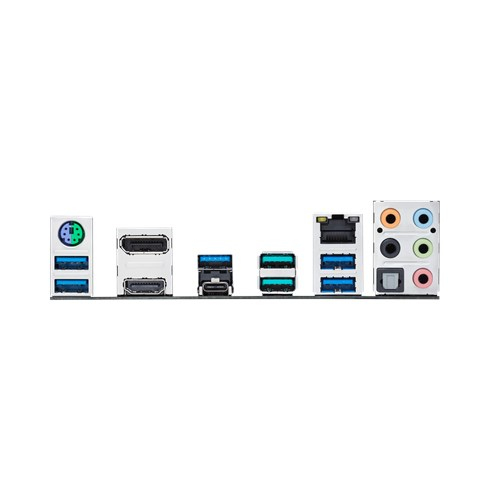

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I211-AT

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X470
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version6.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Number of M.2 (E) slots2
