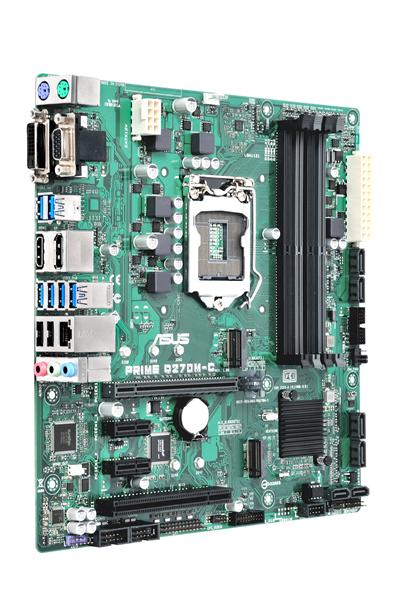

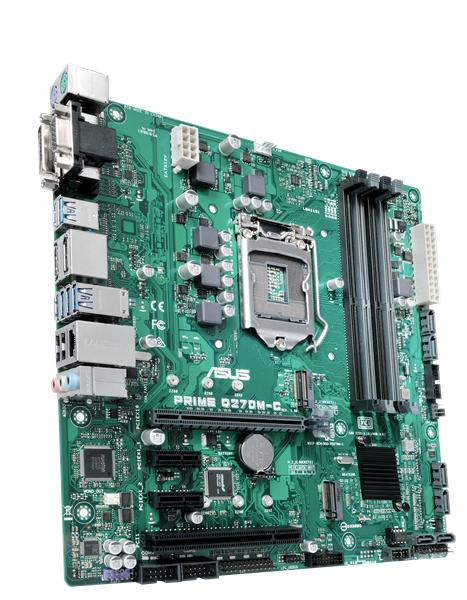

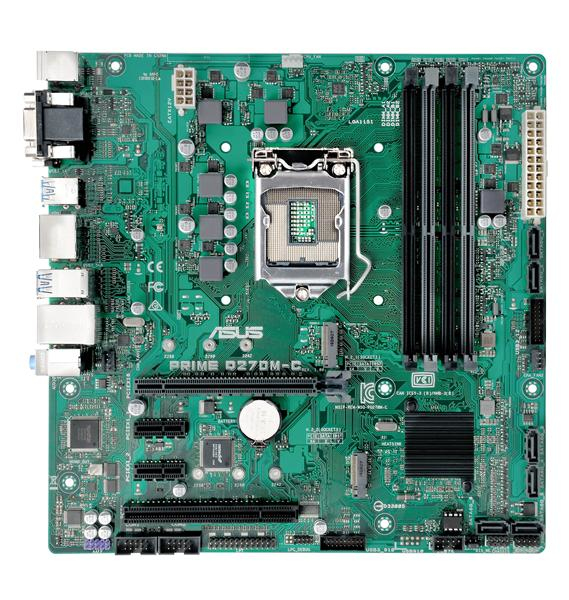

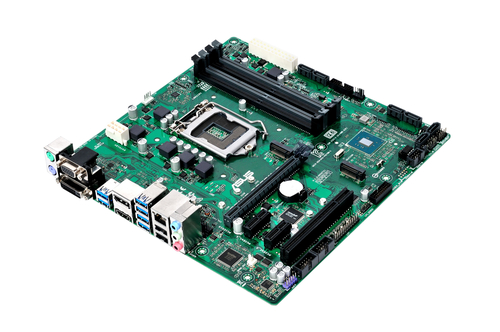

ASUS PRIME Q270M-C

ASUS PRIME Q270M-C

Model PRIME Q270M-CPart no. 90MB0SZ0-M0EAYCEAN 4712900774832

72 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
PRIME Q270M-C
Part numbers
90MB0SZ0-M0EAYC, 90MB0SZ0-M0EAYM
EAN / UPC
4712900774832, 4058154178560, 4712900621846, 889349774830 +1 more
Also known as
ASUS PRIME Q270M-C Intel® Q270 LGA 1151 (Socket H4) micro ATX

Specifications

72 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel connectorYes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
12V power connectorYes
Number of COM connectors2
TPM connectorYes

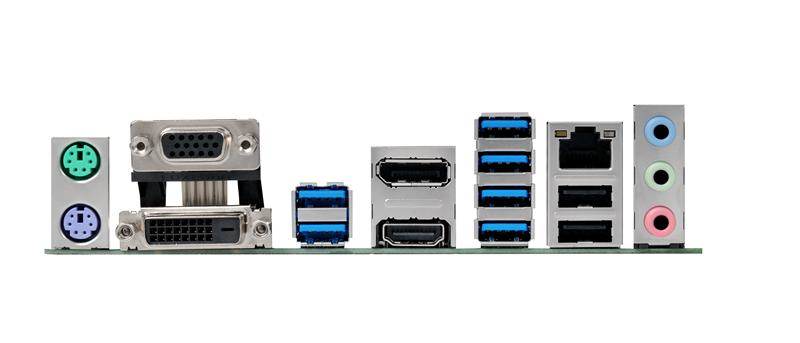

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DVI-I ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
Digital audio optical out0
COM ports quantity0
Parallel ports quantity0
Serial ports quantity0
WiFi-AP antenna jack0
Modem (RJ-11) ports0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel I219LM
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Q270
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in portNo
