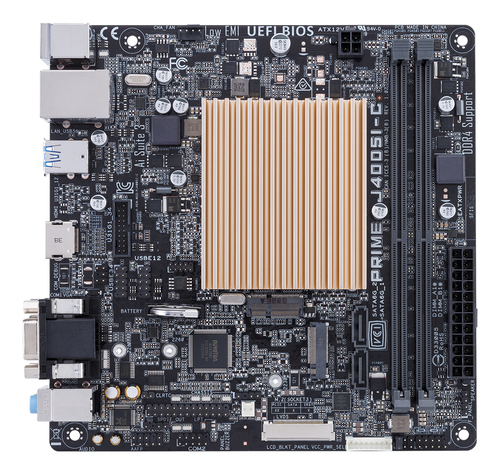

ASUS PRIME J4005I-C
Model PRIME J4005I-CPart no. 90MB0W90-M0EAY0EAN 4712900899436
73 specifications
- ProcessorJ4005
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Maximum graphics card memory512 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor
- J4005
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME J4005I-C
- Part number
- 90MB0W90-M0EAY0
- EAN / UPC
- 4712900899436
- Also known as
- ASUS PRIME J4005I-C mini ITX
Specifications
73 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor model | J4005 |
| Processor cores | 2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 8 GB |
| Unbuffered memory | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Graphics card family | Intel |
| Graphics card | UHD Graphics 600 |
| Maximum resolution | 4096 x 2304 pixels |
| OpenGL version | 4.3 |
| DirectX version | 12.0 |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC887-VD2 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.0 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |

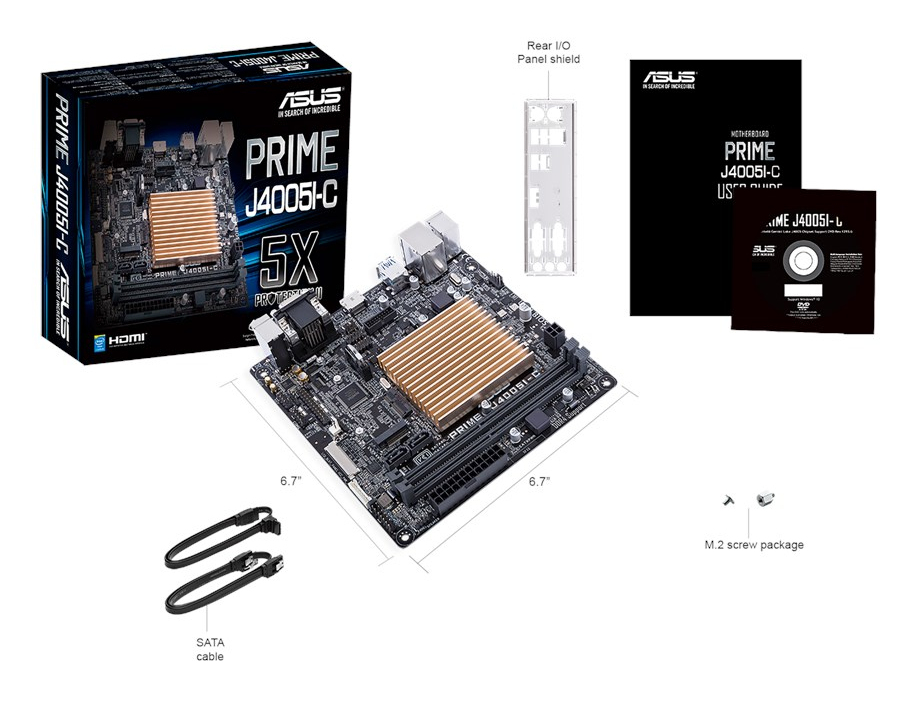

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| LVDS connector | Yes |
| Processor family | Intel® Celeron® |
| Number of M.2 (E) slots | 1 |
What people say
Reviews & ratings
ASUS PRIME J4005I-C
No reviews yet
Be the first to tell others how ASUS PRIME J4005I-C works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS PRIME J4005I-C
All motherboard comparisons- ASUS PRIME J4005I-C vsASUS B250 Mining Expert/CSMCompare specs
- ASUS PRIME J4005I-C vsASUS WS C621E SAGE (BMC)Compare specs

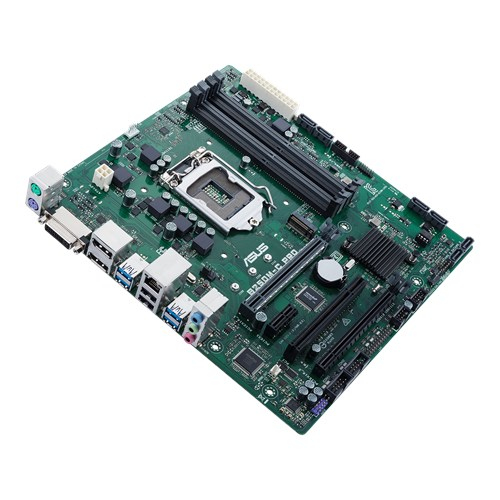

- ASUS PRIME J4005I-C vsASUS Prime B250M-C PRO/CSMCompare specs

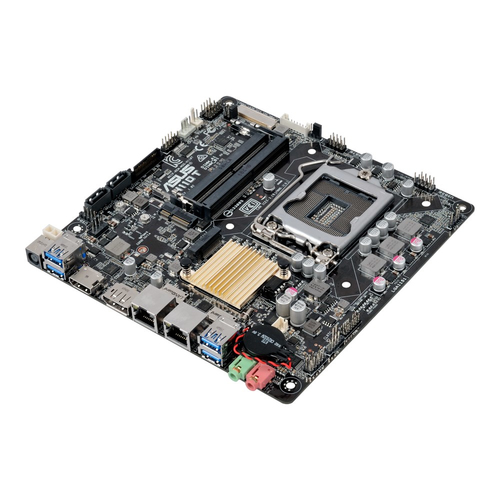

- ASUS PRIME J4005I-C vsASUS H110T/CSM Intel® H110 LGA 1151 (Socket H4) mini ITXCompare specs

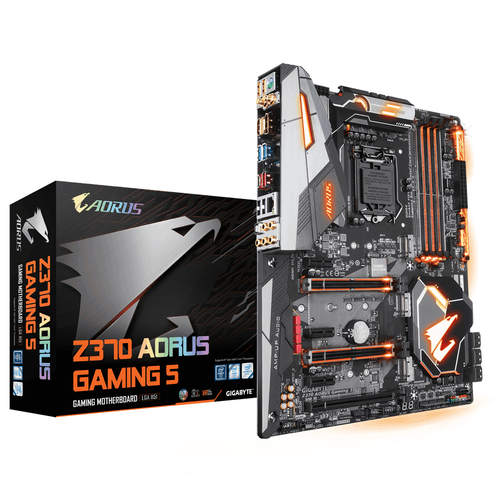

- ASUS PRIME J4005I-C vsGIGABYTE Z370 AORUS Gaming 5 (rev. 1.0)Compare specs

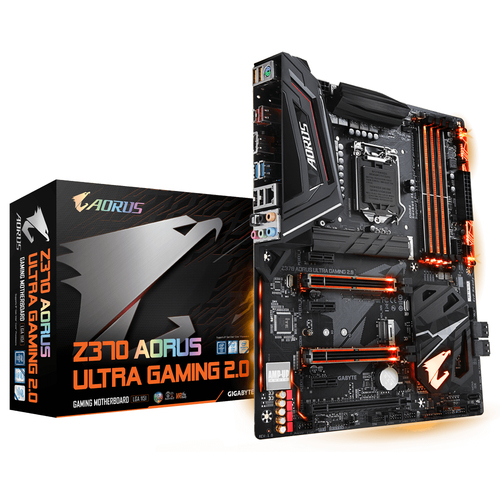

- ASUS PRIME J4005I-C vsGIGABYTE Z370 AORUS Ultra Gaming 2.0Compare specs
- ASUS PRIME J4005I-C vsGIGABYTE X399 DESIGNARE EX (rev. 1.0)Compare specs

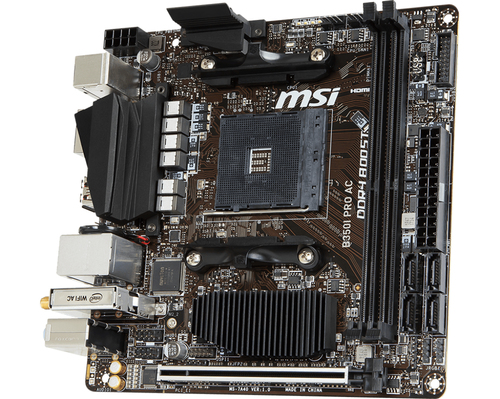

- ASUS PRIME J4005I-C vsMSI B350I PRO ACCompare specs
