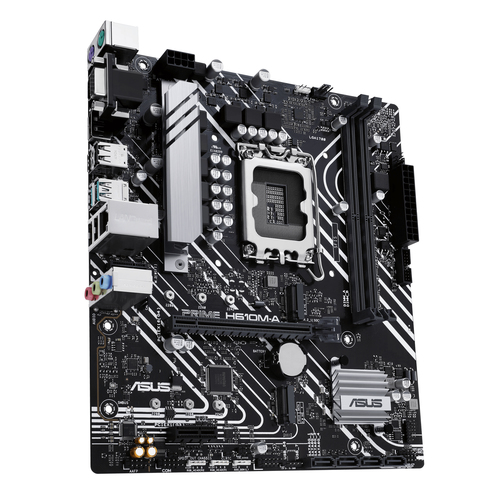

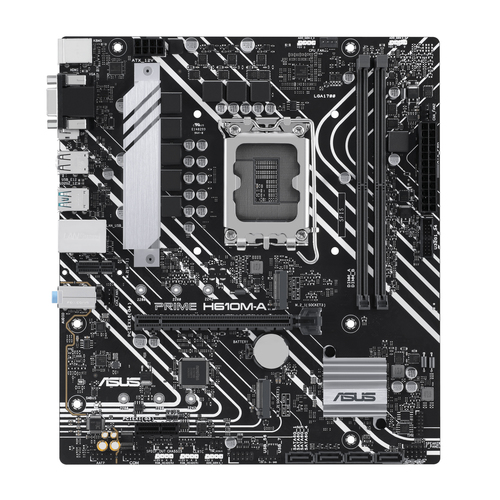

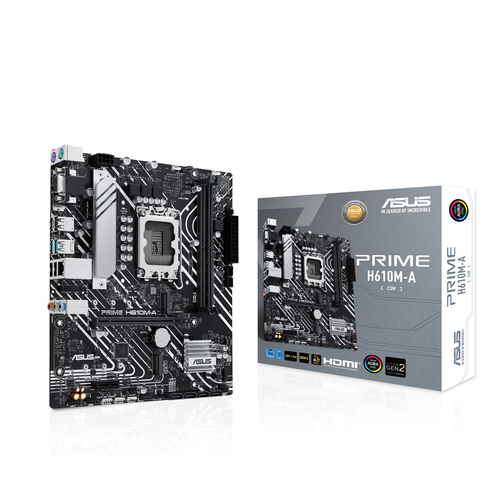

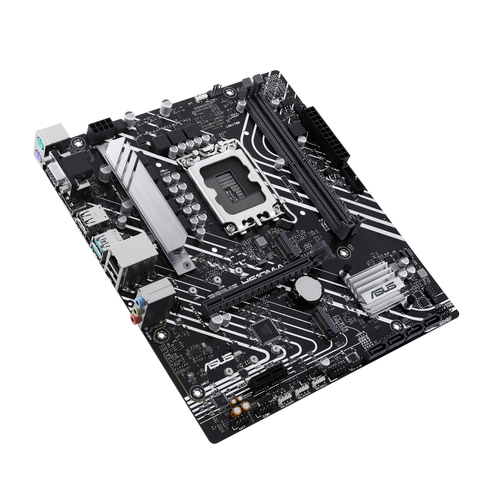

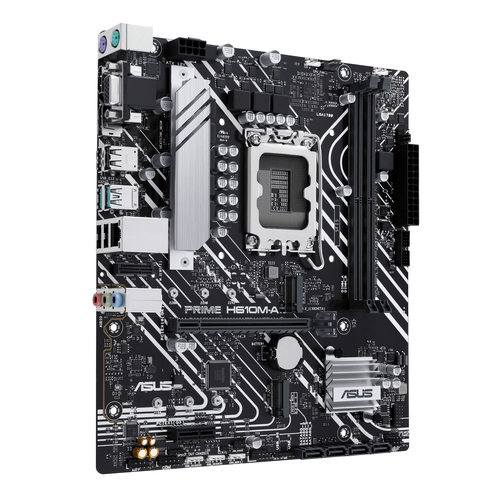

PRIME H610M-A-CSM
Model PRIME H610M-A-CSMPart no. 90MB1G20-M0EAYCEAN 4711387293911
65 specifications
- SpeedNot available
- Weight554 g
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
Overview
- Speed
- Not available
- Weight
- 554 g
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME H610M-A-CSM
- Part number
- 90MB1G20-M0EAYC
- EAN / UPC
- 4711387293911, 4711387293935
- Also known as
- ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX
Specifications
65 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1.07 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 216 mm |
| Height | 39 mm |
Other features
| Specification | Value |
|---|---|
| Weight | 554 g |
