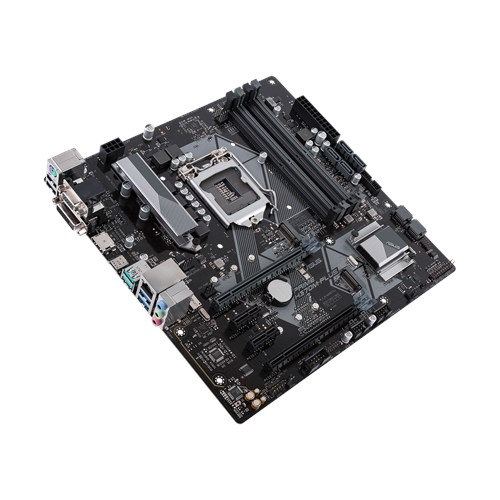

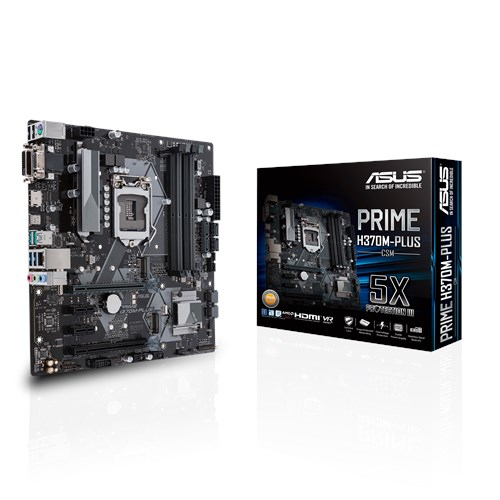

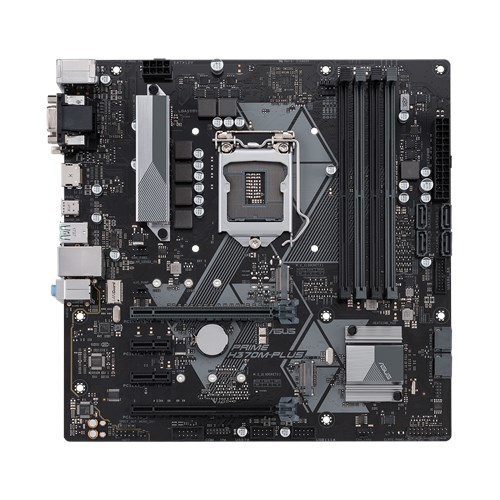

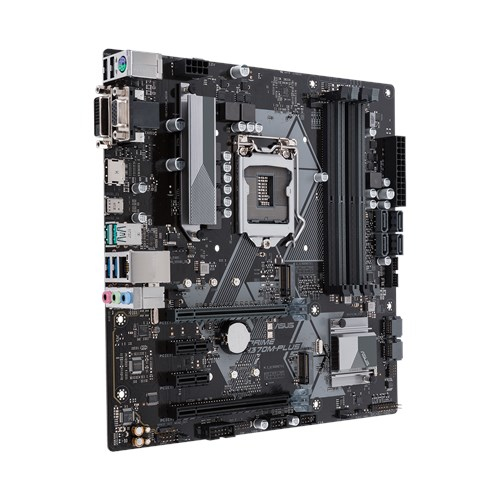

ASUS Prime H370M-PLUS/CSM
Model Prime H370M-PLUS/CSMPart no. 90MB0WC0-M0AAY0EAN 889349972823
72 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- Prime H370M-PLUS/CSM
- Part numbers
- 90MB0WC0-M0AAY0, PRIME H370M-PLUS/CSM
- EAN / UPC
- 889349972823, 4712900985733
- Also known as
- ASUS Prime H370M-PLUS/CSM Intel® H370 LGA 1151 (Socket H4) micro ATX
Specifications
72 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |

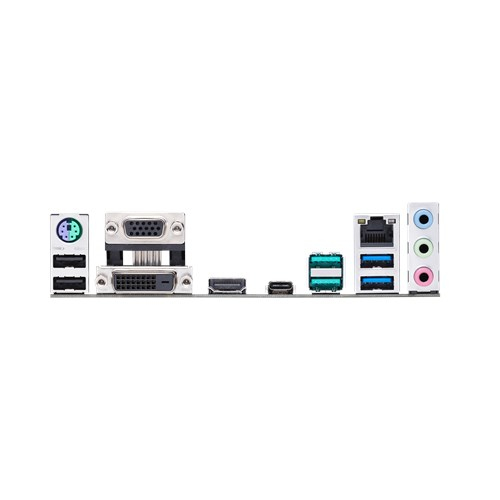

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-V |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H370 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 6.1 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.1 |
Processor special features
| Specification | Value |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |

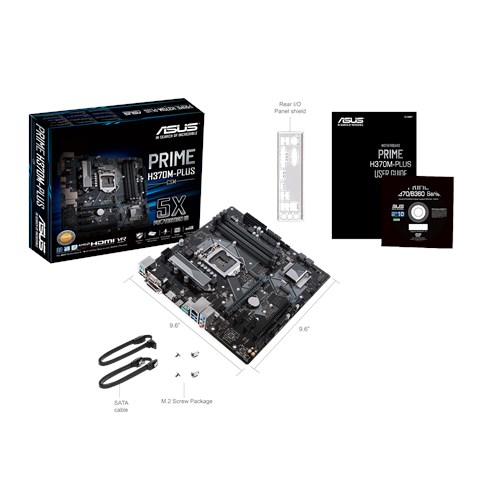

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
