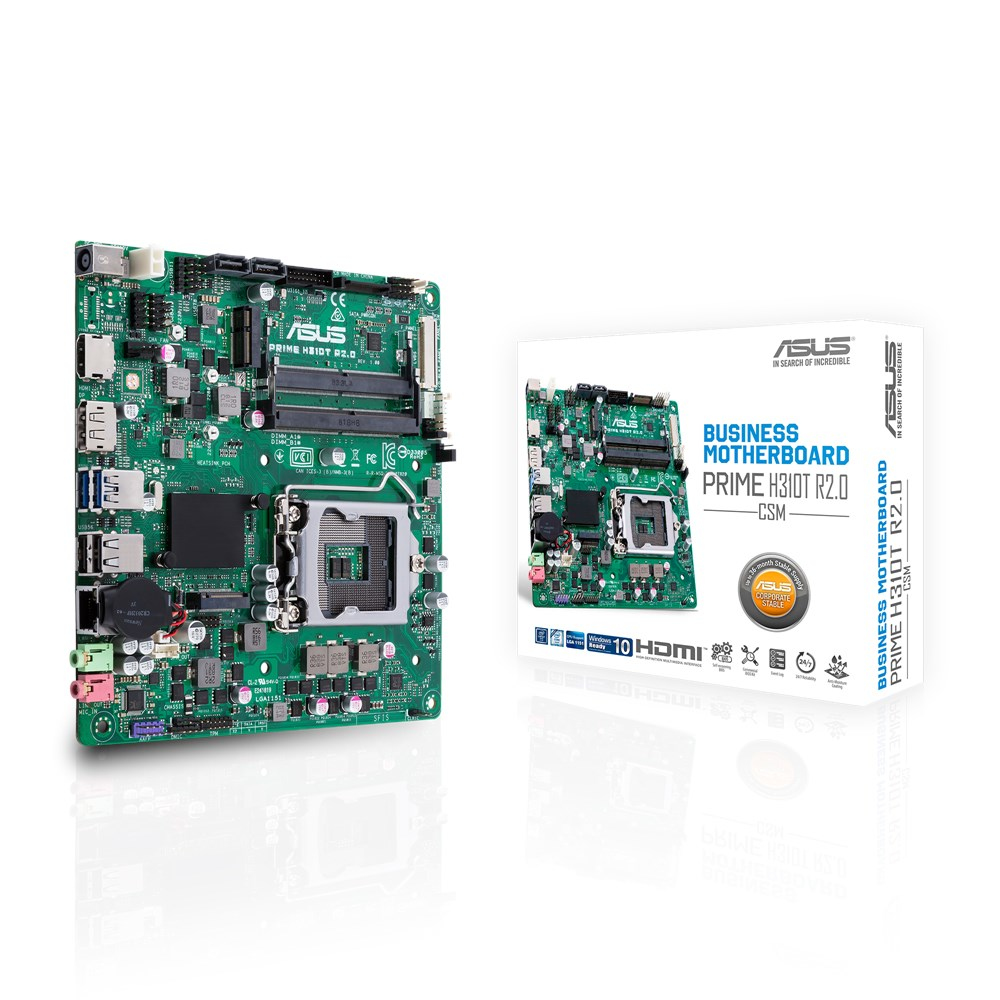

ASUS Prime H310T R2.0/CSM

ASUS Prime H310T R2.0/CSM

Model Prime H310T R2.0/CSMPart no. 90MB10K0-M0EAYCEAN 4718017218108

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
Prime H310T R2.0/CSM
Part number
90MB10K0-M0EAYC
EAN / UPC
4718017218108
Also known as
ASUS Prime H310T R2.0/CSM Intel® H310 LGA 1151 (Socket H4) mini ITX

Specifications

67 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeSO-DIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Graphics

Maximum graphics card memory1024 MB
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors2
Number of SATA II connectors0
Number of Parallel ATA connectors0
Audio connectorYes
Front panel audio connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes

Features

Component forWorkstation
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels

Expansion slots

Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.1
Clear CMOS jumperYes
Desktop Management Interface (DMI) version3.0
Plug and PlayYes
System Management BIOS (SMBIOS) version3.1

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

LVDS connectorYes
Number of processors supported1
Number of M.2 (E) slots1
