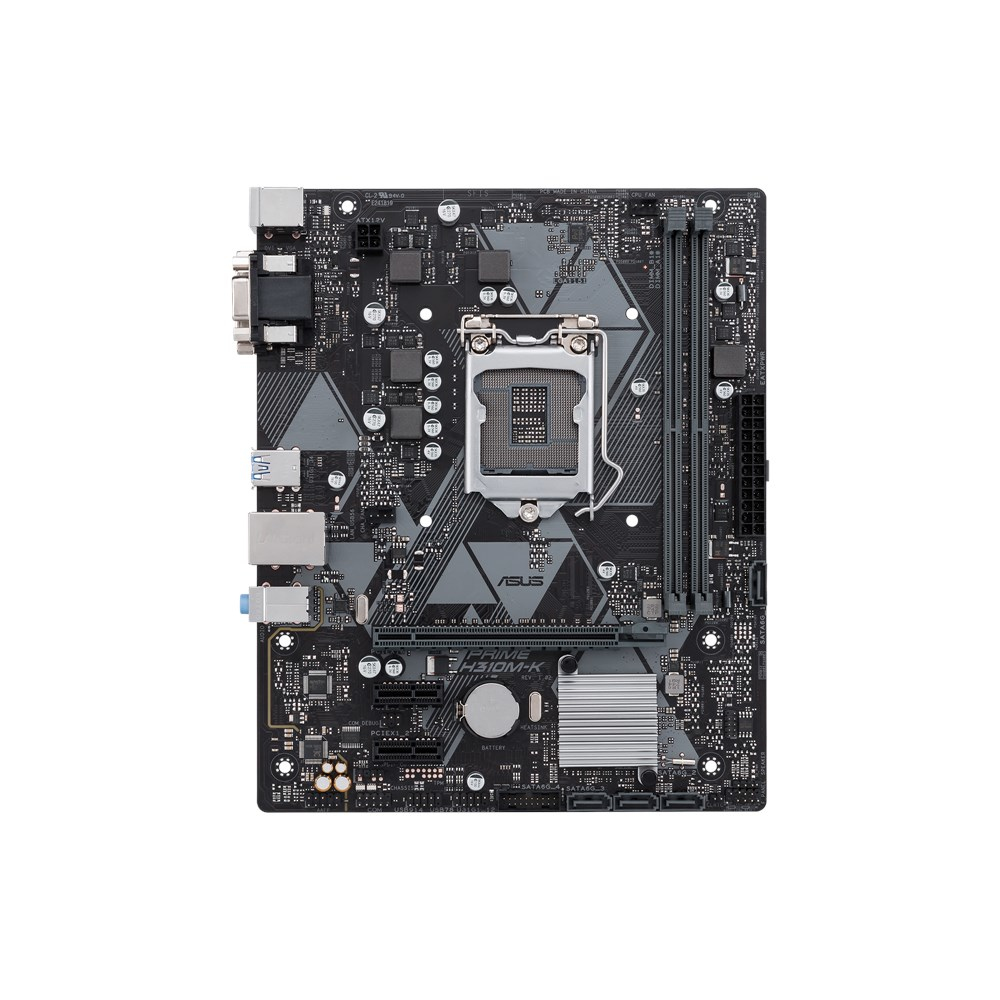

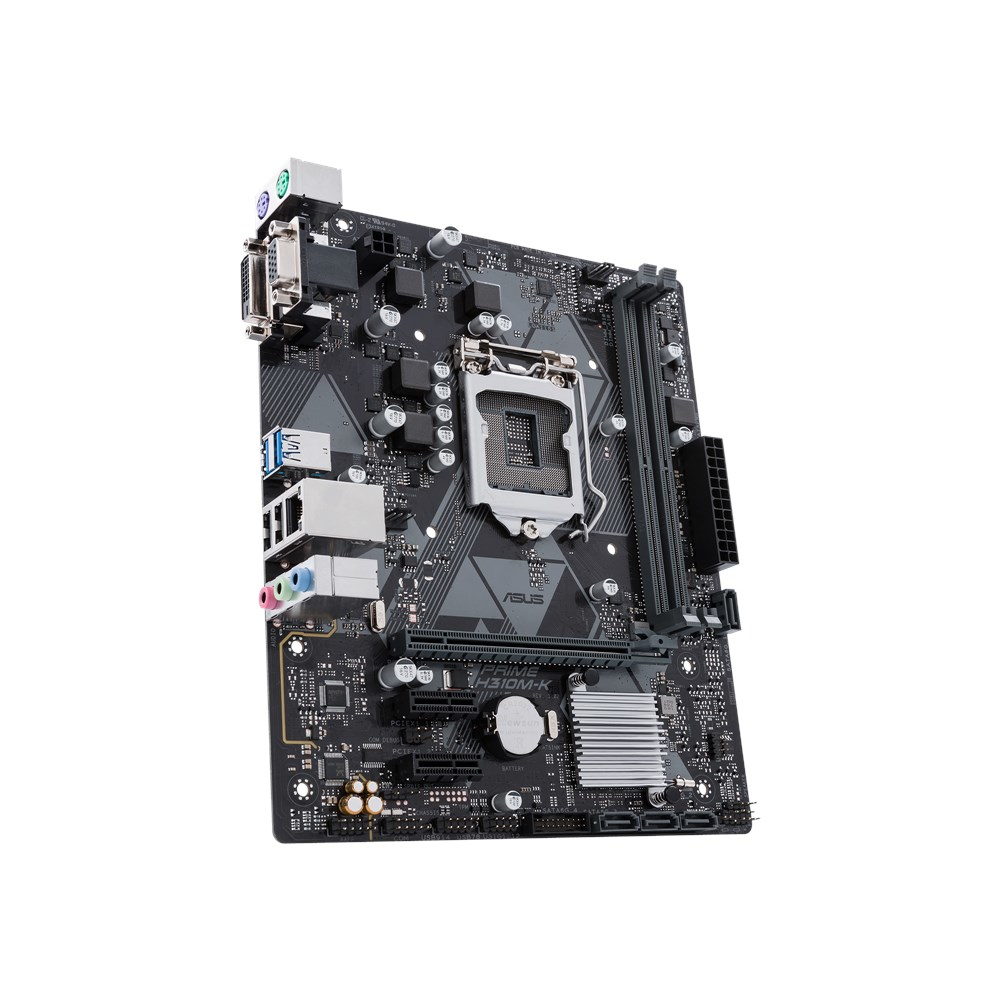

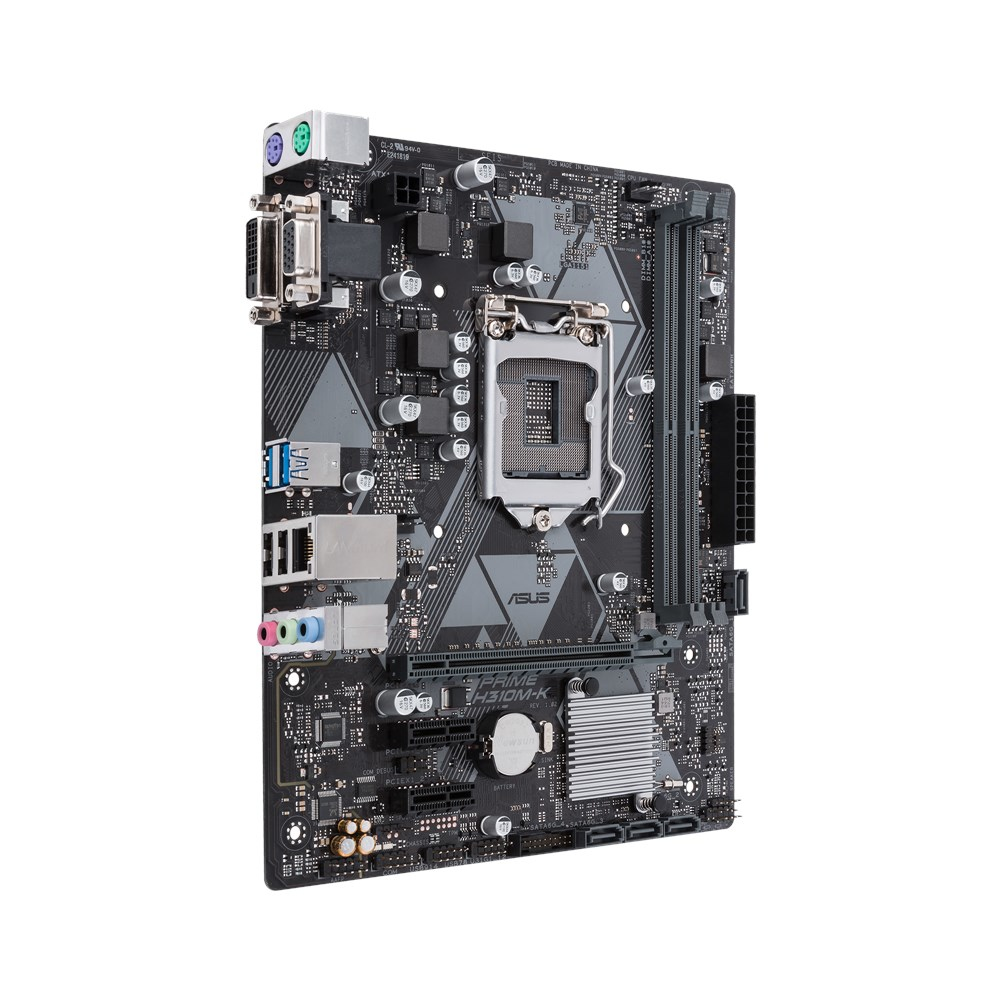

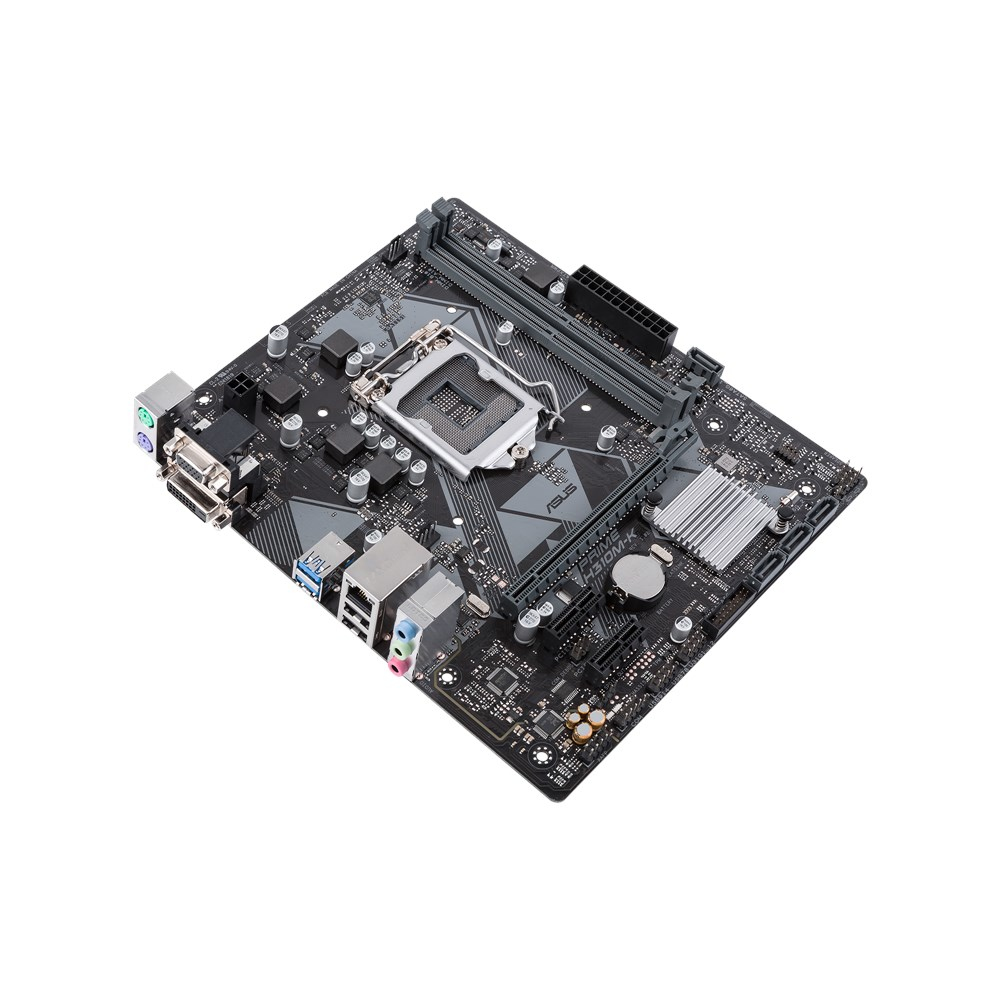

ASUS PRIME H310M-K

ASUS PRIME H310M-K

Model PRIME H310M-KPart no. 90MB0X80-M0EAY0EAN 889349906569

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
  • BIOS typeUEFI AMI
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
BIOS type
UEFI AMI
Brand
ASUS
Category
Motherboard
Model
PRIME H310M-K
Part numbers
90MB0X80-M0EAY0, PRIME H310M-K
EAN / UPC
889349906569, 4712900906561
Also known as
ASUS PRIME H310M-K Intel® H310 LGA 1151 (Socket H4) micro ATX

Specifications

63 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Unbuffered memoryYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version6.1
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width226 mm
Depth185 mm

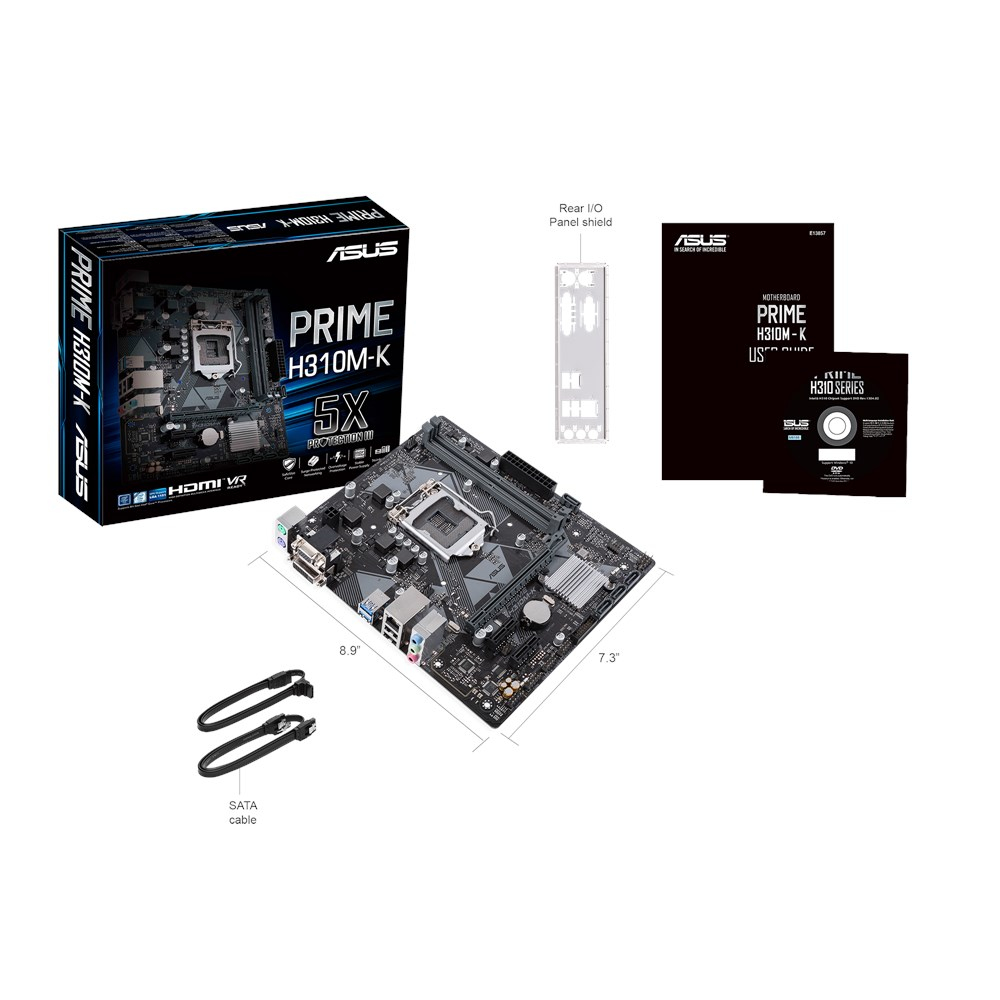

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
