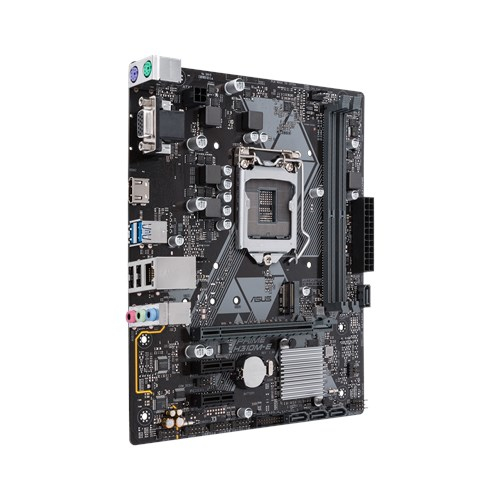

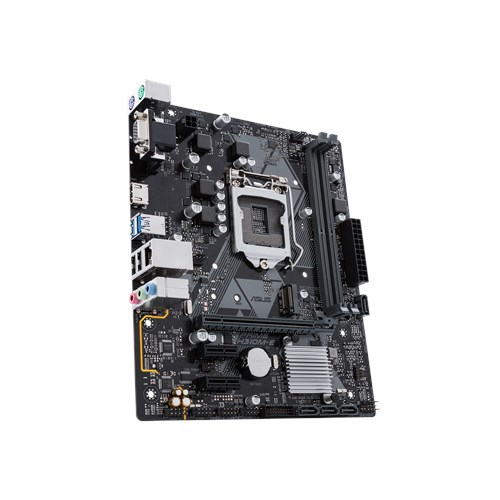

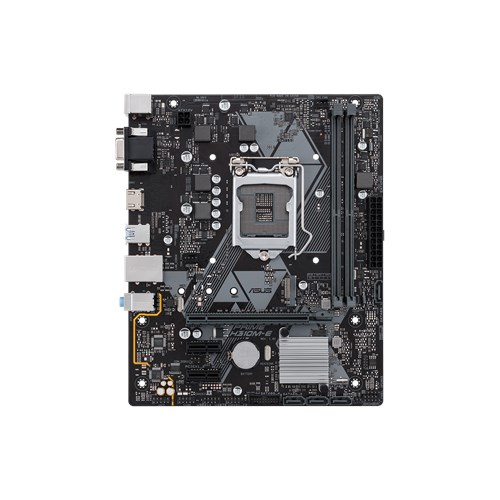

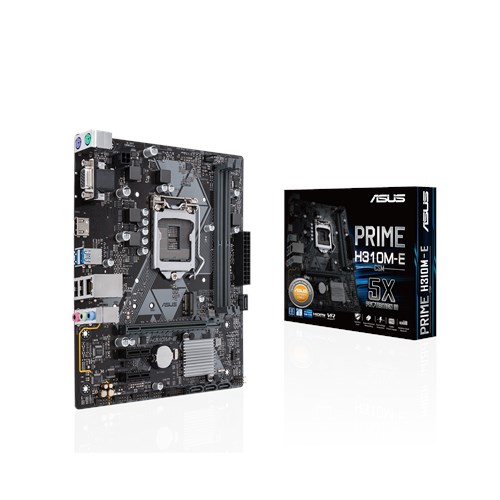

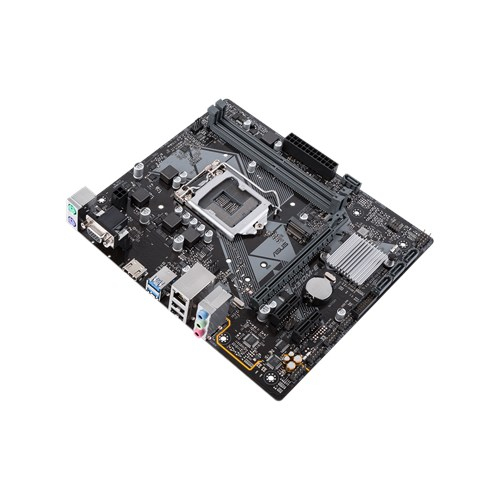

ASUS PRIME H310M-E/CSM

ASUS PRIME H310M-E/CSM

Model PRIME H310M-E/CSMPart no. 90MB0X90-M0EAYCEAN 4712900990522

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors6
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
6
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
PRIME H310M-E/CSM
Part number
90MB0X90-M0EAYC
EAN / UPC
4712900990522
Also known as
ASUS PRIME H310M-E/CSM Intel® H310 LGA 1151 (Socket H4) mini ATX

Specifications

66 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
12V power connectorYes
Number of COM connectors1

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4b
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.1
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost Technology2.0

Weight & dimensions

Width226 mm
Depth185 mm

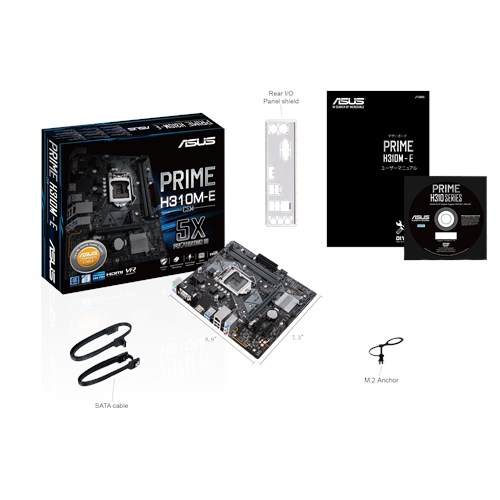

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
