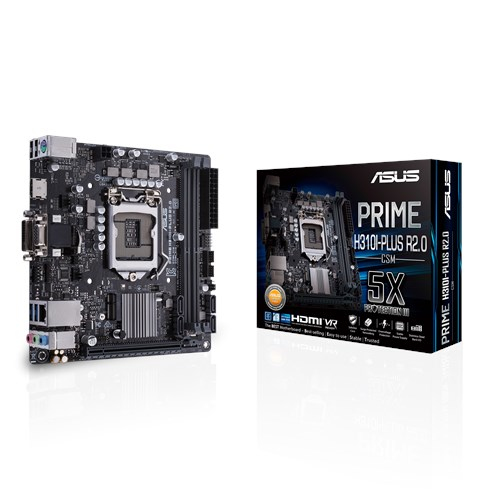

ASUS PRIME H310I-PLUS R2.0/CSM

ASUS PRIME H310I-PLUS R2.0/CSM

Model PRIME H310I-PLUS R2.0/CSMPart no. 90MB1090-M0EAYCEAN 4718017155762

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
PRIME H310I-PLUS R2.0/CSM
Part number
90MB1090-M0EAYC
EAN / UPC
4718017155762
Also known as
ASUS PRIME H310I-PLUS R2.0/CSM Intel® H310 LGA 1151 (Socket H4) mini ITX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express, PCI Express 3.0, SATA

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels8.0 channels
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.1
Clear CMOS jumperYes
Plug and PlayYes
System Management BIOS (SMBIOS) version3.1

Processor special features

Intel® InTru™ 3D TechnologyYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content
