ASUS PRIME H270-PLUS/CSM

ASUS PRIME H270-PLUS/CSM

Model PRIME H270-PLUS/CSMPart no. 90MB0S90-M0AAY0

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportCrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
PRIME H270-PLUS/CSM
Part number
90MB0S90-M0AAY0
Also known as
ASUS PRIME H270-PLUS/CSM Intel® H270 LGA 1151 (Socket H4)

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportCrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes

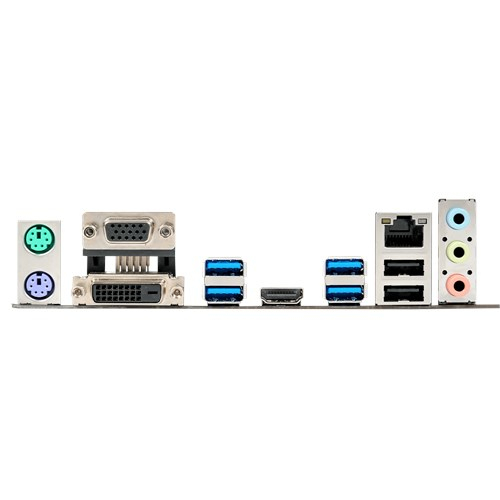

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard chipset familyIntel
Motherboard chipsetIntel® H270
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,

Expansion slots

PCI Express x1 (Gen 3.x) slots4
PCI Express x16 slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version6.0
Clear CMOS jumperYes

Packaging content

Cables includedSATA
ManualYes

Other features

S/PDIF in connectorYes
