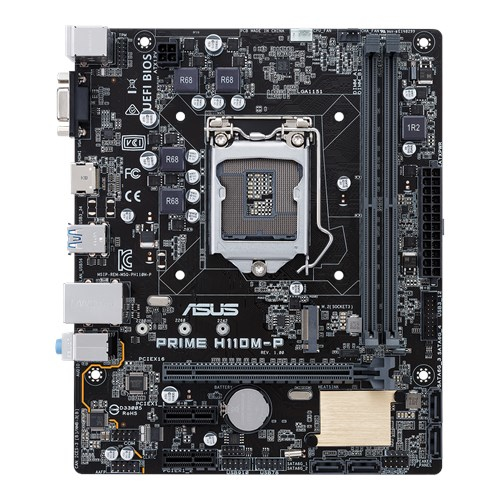

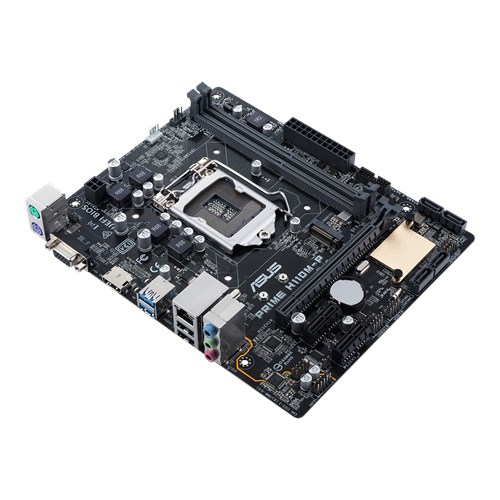

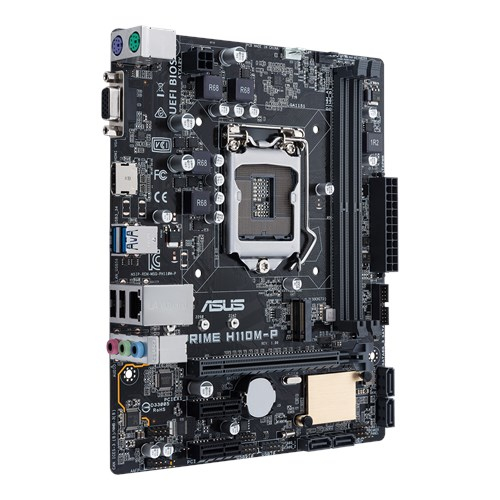

ASUS PRIME H110M-P

ASUS PRIME H110M-P

Model PRIME H110M-PPart no. 90MB0UR0-M0EAY0EAN 889349731260

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
  • BIOS typeUEFI AMI
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
BIOS type
UEFI AMI
Brand
ASUS
Category
Motherboard
Model
PRIME H110M-P
Part number
90MB0UR0-M0EAY0
EAN / UPC
889349731260, 4712900731262
Also known as
ASUS PRIME H110M-P Intel® H110 LGA 1151 (Socket H4) micro ATX

Specifications

51 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1

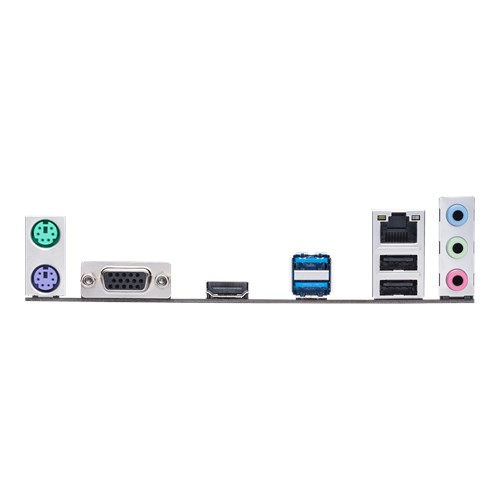

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0

Network

Ethernet LANYes
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H110
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
Clear CMOS jumperYes

Weight & dimensions

Width210.8 mm
Depth173.5 mm

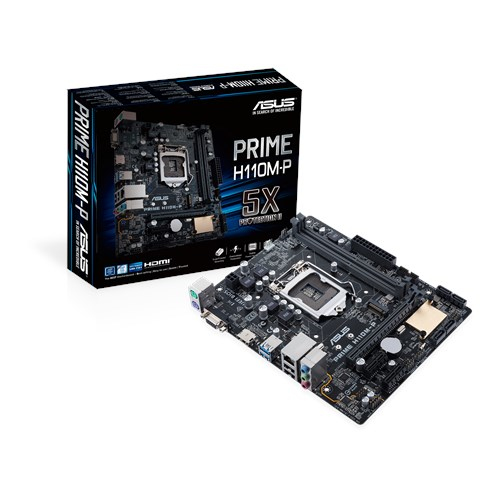

Packaging content

Cables includedSATA
ManualYes
