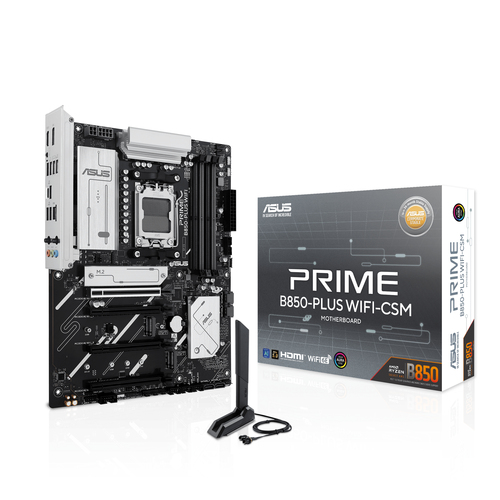

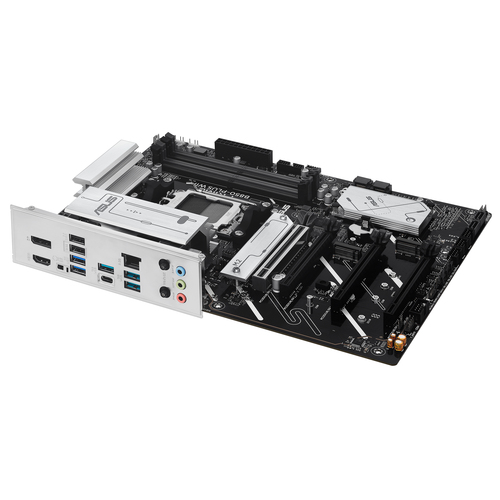

ASUS PRIME B850-PLUS WIFI-CSM

ASUS PRIME B850-PLUS WIFI-CSM

Model PRIME B850-PLUS WIFI-CSMPart no. 90MB1L80-M0EAYC

77 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • ColourBlack, White
  • Processor manufacturerAMD
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Colour
Black, White
Processor manufacturer
AMD
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
ASUS
Category
Motherboard
Model
PRIME B850-PLUS WIFI-CSM
Part number
90MB1L80-M0EAYC
Also known as
ASUS PRIME B850-PLUS WIFI-CSM AMD B850 Socket AM5 ATX

Specifications

77 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Maximum internal memory256 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
12V power connectorYes
Number of COM connectors1
TPM connectorYes
RGB LED pin headerYes

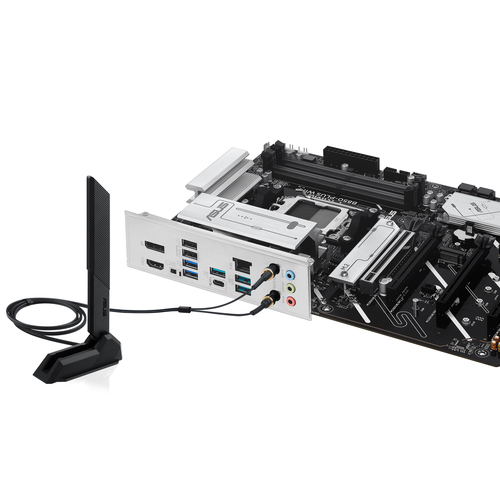

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
WiFi-AP antenna jack1

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Audio output channels7.1 channels
Product colourBlack, White
Windows operating systems supportedWindows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Antenna includedYes
Cables includedSATA
Screws includedYes
