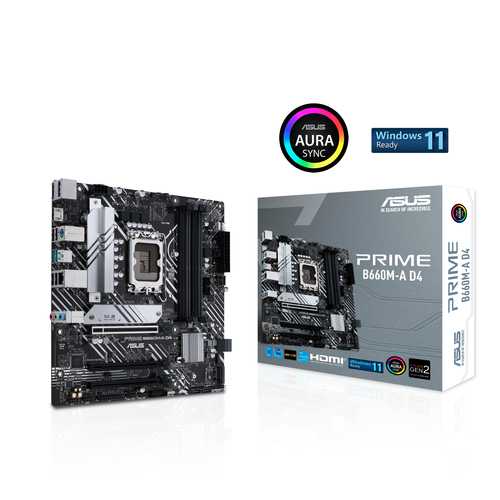

PRIME B660M-A D4
Model PRIME B660M-A D4Part no. 90MB19K0-M0EAY0EAN 195553508018
71 specifications
- Weight819 g
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Weight
- 819 g
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME B660M-A D4
- Part numbers
- 90MB19K0-M0EAY0, 90MB19K0-M0UAYC
- EAN / UPC
- 195553508018, 4711081508014
- Also known as
- ASUS PRIME B660M-A D4 Intel B660 LGA 1700 micro ATX
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 60 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Weight | 819 g |
