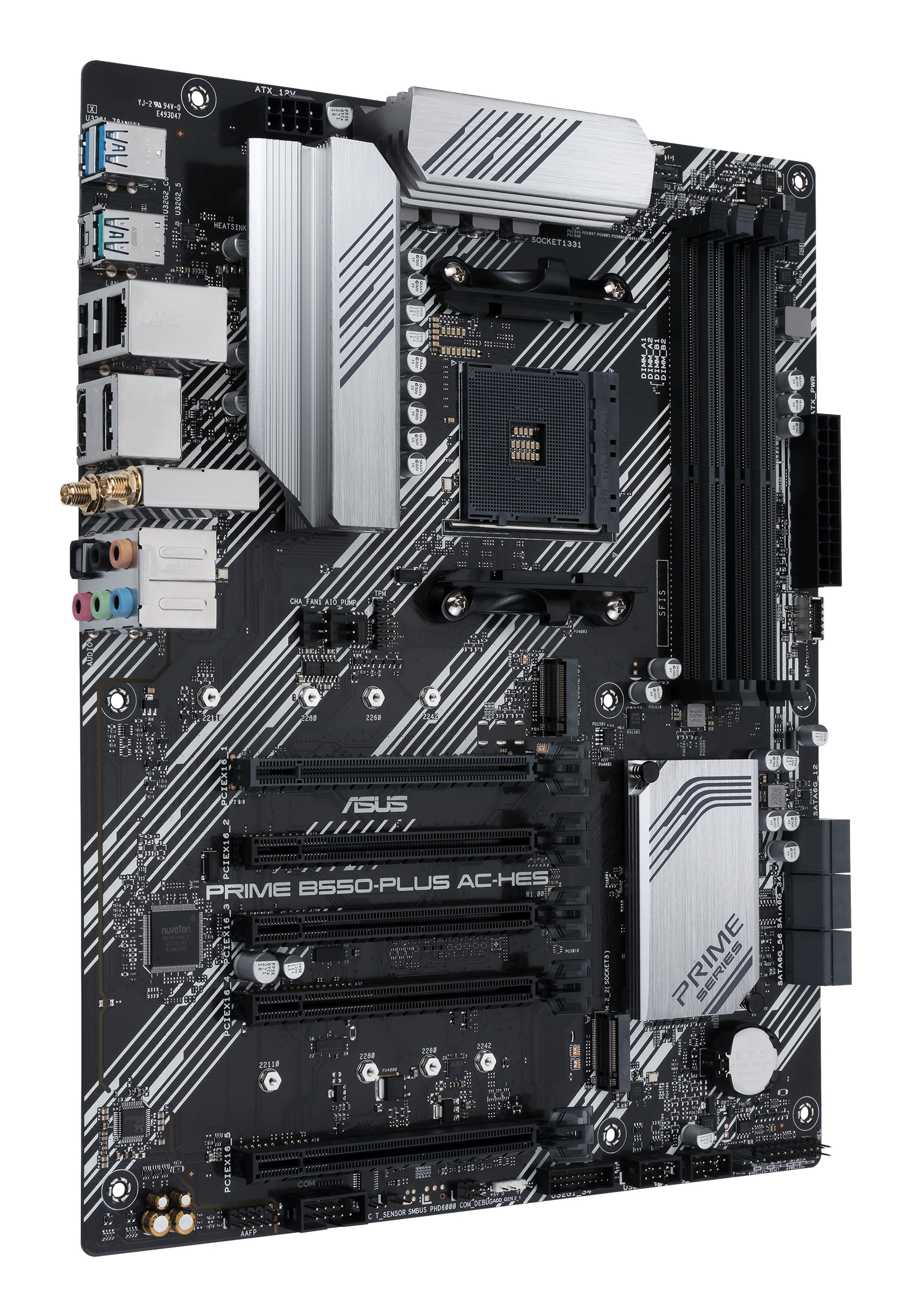

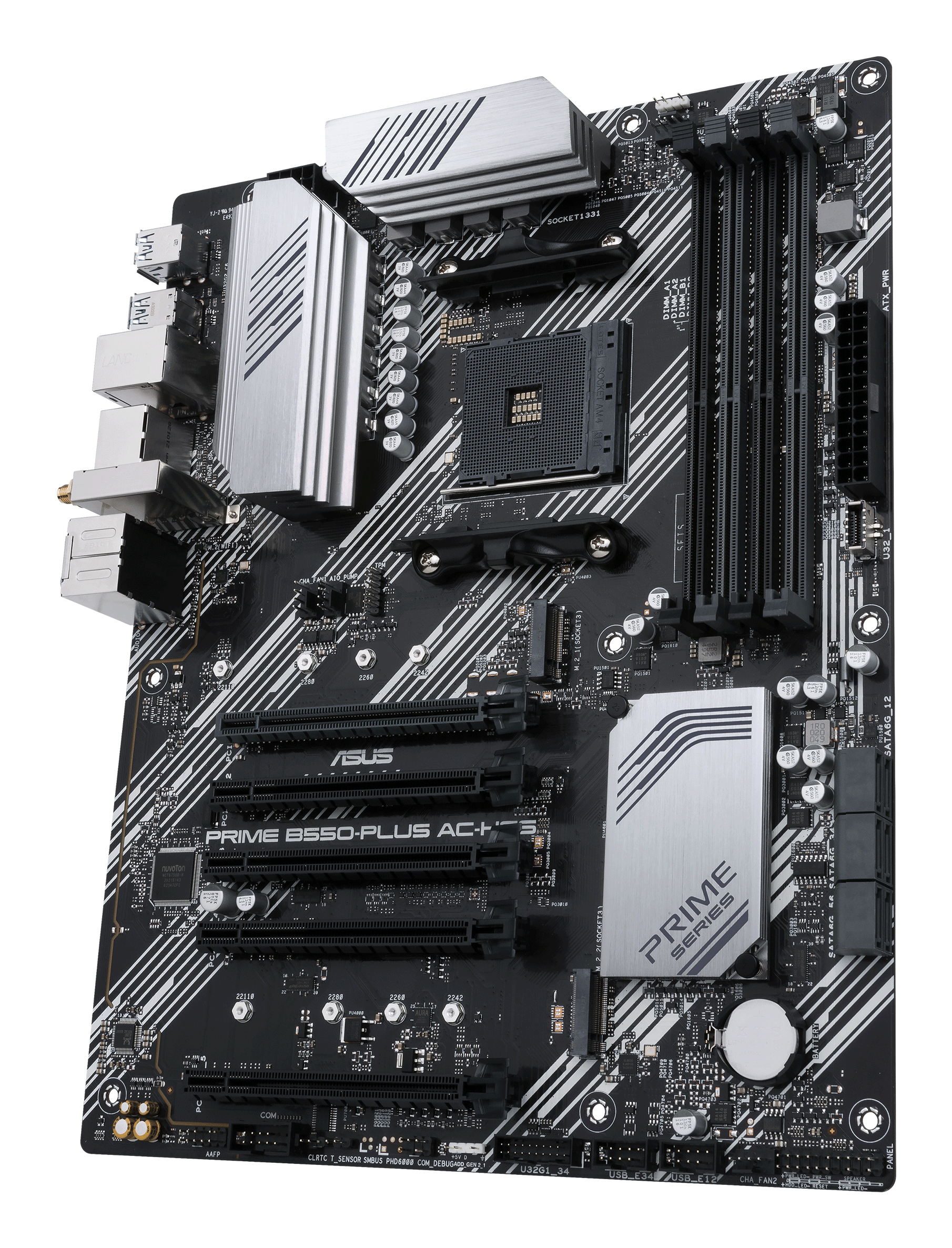

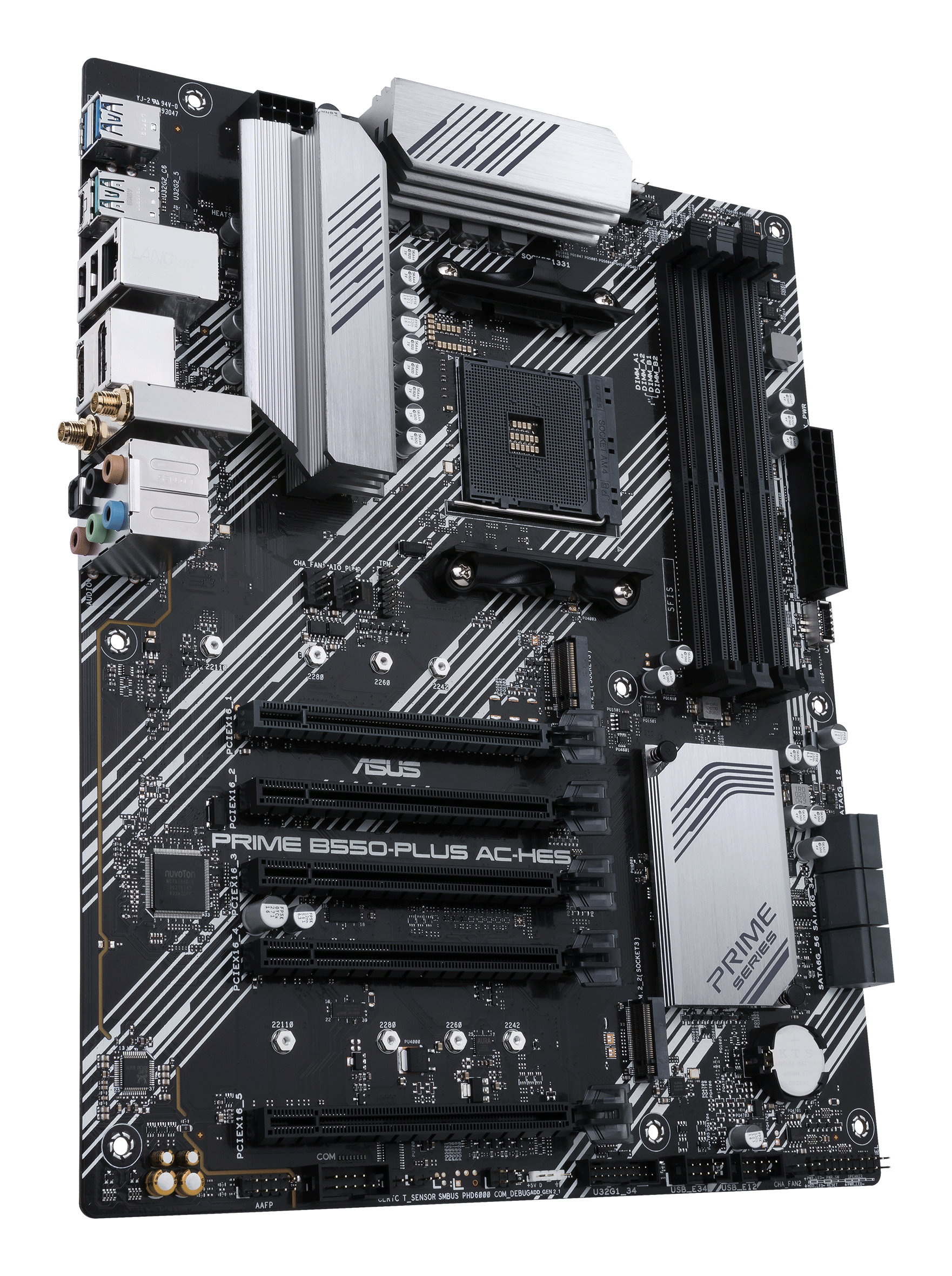

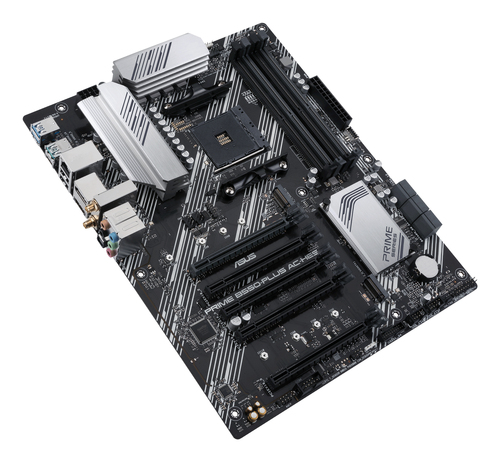

PRIME B550-PLUS AC-HES
Model PRIME B550-PLUS AC-HESEAN 195553397162
67 specifications
- SpeedWi-Fi 5 (802.11ac)
- ColourMulticolour
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Colour
- Multicolour
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- Brand
- ASUS
- Category
- Motherboard
- Model
- PRIME B550-PLUS AC-HES
- Part number
- PRIME B550-PLUS AC-HES
- EAN / UPC
- 195553397162
- Also known as
- ASUS PRIME B550-PLUS AC-HES motherboard AMD B550 Socket AM4 ATX
Specifications
67 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4866,4800,4600,4466,4400,4333,4266,4200,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

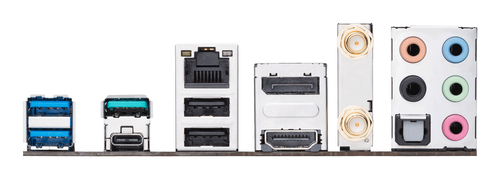

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2242 |
| 2nd M.2 largest key size | 2260 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 largest key size | 22110 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
