Prime B365M-A
Model Prime B365M-APart no. 90MB10N0-M0EAY0EAN 192876239032
72 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 5, 10
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- Prime B365M-A
- Part number
- 90MB10N0-M0EAY0
- EAN / UPC
- 192876239032, 4718017239035
- Also known as
- ASUS Prime B365M-A LGA 1151 (Socket H4) micro ATX
Specifications
72 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel Pentium G |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |
| TPM connector | Yes |

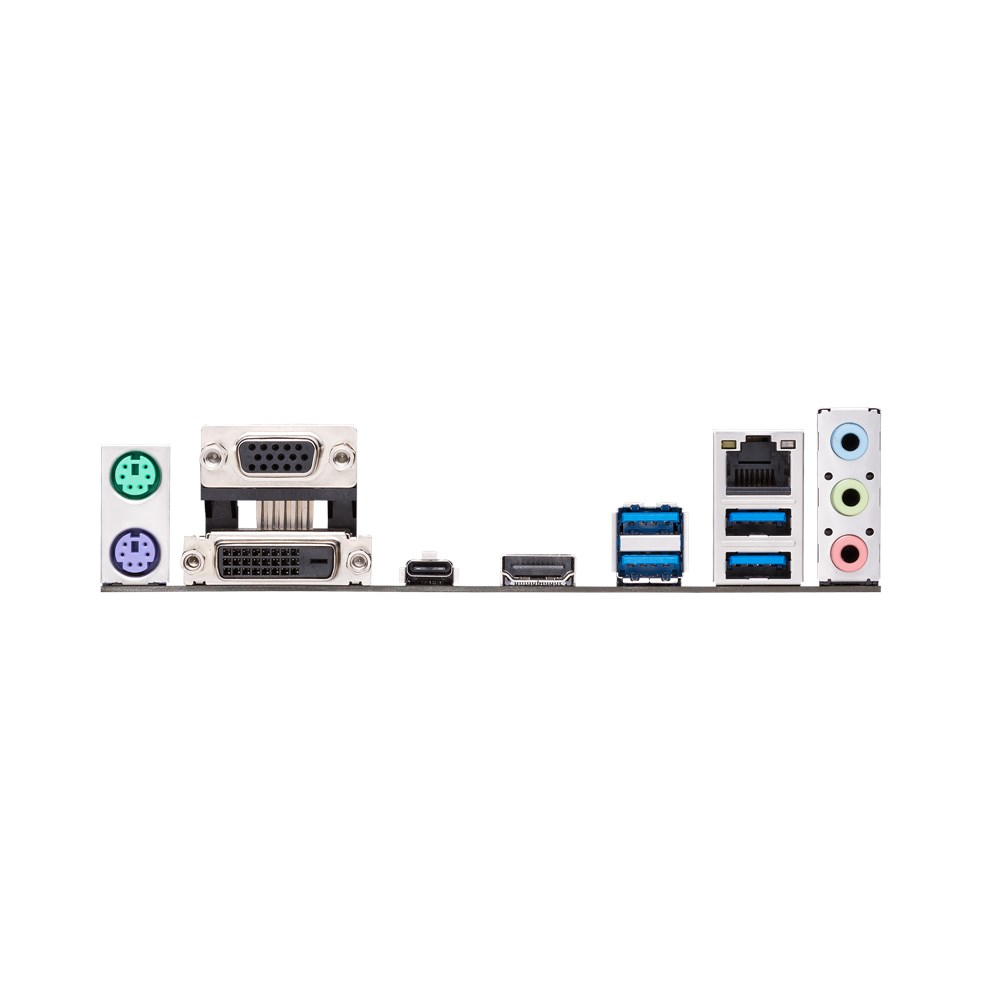

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.1 |
| Clear CMOS jumper | Yes |
| Plug and Play | Yes |
| System Management BIOS (SMBIOS) version | 3.1 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 218 mm |

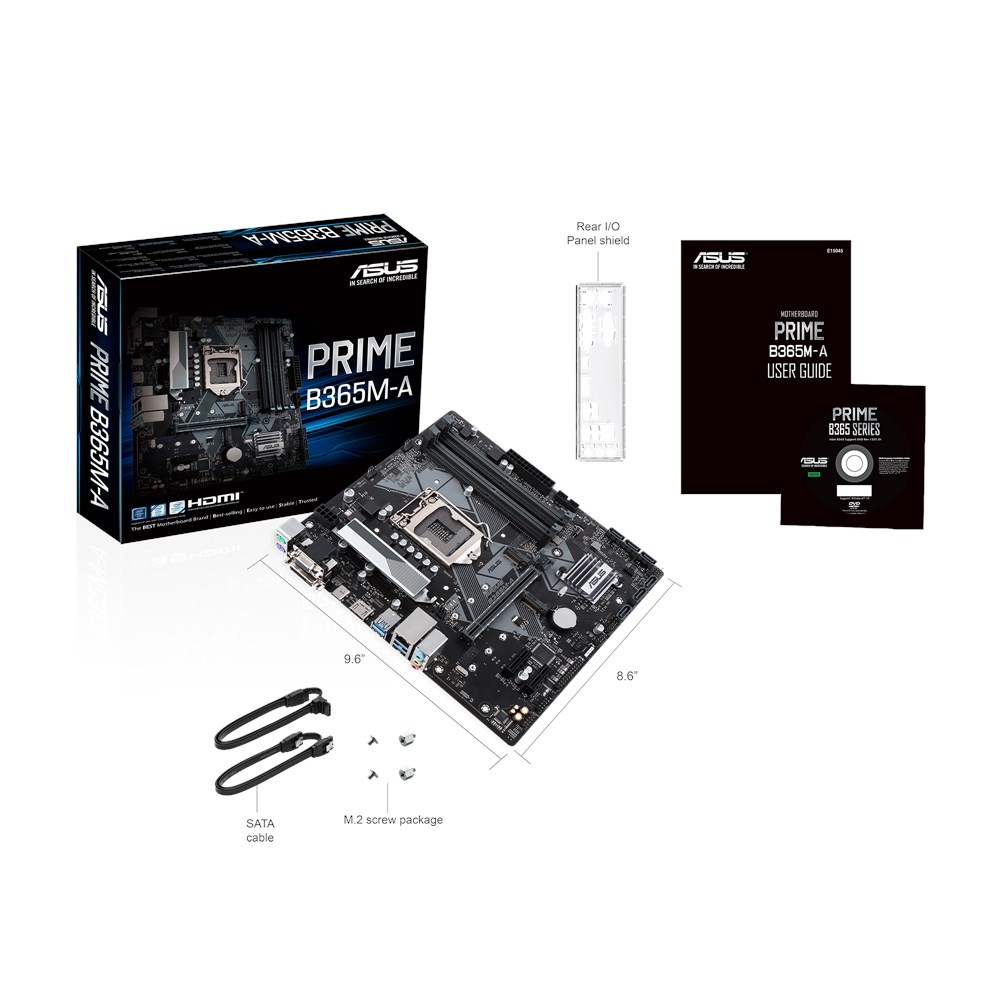

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
