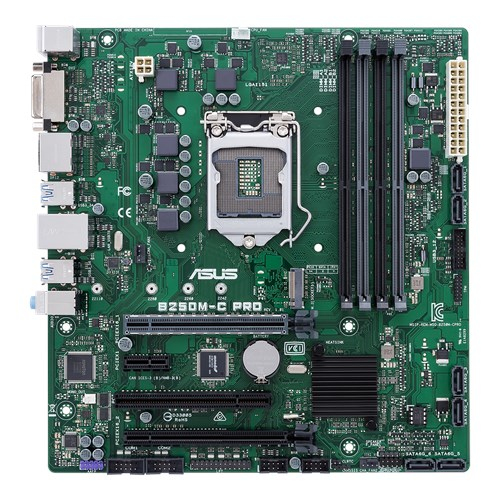

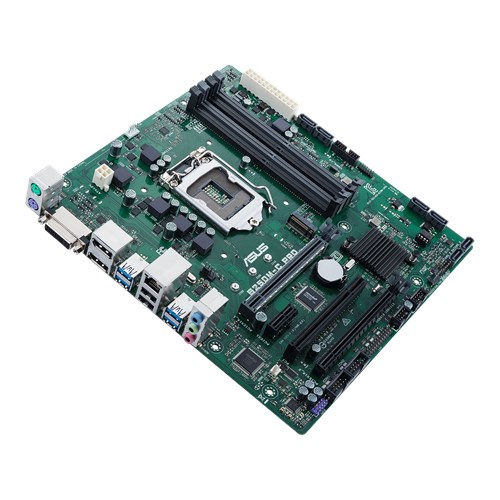

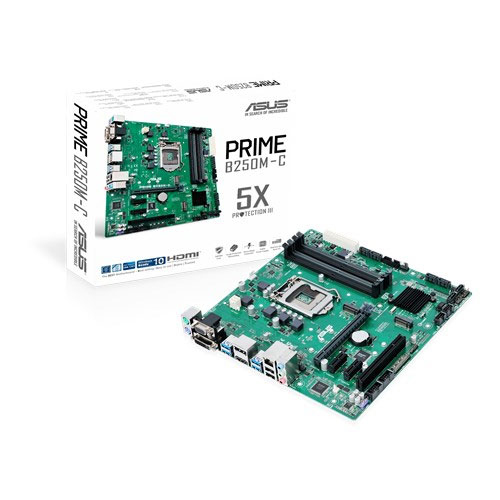

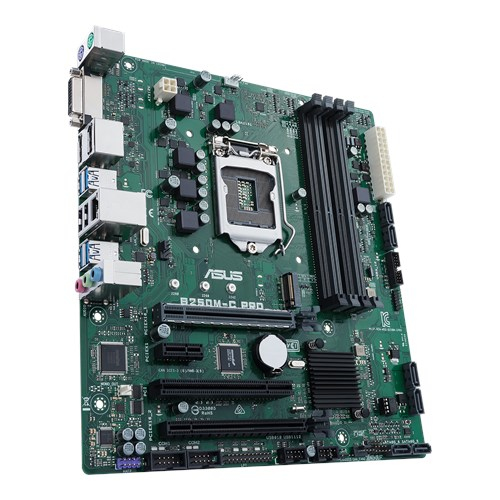

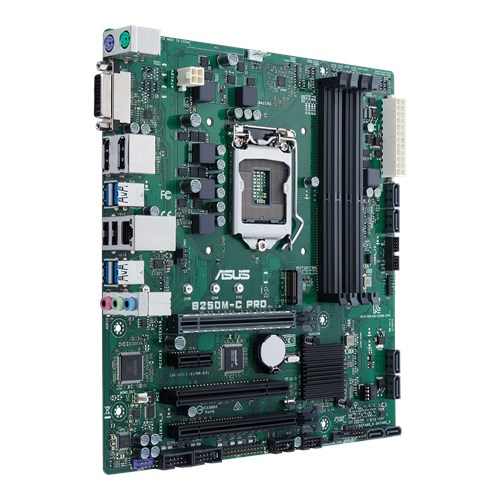

ASUS Prime B250M-C PRO/CSM

Model Prime B250M-C PRO/CSMPart no. 90MB0UK0-M0ECYCEAN 889349774694

88 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: Prime B250M-C PRO/CSM
Part number: 90MB0UK0-M0ECYC
EAN / UPC: 889349774694, 4712900774696
Also known as: ASUS Prime B250M-C PRO/CSM Intel® B250 LGA 1151 (Socket H4) micro ATX

88 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Pentium® Dual-Core, Intel Pentium G
Intel Core i3/i5/i7/i9 series	i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Memory voltage	1.35 V
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III

Specification	Value
Maximum graphics card memory	1024 MB
Parallel processing technology support	CrossFireX
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of SATA connectors	6
Number of Parallel ATA connectors	1
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
Number of COM connectors	2
Parallel connector	Yes
TPM connector	Yes

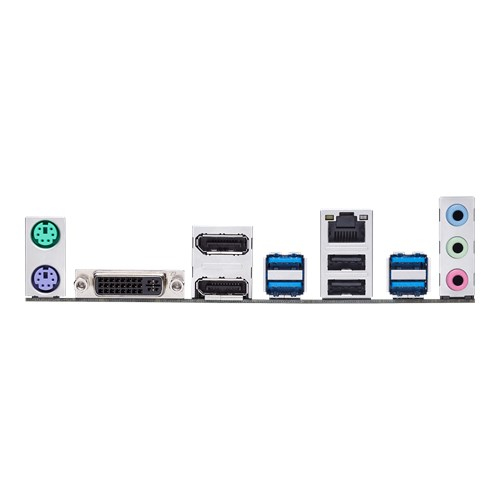

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	1
DisplayPorts quantity	2
Headphone outputs	1
Microphone in	Yes

Specification	Value
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® B250
Audio chip	Realtek ALC887
Audio output channels	7.1 channels
Power source type	ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional
Certification	CE

Specification	Value
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
ACPI version	5.0
Desktop Management Interface (DMI) version	3.0
System Management BIOS (SMBIOS) version	3.0

Specification	Value
Intel Extreme Memory Profile (XMP)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Trusted Platform Module (TPM)	Yes

Specification	Value
Width	244 mm
Depth	231 mm

Specification	Value
Quick installation guide	Yes
