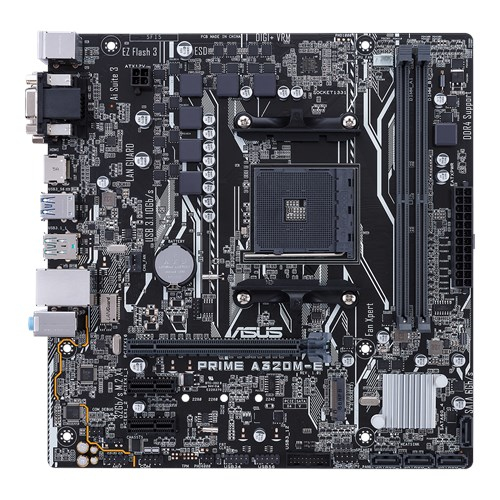

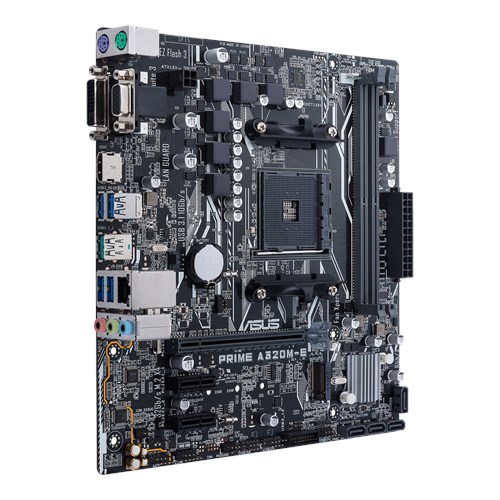

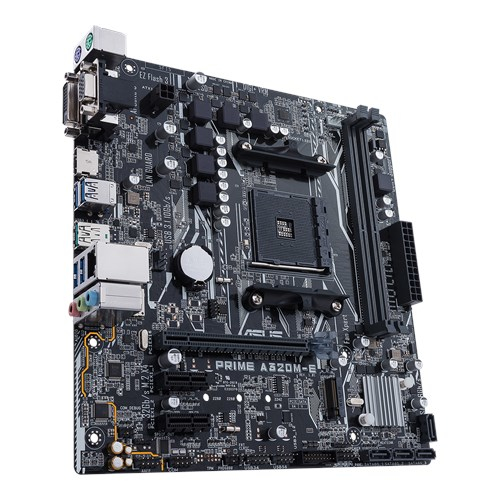

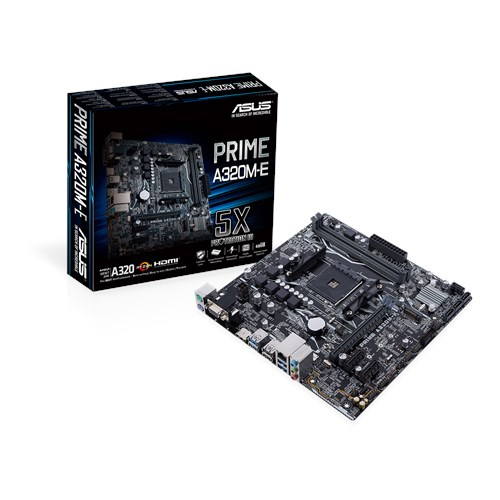

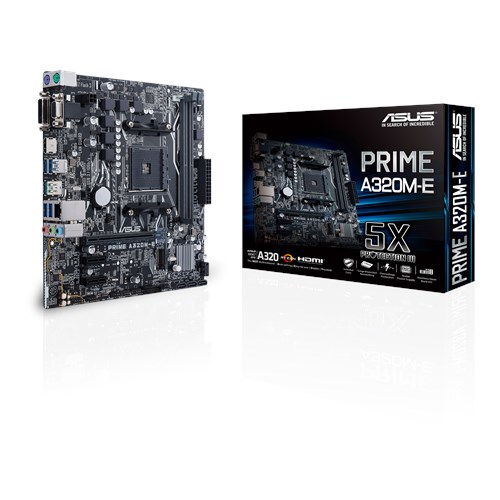

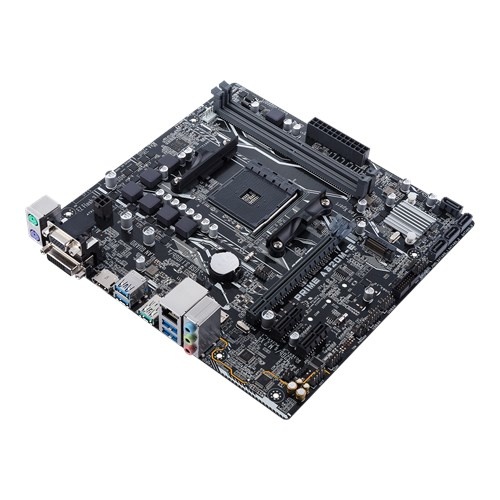

ASUS PRIME A320M-E

ASUS PRIME A320M-E

Model PRIME A320M-EEAN 889349801260

57 specifications
  • ProcessorA320
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesPCI Express 2.0, PCI Express 3.0
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors4
See all specifications

Overview

Processor
A320
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
PCI Express 2.0, PCI Express 3.0
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
4
Brand
ASUS
Category
Motherboard
Model
PRIME A320M-E
Part numbers
PRIME A320M-E, 90MB0V10-M0EAY0
EAN / UPC
889349801260, 4712900801262
Also known as
ASUS PRIME A320M-E motherboard AMD A320 Socket AM4 micro ATX

Specifications

57 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Supported processor socketsSocket AM4
Processor modelA320
Processor cores8

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesPCI Express 2.0, PCI Express 3.0
RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors4
Number of SATA connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors1

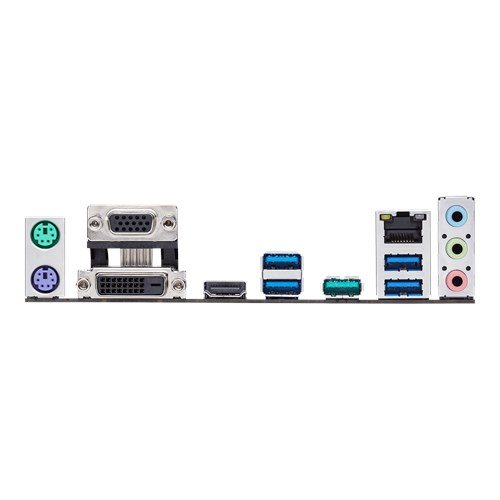

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio chipRealtek ALC887
Cooling typeActive
Windows operating systems supportedWindows 10 x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x4 (Gen 2.x) slots1
PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.1
Clear CMOS jumperYes

Weight & dimensions

Width22.6 mm
Depth22.1 mm

Other features

PCI Express x4 (Gen 3.x) slots1
Processor familyAMD Athlon™ X4
Processor generation7th Generation AMD Athlon™ X4
