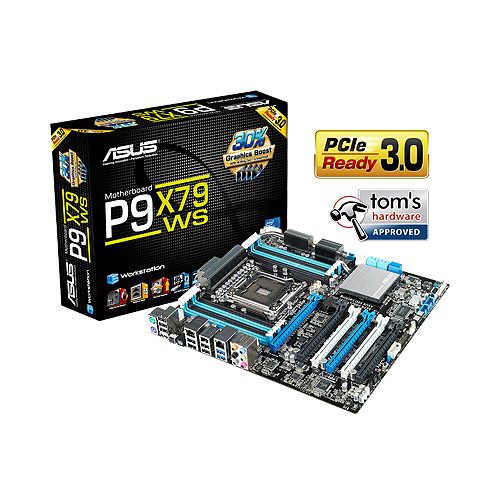

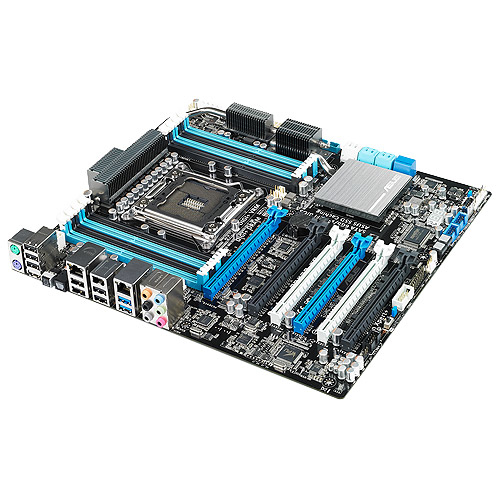

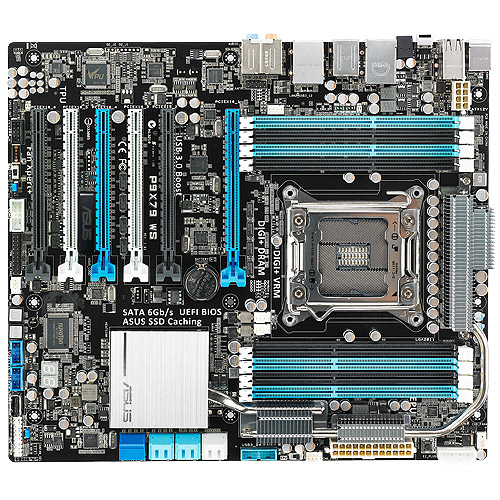

ASUS P9X79 WS

ASUS P9X79 WS

Model P9X79 WSPart no. 90-MSVDR0-G0UAY00ZEAN 5712505297278

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
P9X79 WS
Part numbers
90-MSVDR0-G0UAY00Z, 90-MSVDR0-G0EAY0YZ
EAN / UPC
5712505297278, 4719543184714, 5052181559728, 6108391847120 +9 more
Also known as
ASUS P9X79 WS Intel X79 LGA 2011 (Socket R)

Specifications

62 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI, 4-Way SLI, Quad-GPU CrossFireX
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes

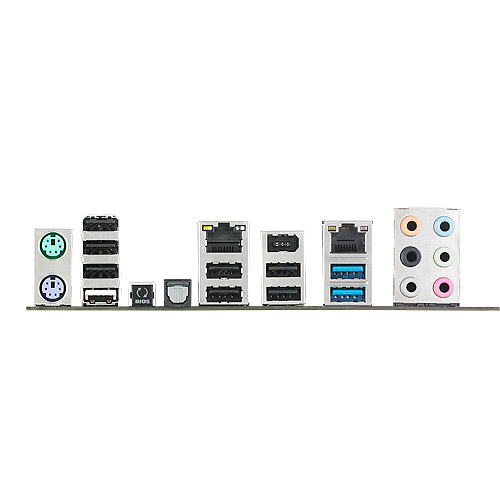

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82574L, Intel® 82579V
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard chipset familyIntel
Motherboard chipsetIntel X79
Audio chipRealtek ALC898
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 slots6
PCI Express slots version3.0

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width304.8 mm
Depth266.7 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
