ASUS P9X79 LGA 2011 (Socket R) ATX

ASUS P9X79 LGA 2011 (Socket R) ATX

Model P9X79Part no. 90-MIBHE0-G0EAY00ZEAN 6108391847366

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors4
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
4
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
P9X79
Part numbers
90-MIBHE0-G0EAY00Z, 90-MIBHE0-G0AAY00Z
EAN / UPC
6108391847366, 200002332264, 5053106832032, 610839184736 +3 more
Also known as
ASUS P9X79 LGA 2011 (Socket R) ATX

Specifications

61 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2400 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes

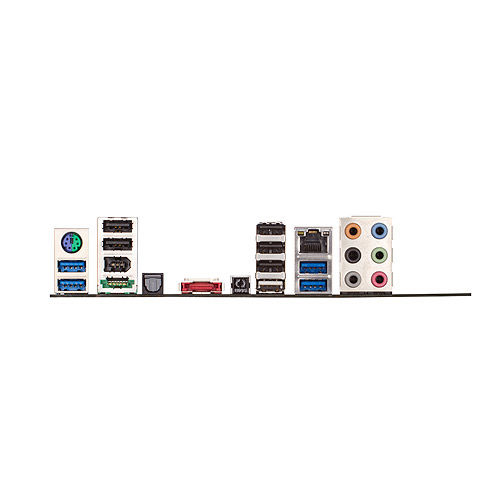

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82579V
Networking features10/100/1000 Mbit/sec

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots3
PCI Express slots version3.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
