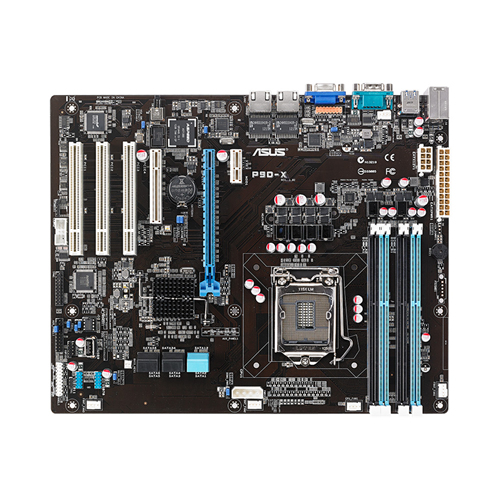

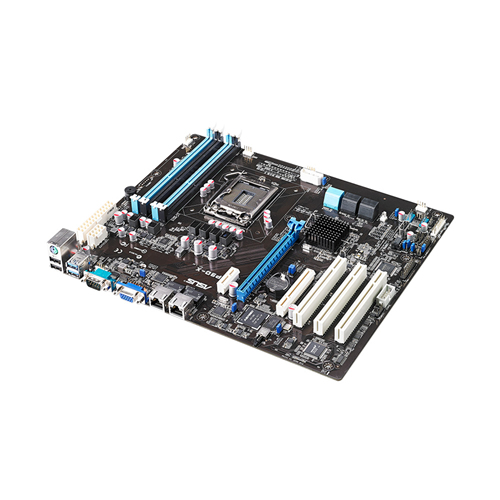

ASUS P9D-X ATX

ASUS P9D-X ATX

Model P9D-XPart no. 90SB0380-M0UAY5EAN 5054629415856

48 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics card memory64 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card memory
64 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
P9D-X
Part numbers
90SB0380-M0UAY5, 90SB0380-M0UAY0
EAN / UPC
5054629415856, 886227505784, 886227559497, 4716659505785 +4 more
Also known as
ASUS P9D-X ATX

Specifications

48 specifications in 13 groups

Processor

Processor manufacturerIntel
Intel Xeon seriesE3-1200

Memory

Supported memory typesDDR3-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card memory64 MB

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors2
Number of SATA II connectors4
ATX Power connector (24-pin)Yes
Number of chassis fan connectors5
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

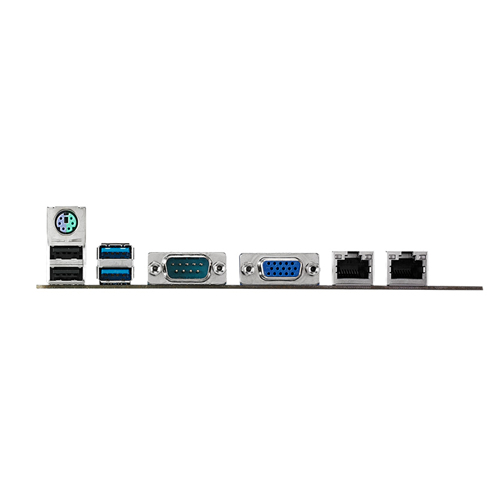

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
CertificationCE C-Tick FCC(Class B)

Expansion slots

PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots1
PCI slots3

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)20 - 70%

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
User guideYes
Bundled softwareASWM Enterprise

Other features

Supported UDIMM clock speeds1333,1600 MHz
Supported UDIMM module capacity2GB, 4GB, 8GB
Maximum UDIMM memory32 GB
Number of DIMM slots4
Number of processors supported1
