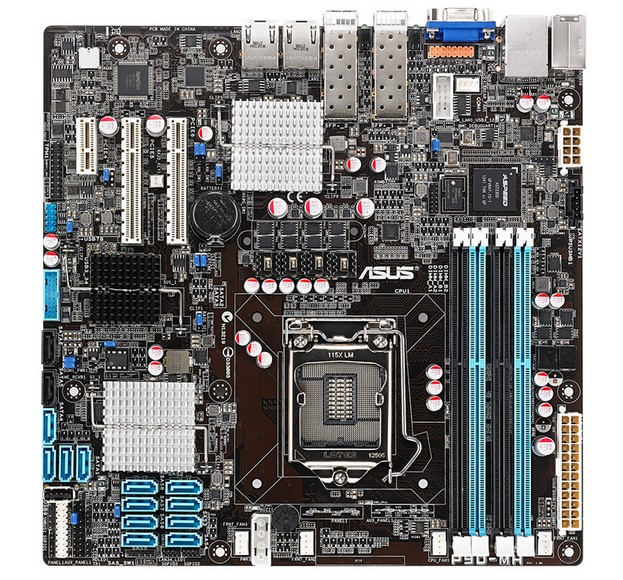

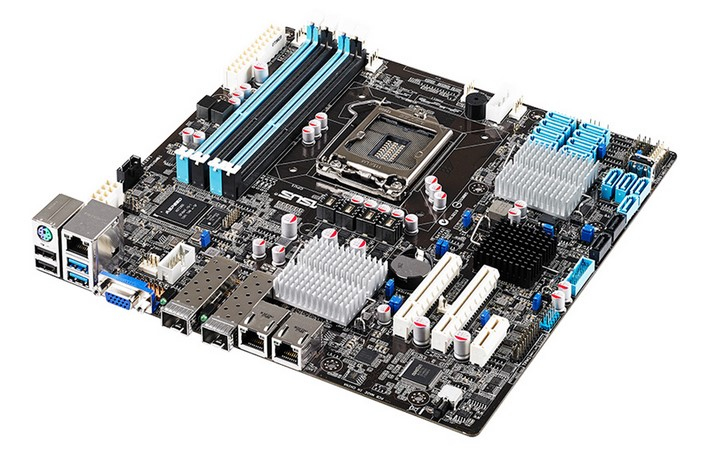

ASUS P9D-MH/SAS/10G-DUAL Intel® C224 LGA 1150 (Socket H3) micro ATX
Model P9D-MH/SAS/10G-DUALPart no. 90SB03B0-M0UAY0EAN 886227511570
49 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics card memory32 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P9D-MH/SAS/10G-DUAL
- Part numbers
- 90SB03B0-M0UAY0, 90SB03B0-M0UAY5
- EAN / UPC
- 886227511570, 4716659511571, 8862275115702
- Also known as
- ASUS P9D-MH/SAS/10G-DUAL Intel® C224 LGA 1150 (Socket H3) micro ATX
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID support | Yes |
| RAID levels | 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

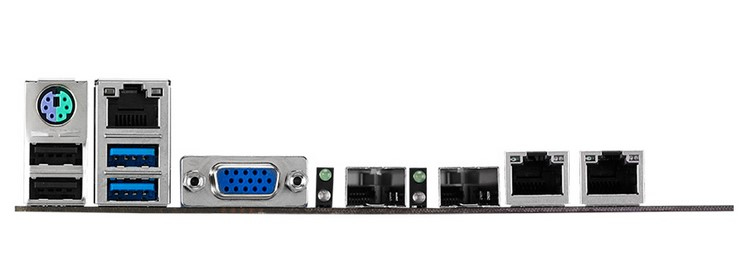

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1, 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C224 |
| Certification | CE, FCC(Class B) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 243.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM Enterprise |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 2GB, 4GB, 8GB |
| Supported UDIMM clock speeds | 1333,1600 MHz |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
| Quick installation guide | Yes |
