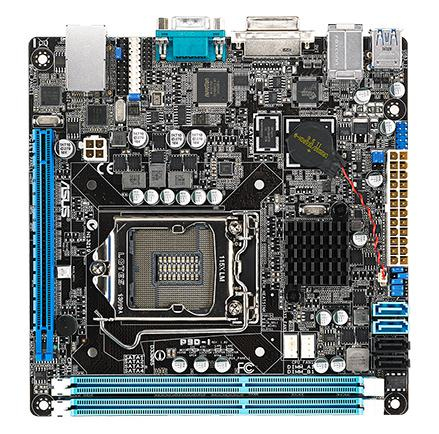

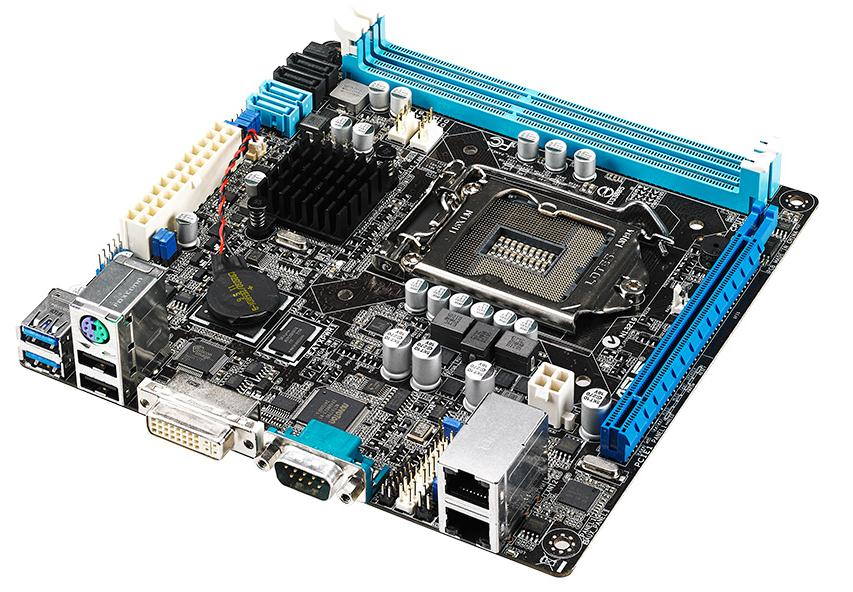

ASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITX

ASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITX

Model P9D-IPart no. 90SB03I0-M0UAY0EAN 5711045955952

44 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
P9D-I
Part numbers
90SB03I0-M0UAY0, 90SB03I0-M0UAY5
EAN / UPC
5711045955952, 4058154127346
Also known as
ASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITX

Specifications

44 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Intel Xeon seriesE3-1200
Processor number of cores supported2, 4

Memory

Supported memory typesDDR3-SDRAM
ECC сompatibilityECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2300

Internal I/O

USB 2.0 connectors1
Number of SATA III connectors2
Number of SATA II connectors2
ATX Power connector (24-pin)Yes
Number of chassis fan connectors2
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
Serial ports quantity1

Network

Ethernet LANYes
LAN controllerIntel® I210-AT
Wi-FiNo

Features

Component forServer
Motherboard form factorMini-ITX
Motherboard chipsetIntel® C222
CertificationCE, FCC

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

User guideYes

Other features

Supported UDIMM module capacity2GB, 4GB
Number of DIMM slots2
Number of processors supported1
