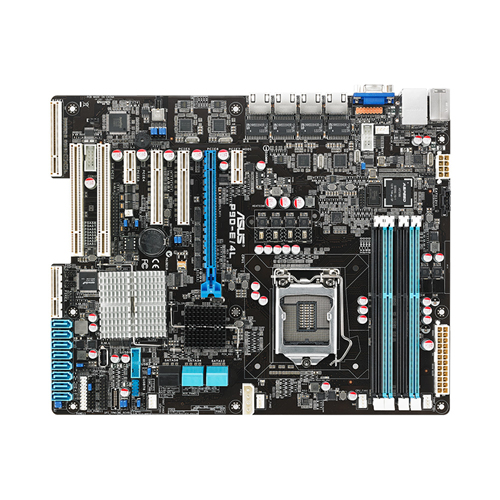

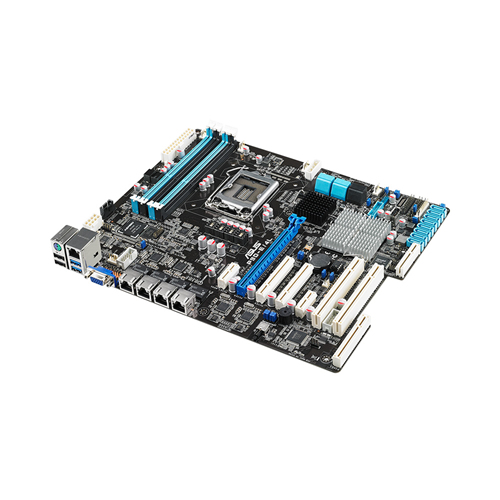

ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX

ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX

Model P9D-E/4LPart no. 90SB02Z0-M0UAY5EAN 4716659559450

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics card memory32 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card memory
32 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
P9D-E/4L
Part numbers
90SB02Z0-M0UAY5, 90SB02Z0-M0UAY0
EAN / UPC
4716659559450, 886227481552, 4716659481553, 8862274815528 +1 more
Also known as
ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX

Specifications

54 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Intel Xeon seriesE3-1200
System bus rate6 GT/s

Memory

Supported memory typesDDR3-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2300

Internal I/O

USB 2.0 connectors1
Number of SATA III connectors4
Number of SATA II connectors2
Number of SATA connectors6
ATX Power connector (24-pin)Yes
Number of chassis fan connectors5
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers2
TPM connectorYes

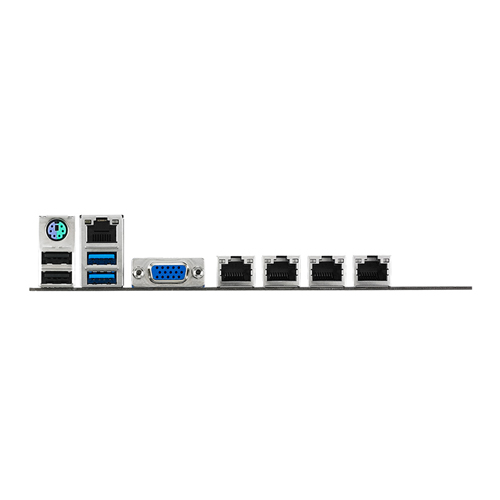

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1, 2
Ethernet LAN (RJ-45) ports5
PS/2 ports quantity1
VGA (D-Sub) ports quantity1

Network

Ethernet LANYes
LAN controllerIntel® I210-AT
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® C224
CertificationCE C-Tick FCC (B)

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots1
PCI slots2

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Width304.8 mm
Depth243.8 mm

Packaging content

Cables includedSATA
User guideYes
Bundled softwareASWM Enterprise

Other features

Supported UDIMM clock speeds1333,1600 MHz
Supported UDIMM module capacity2GB, 4GB, 8GB
Maximum UDIMM memory32 GB
Number of DIMM slots4
Number of processors supported1
