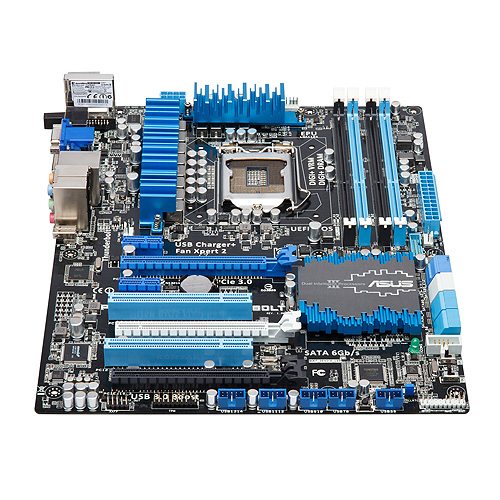

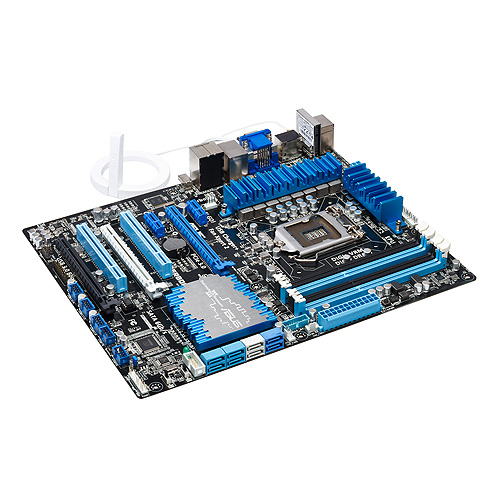

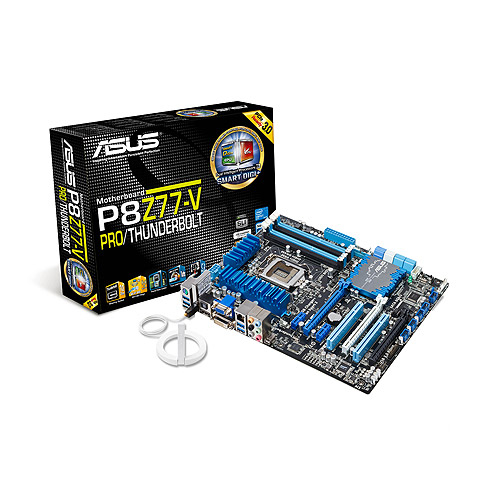

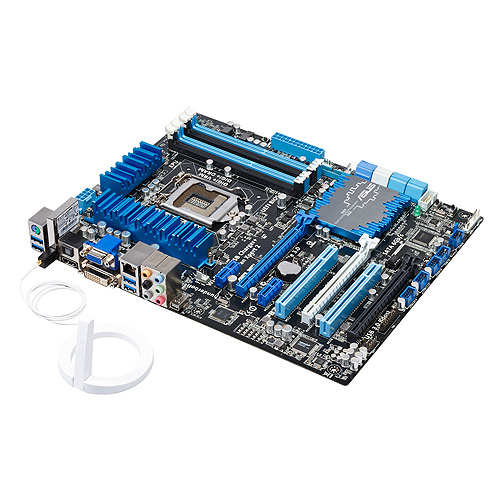

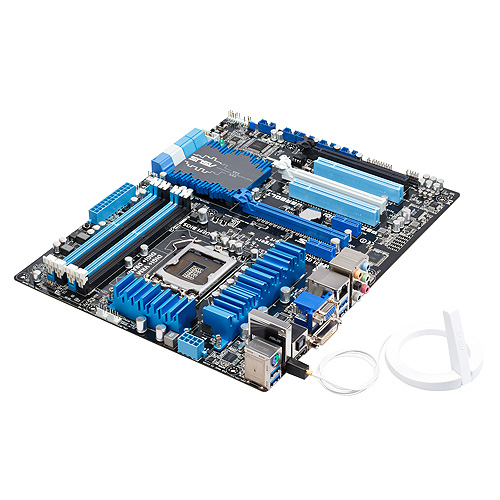

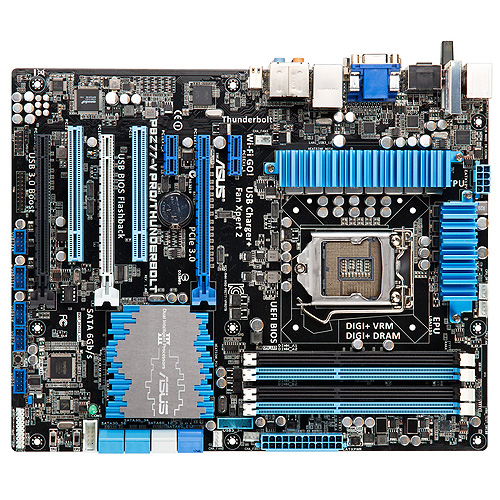

ASUS P8Z77-V PRO/THUNDERBOLT

ASUS P8Z77-V PRO/THUNDERBOLT

Model P8Z77-V PRO/THUNDERBOLTPart no. 90-MIBHS5-G0EAY0DZEAN 4719543187258

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardYes
  • USB 2.0 connectors1
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
0
Brand
ASUS
Category
Motherboard
Model
P8Z77-V PRO/THUNDERBOLT
Part numbers
90-MIBHS5-G0EAY0DZ, P8Z77-V PRO/THUNDERBOLT
EAN / UPC
4719543187258
Also known as
ASUS P8Z77-V PRO/THUNDERBOLT Intel Z77 LGA 1155 (Socket H2) ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1800,1866,2000,2133,2200,2400,2600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardYes
Maximum resolution2560 x 1600 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
Number of COM connectors1

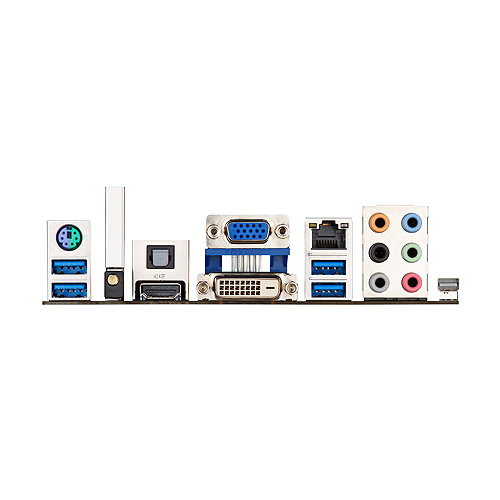

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerIntel® 82579V
Wi-FiYes
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots3
PCI slots2

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeIntel Z77
Quick installation guideYes
