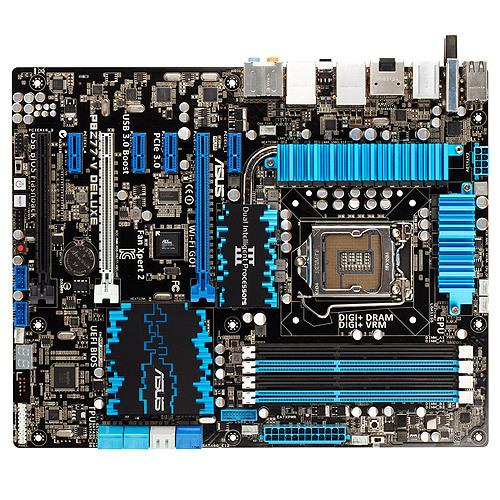

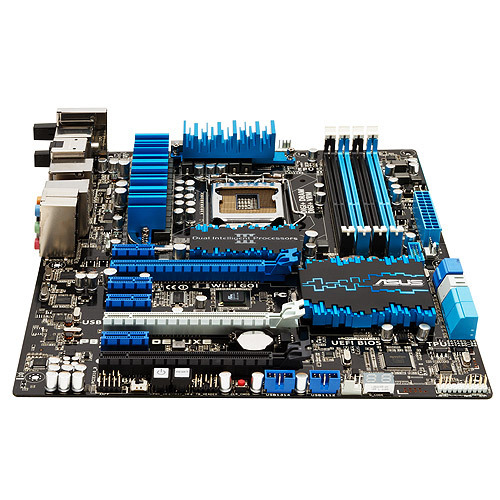

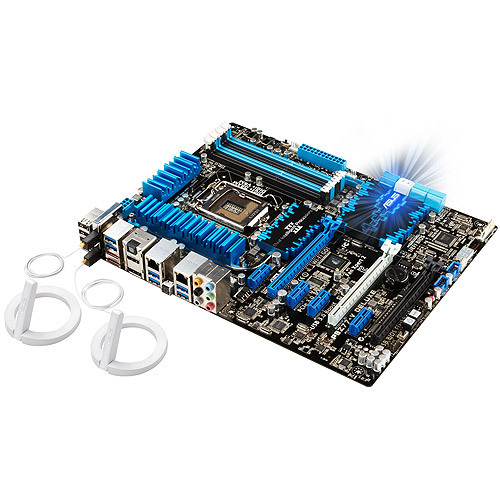

ASUS P8Z77-V DELUXE

ASUS P8Z77-V DELUXE

Model P8Z77-V DELUXEPart no. 90-MIBHR0-G0EAY0KZEAN 610839185344

88 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1696 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1696 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8Z77-V DELUXE
Part numbers
90-MIBHR0-G0EAY0KZ, P8Z77-VDELUXE
EAN / UPC
610839185344
Also known as
ASUS P8Z77-V DELUXE Intel Z77 LGA 1155 (Socket H2) ATX

Specifications

88 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
System bus rate5 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2200,2400,2600,2800 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB, 1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1696 MB
Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2560 x 1600 pixels
HDCPYes
OpenGL version3.2
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

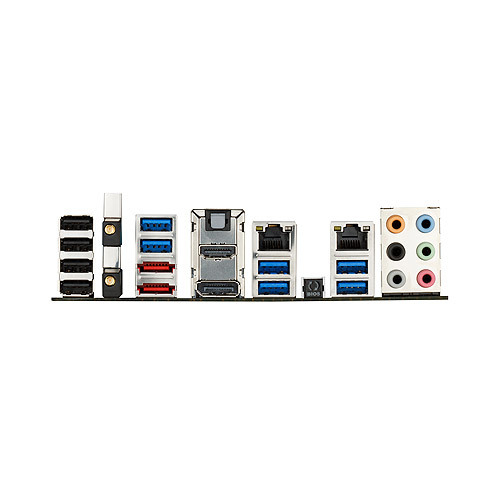

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports2
eSATA ports quantity2
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes

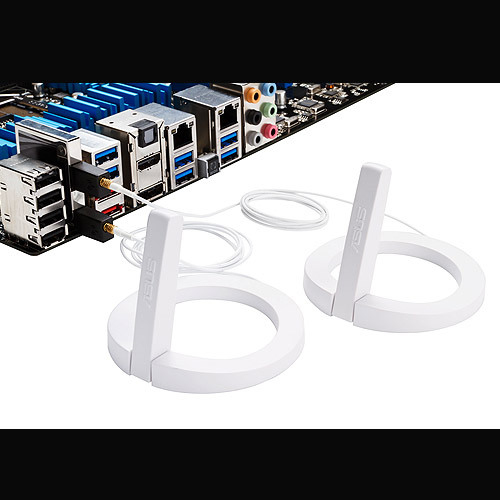

WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82579V, Realtek RTL8111F
Wake-on-LAN readyYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g
BluetoothYes
Bluetooth version4.0
Networking features2 x Gigabit LAN

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC898
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots3
PCI Express configurations1x4, 1x16, 2x8
PCI Express slots version2.0, 3.0

BIOS

BIOS typeEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Dual Link DVINo
Controller 2nd interface typeMarvell PCIe 9128/ASMedia PCIe SATA
Controller interface typeIntel Z77
BIOS switch buttonYes
Back-to-BIOS buttonYes
Quick installation guideYes
