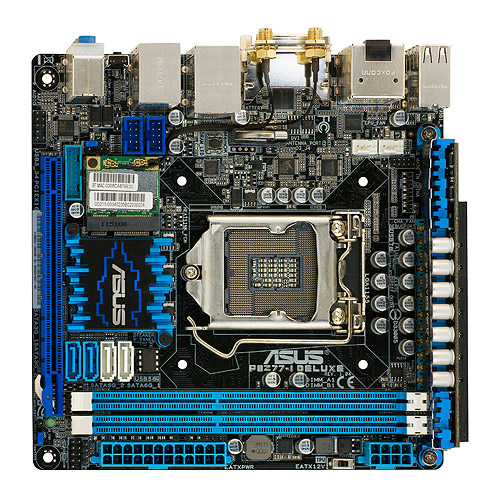

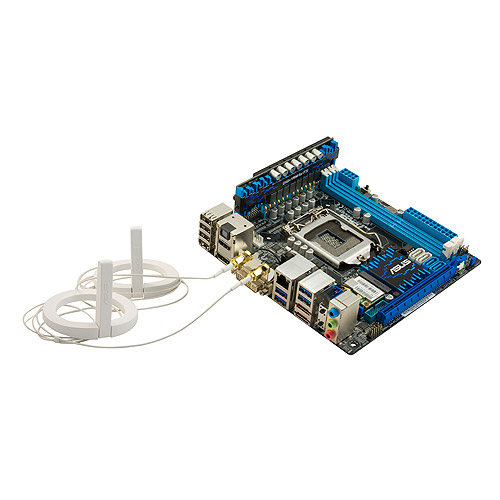

ASUS P8Z77-I DELUXE

ASUS P8Z77-I DELUXE

Model P8Z77-I DELUXEPart no. P8Z77-I-DELUXEEAN 4719543187425

88 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1696 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1696 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8Z77-I DELUXE
Part numbers
P8Z77-I-DELUXE, P8Z77-IDELUXE, 90-MIBI70-G0EAY0DZ
EAN / UPC
4719543187425, 610839185146, 4719543185148, 5053460561869 +1 more
Also known as
ASUS P8Z77-I DELUXE Intel Z77 LGA 1155 (Socket H2) mini ITX

Specifications

88 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
System bus rate5 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1800,1866,2000,2133,2200,2400 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1696 MB
Parallel processing technology supportLucidLogix Virtu
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2560 x 1600 pixels
HDCPYes
OpenGL version3.2
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

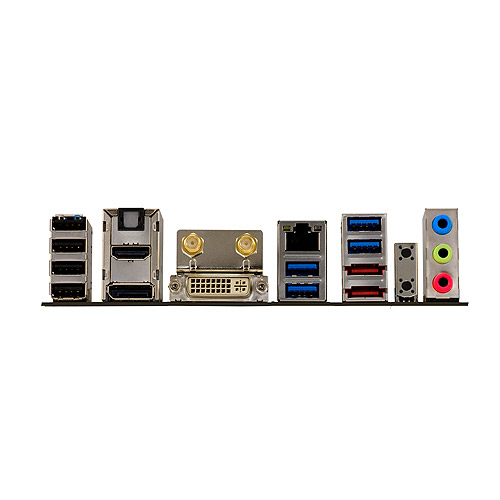

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
DVI-I ports quantity1
DisplayPorts quantity1
Headphone outputs3
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82579V
Wake-on-LAN readyYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g
BluetoothYes
Bluetooth version4.0
Networking featuresGigabit LAN

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio chipRealtek ALC898
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x16 slots1
PCI Express configurations1x16
PCI Express slots version2.0, 3.0

BIOS

BIOS typeEFI AMI
ACPI version2.0a
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Dual Link DVIYes
Controller interface typeIntel Z77
BIOS switch buttonYes
Back-to-BIOS buttonYes
Quick installation guideYes
