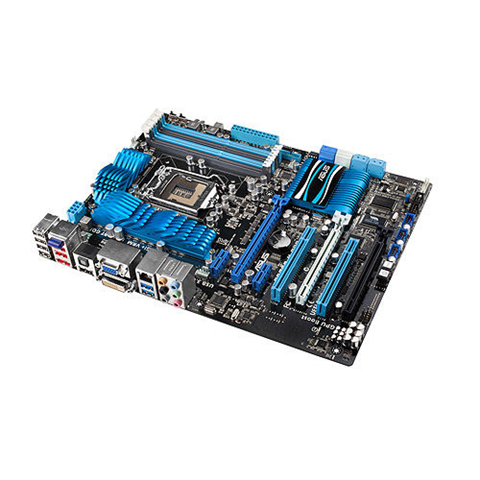

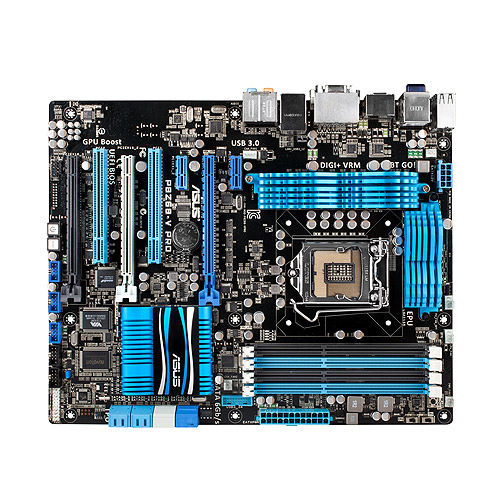

ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Model P8Z68V-PRO
63 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1748 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1748 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8Z68V-PRO
- Part number
- P8Z68V-PRO
- Also known as
- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2133,2200 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1748 MB |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, LucidLogix Virtu |
| Graphics card family | Intel |
| Maximum resolution | 2048 x 1536 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 2 |

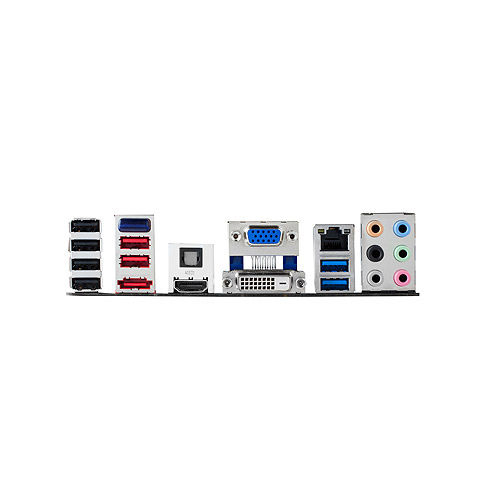

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Bluetooth version | 2.1+EDR |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z68 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Certification | RoHS |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
What people say
Reviews & ratings
ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX
All motherboard comparisons- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsASUS A55BM-PLUS AMD A55 FCH Socket FM2+ micro ATXCompare specs
- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATXCompare specs
- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsASUS P5G41TM-LX motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs

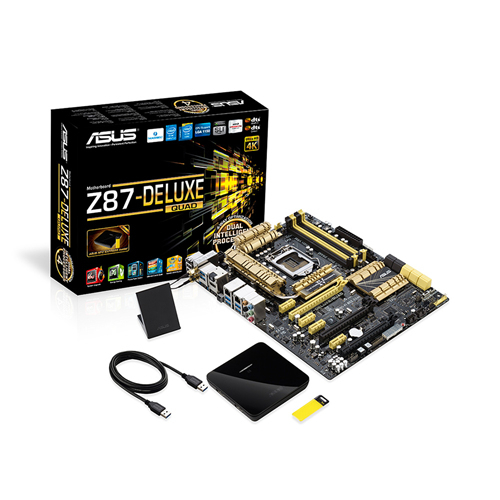

- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsASUS Z87-DELUXE/QUAD Intel® Z87 LGA 1150 (Socket H3) ATXCompare specs

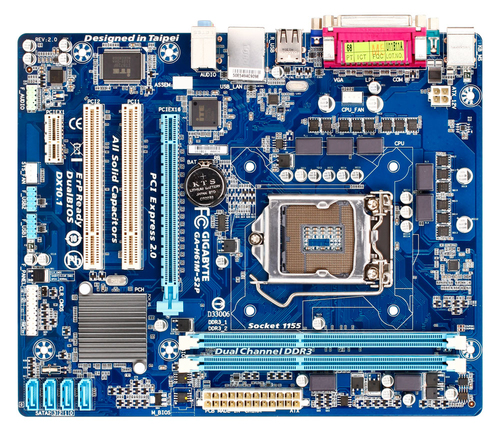

- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H61M-S2P motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-B85M-DS3H motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

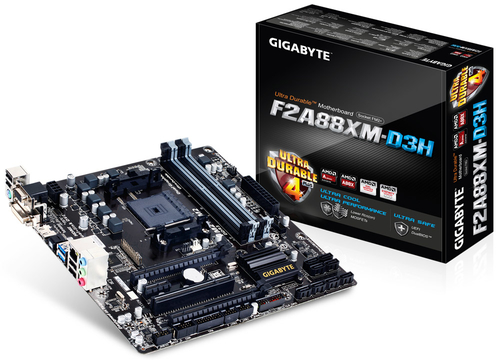

- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-F2A88XM-D3H motherboard AMD A88X Socket FM2+ micro ATXCompare specs

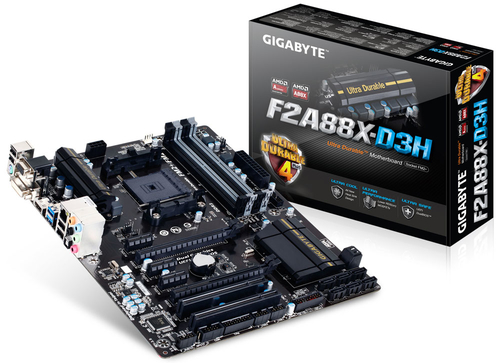

- ASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-F2A88X-D3H AMD A88X Socket FM2+ ATXCompare specs
