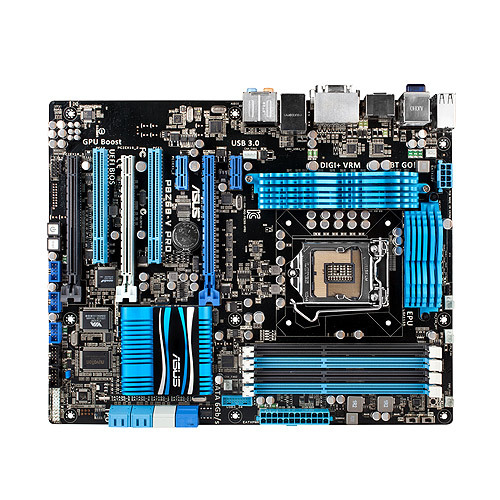

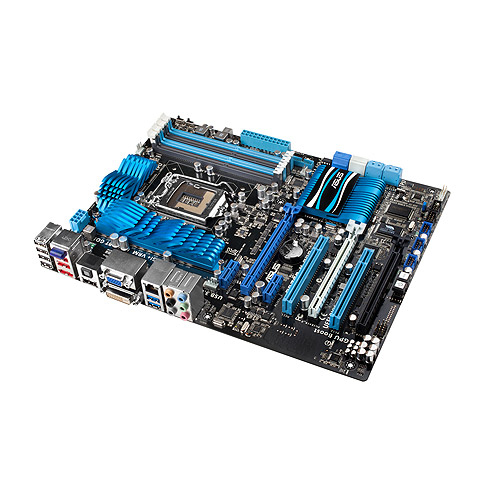

ASUS P8Z68-V PRO

ASUS P8Z68-V PRO

Model P8Z68-V PROEAN 610839180790

76 specifications
  • Memory0 GB
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1748 MB
  • USB 2.0 connectors6
See all specifications

Overview

Memory
0 GB
Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1748 MB
USB 2.0 connectors
6
Brand
ASUS
Category
Motherboard
Model
P8Z68-V PRO
Part numbers
P8Z68-V PRO, 90-MIBFI0-G0AAY00Z, 90-MIBFI0-G0EAY0KZ
EAN / UPC
610839180790, 4719543180792
Also known as
ASUS P8Z68-V PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

76 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Internal memory0 GB
Supported memory clock speeds1066,1333,1600,1866,2133,2200 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardYes

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of IEEE1394 connectors2

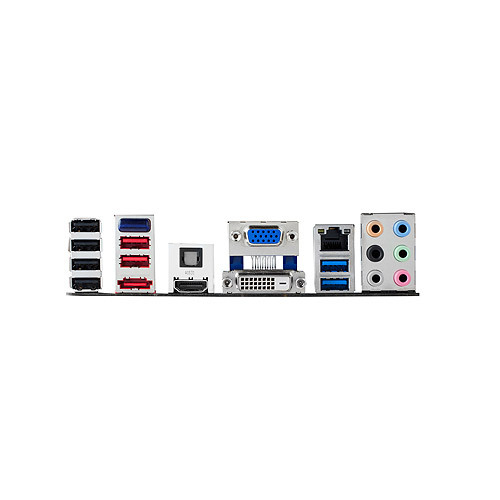

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DVI-I ports quantity0
DisplayPorts quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out0
COM ports quantity0
Parallel ports quantity0
Serial ports quantity0
WiFi-AP antenna jack0
Modem (RJ-11) ports0

Network

Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82579

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Overclocking featuresASUS C.P.R.

Expansion slots

PCI Express x1 slots2
PCI Express x4 slots1
PCI Express x8 slots0
PCI Express x16 slots2
Mini PCI Express slots0
PCI Express slots version2.0
PCI slots2
PCI-X slots0

BIOS

BIOS typeEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in portNo
Controller interface typeSATA
AGP x4 slots0
AGP x8 slots0
Special featuresBluetooth
Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
