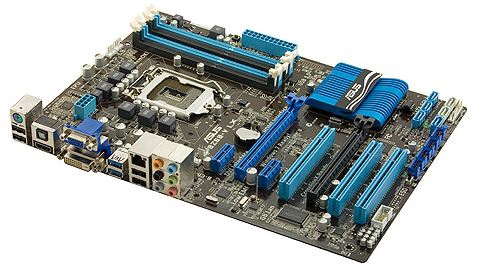

ASUS P8Z68-V LX

ASUS P8Z68-V LX

Model P8Z68-V LXEAN 4719543181911

56 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1748 MB
  • USB 2.0 connectors8
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1748 MB
USB 2.0 connectors
8
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8Z68-V LX
Part numbers
P8Z68-V LX, 90-MIB580-G0EAY0KZ, 90-MIBH80-G0EAY0KZ
EAN / UPC
4719543181911, 610839181919, 999996726523
Also known as
ASUS P8Z68-V LX motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2200 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors8
Number of SATA III connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of COM connectors1

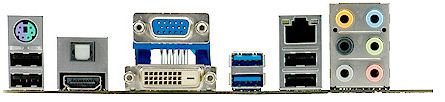

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbit/s

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel Z68
Audio chipRealtek ALC887
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth229 mm

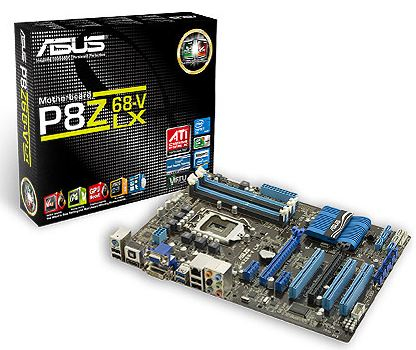

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareLucidLogix Virtu OEM

Other features

Manageability featuresWfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE
