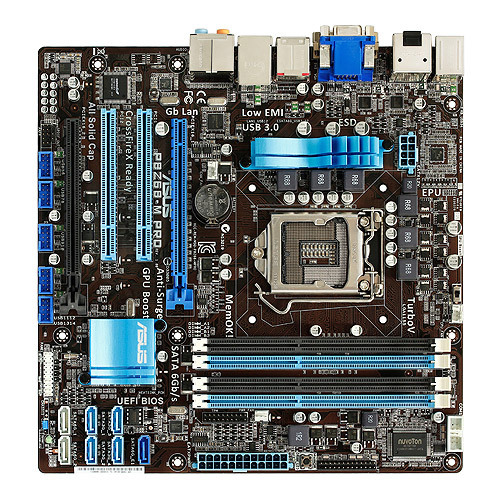

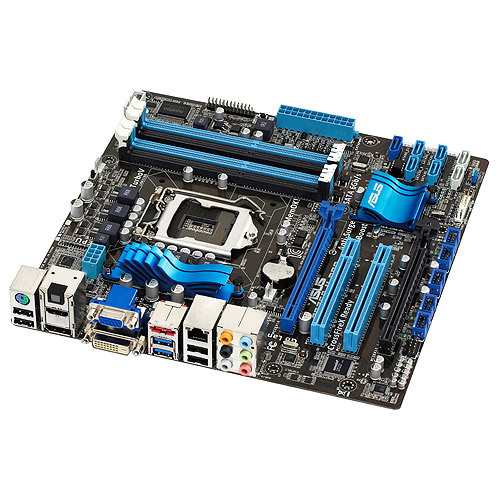

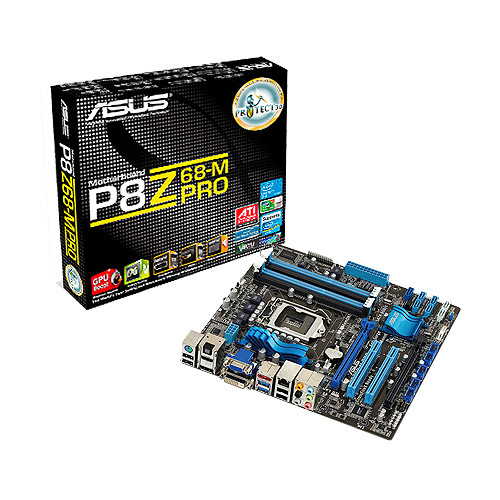

ASUS P8Z68-M PRO

ASUS P8Z68-M PRO

Model P8Z68-M PROEAN 610839182206

59 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1748 MB
  • USB 2.0 connectors5
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1748 MB
USB 2.0 connectors
5
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8Z68-M PRO
Part number
P8Z68-M PRO
EAN / UPC
610839182206, 4719543100011, 4719543182208
Also known as
ASUS P8Z68-M PRO motherboard Intel Z68 LGA 1155 (Socket H2) micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2200 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportQuad-GPU CrossFireX
On-board graphics cardYes

Internal I/O

USB 2.0 connectors5
Number of SATA III connectors3
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors1
TPM connectorYes

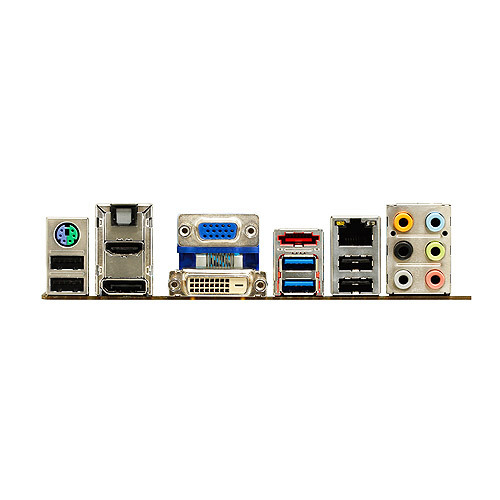

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel Z68
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 slots2
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width245 mm
Depth245 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller 2nd interface typeSATA 3Gb/s
Controller interface typeSATA 6Gb/s
Quick installation guideYes
