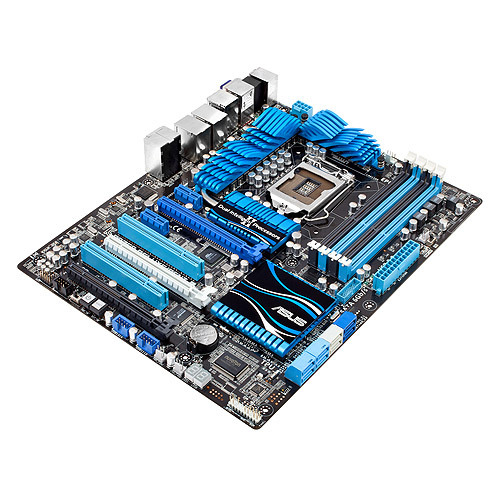

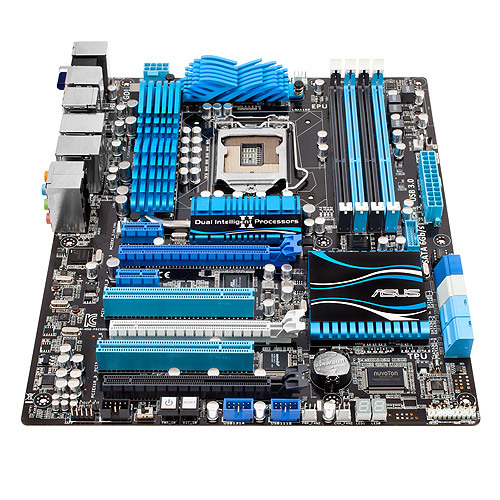

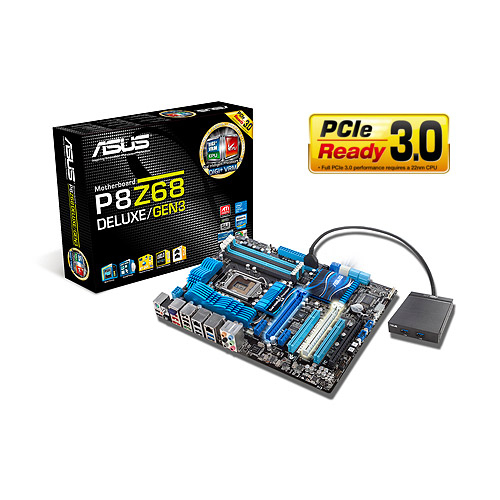

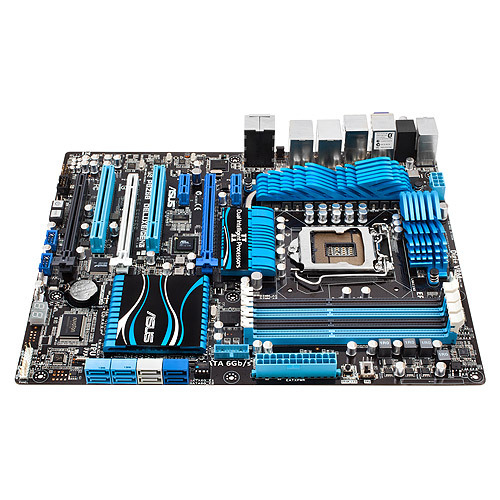

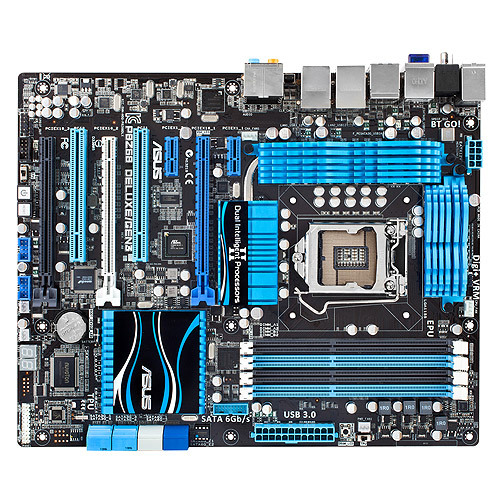

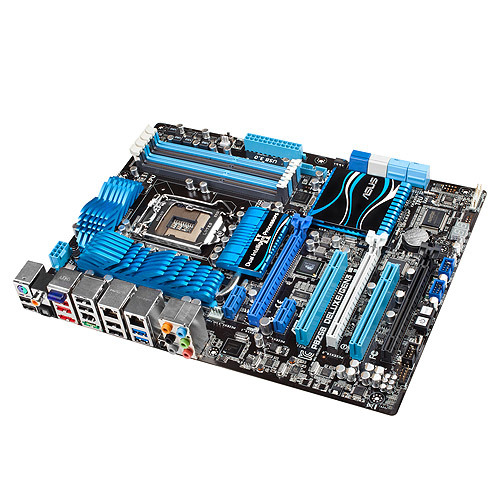

ASUS P8Z68 DELUXE/GEN3

ASUS P8Z68 DELUXE/GEN3

Model P8Z68 DELUXE/GEN3EAN 610839184460

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
P8Z68 DELUXE/GEN3
Part number
P8Z68 DELUXE/GEN3
EAN / UPC
610839184460, 4719543184462
Also known as
ASUS P8Z68 DELUXE/GEN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

62 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2200 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Number of IEEE1394 connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
BluetoothYes
Bluetooth version2.1+EDR

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots3
PCI slots2

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller 2nd interface typeMarvell PCIe 9128/JMicron JMB362
Controller interface typeIntel Z68
