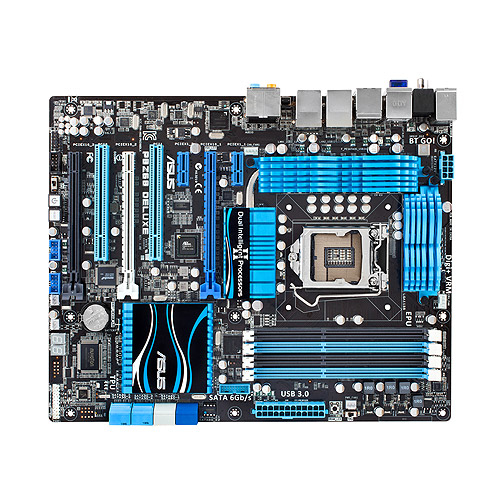

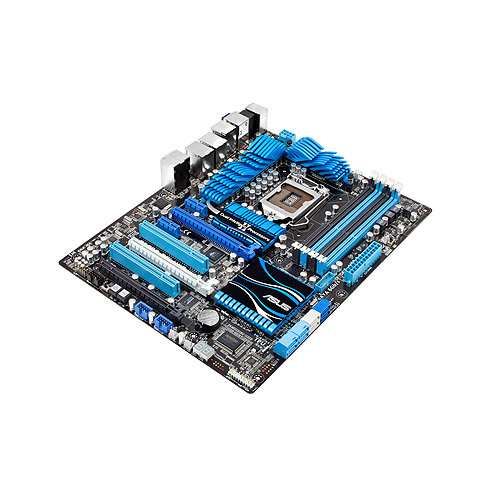

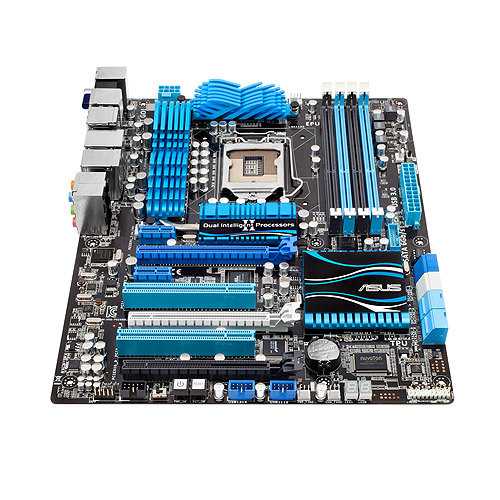

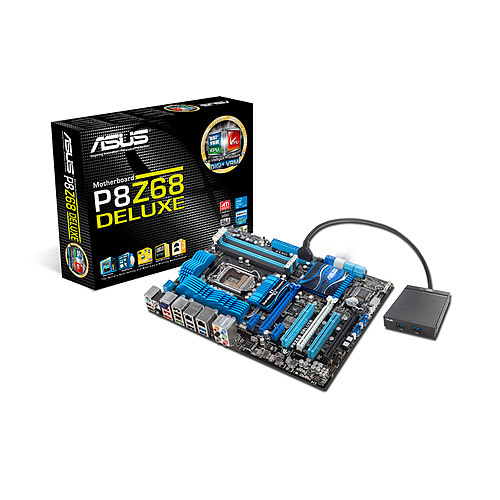

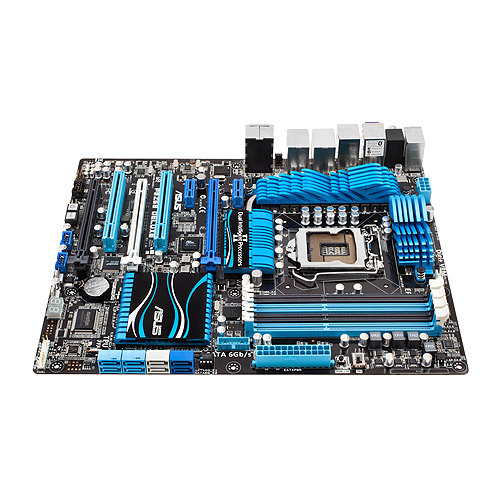

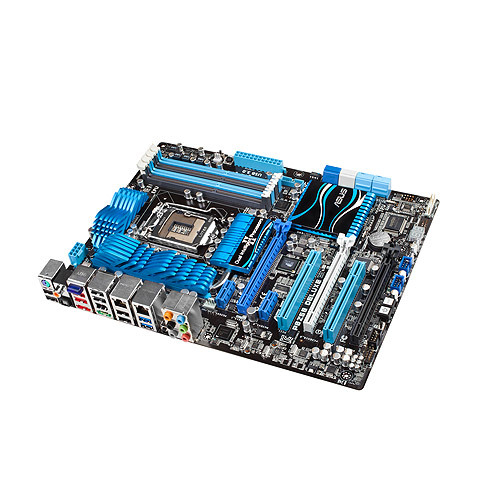

ASUS P8Z68 DELUXE

ASUS P8Z68 DELUXE

Model P8Z68 DELUXEPart no. P8Z68DELUXEEAN 610839181049

68 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • On-board graphics cardNo
  • USB 2.0 ports quantity8
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
On-board graphics card
No
USB 2.0 ports quantity
8
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8Z68 DELUXE
Part numbers
P8Z68DELUXE, 90-MIBGE0-G0AAY00Z, P8Z68
EAN / UPC
610839181049, 4719543181041
Also known as
ASUS P8Z68 DELUXE Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

68 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
System bus rate5 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1800,1866,2000,2133,2200 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of IEEE1394 connectors1

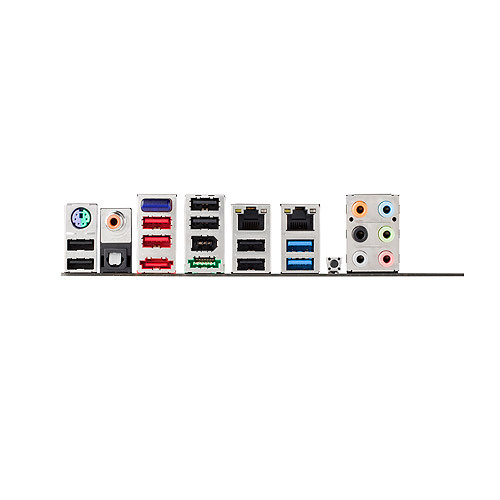

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
Wake-on-LAN readyYes
BluetoothYes
Bluetooth version2.1+EDR
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel Z68
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7 32/64-bit
Overclocking features1x MemOK!

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots3
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in portYes
Controller 2nd interface typeMarvell PCIe 9128
Controller interface typeJMicron JMB362
Quick installation guideYes
Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
